How does a wood stove insert work

Written by John Parsons — 0 Views

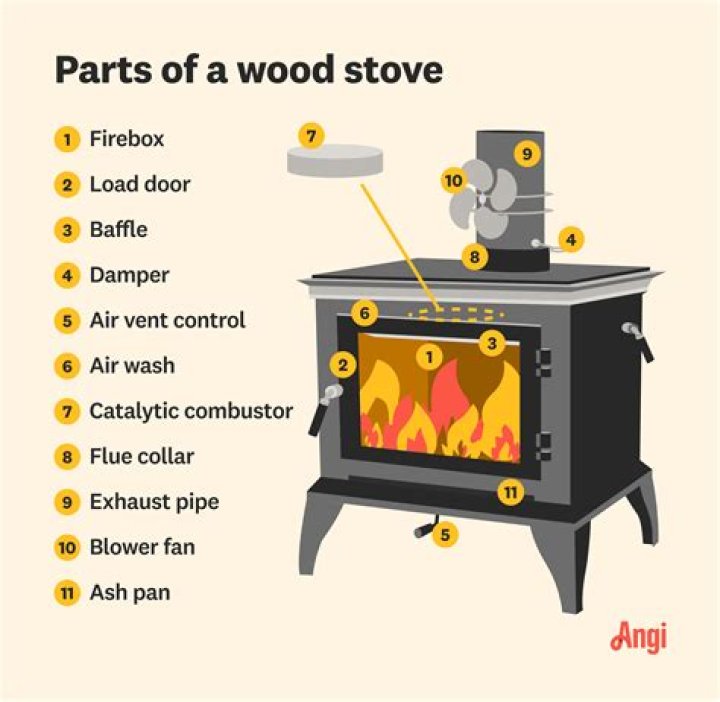

An insert is basically a fireproof box that’s surrounded by steel or cast iron and fronted by insulated glass, creating a closed combustion system. The steel or cast iron helps to trap the heat. Some inserts have a blower that pushes the hot air back into the room through front vents.

How does a wood burning stove insert work?

A wood-burning fireplace insert consists of a metal firebox installed inside your existing fireplace. Fuel is loaded into the firebox through a pair of doors that face toward the interior of the room. Oxygen for the fire is supplied through vents located below the doors or on the sides of the insert.

Do wood stove inserts need electricity?

As with freestanding wood stoves, wood fireplace inserts won’t typically require a source of electricity. If a wood insert has a blower then it will typically require an electrical supply in order to operate.

Is a wood stove insert worth it?

Are Fireplace Inserts Worth the Money? … Savings: Fireplace inserts can help you to cut down on your heating bill. A fireplace insert is not recommended as a sole use of heating but when used in conjunction with turning down your thermostat, can save you money on your heating bill.

Does a wood stove insert need a chimney liner?

When installing a fireplace insert in your existing fireplace it is now required that you install a chimney liner system to vent the appliance.

Will a wood burning insert heat my house?

Wood-burning inserts can heat anywhere from 1,000 to 3,000 sq. ft., depending on their size. Inserts are small enough to fit into most traditional masonry fireplaces.

Can I use my chimney for a wood burning stove?

Because a stove needs a way to vent the heat, smoke and gas that builds up when the wood is burned, a chimney is required for any wood stove installation. If you don’t have an existing chimney, however, this is not a problem; you can have one installed with the stove.

How do I get more heat from my fireplace insert?

  1. Hot Fires = Cleaner Fires. How hot should you run your stove, fireplace or fireplace insert to get the most heat and cleanest burn? …
  2. Use Seasoned, Dry Wood. …
  3. Keep Your Chimney Clean. …
  4. Run the Right-Sized Unit. …
  5. Add Zone Heating for More Efficiency. …
  6. Invest in a Newer Model.

Are wood burning inserts safe?

When properly installed, wood-burning inserts are very safe and are much safer than an open fire.

What is the best way to light a wood burner?
  1. Leave some ash – the most efficient way to light a wood burning stove is to leave a little bit of ash from previous fires. …
  2. Place 2-3 smaller logs on the stove bed.
  3. On top of this build a stack of 6-8 softwood kindling sticks.
  4. Then place a natural fire lighter inside.
Article first time published on

How do you stack wood in a fireplace insert?

First, you place your largest pieces of wood on the bottom of the fireplace—ends at front and back. Next, place 4-5 smaller levels of wood on top until that stack fills about ½ the height of the fireplace. The kindling will be on top, and can begin as sticks, and end with wood shavings and crumbled bits of paper.

How much is a fireplace insert?

How much does a fireplace insert cost? Most fireplace inserts and a professional installation cost about $2,000 to $4,000, depending on the state of your existing chimney and the model you select. Some electric models cost significantly less, but they offer less heat output than wood and gas fireplace inserts.

Does a wood burning stove need a blower?

Yes, you can run your fireplace without a blower. … During a power outage all wood and direct vent gas fireplaces, Inserts and stoves will continue to work safely producing radiant heat without the need for a fan.

Does fireplace insert have to be removed to clean chimney?

Fireplace inserts are heavy, often weighing more than 400 pounds. Since wood burning inserts need to be removed when the chimney is being cleaned and maintained, they can be awkward and heavy to handle. … In some cases, however, you do not have to remove the insert to clean the chimney.

Can you put a fireplace insert in an existing fireplace?

Yes, you can easily add a gas fireplace insert into your existing chimney. In fact, a fireplace insert is an appliance designed to fit into an existing fireplace. Inserts are usually cut in various sizes to suit your preferences and needs.

Can you install a fireplace insert without liner?

Inserts without full liners must be removed from the firebox before the chimney can be swept, so the sweep can have access to the areas behind the insert and to the top of the insert itself. … The best part is that the liner will pay for itself in just a few chimney sweeps!

Do wood stoves have catalytic converters?

A wood stove catalytic combustor is comparable to a catalytic converter in a car. Inside the stove, the smoky exhaust passes through a coated honeycomb (the catalyst). … These byproducts then generally burn at around 500 degrees, much lower than a non-catalytic stove, which needs a temperature of 1100 degrees.

How much is a chimney liner cost?

Chimney Liner Installation Cost For the average homeowner, having a chimney liner installed costs about $2,500. For more expensive materials, prices tend to average at $5,000 and could climb to $7,000. With an easy-to-install material like aluminum, the DIY cost of materials and equipment could be as low as $625.

Where should a wood stove be placed in a house?

Find a suitable location To heat your home properly, you should install your wood burning stove in a central location on the ground floor, where heat can circulate easily into nearby rooms. Keep in mind to put it where you’ll have room to load wood and remove ash [source: Woodstock Soapstone Company].

How much does it cost to put a wood stove in your house?

The average cost to install a wood stove is $1,200 to $4,500. A wood burning stove costs $400 to $3,500, while a wood stove insert runs $1,200 to $3,400. Wood stove installation costs $250 to $800 for labor, and installing a ventilation system or chimney costs $300 to $3,500.

Can you put a log burner in an old fireplace?

You can only fit a wood burner in your fireplace if it has a class 1 chimney. If you had an open solid fuel fire previously, this should be the case anyway! If you are replacing a gas fire, check to make sure it isn’t a class 2 or pre-cast flue, as these won’t be suitable for a stove.

Will a wood stove heat my whole house?

Wood stoves aren’t typically designed to heat an entire house but sized to warm a particular room in a home. However, installing a wood stove in the right location in a home, along with helping to circulate air between rooms, or using a stove boiler, can help to raise temperatures across a whole house.

Is a fireplace insert better than a wood stove?

If you want to maximize the heating efficiency of an existing fireplace, then an insert is the best option. But if you want to heat a home or room that doesn’t have a fireplace, then a free-standing wood stove is an excellent choice.

What's the benefit of a fireplace insert?

Fireplace inserts solve the issue of heat loss by containing everything in a sealed box. This stops drafts from coming in and from heat rising directly out the chimney. In addition a sealed box allows for a much more efficient burn – around 70-75%. This increased efficiency also creates longer burn times.

What is the safest fireplace insert?

Direct vent inserts are the ideal choice to match efficiency and safety. They burn much more efficiently than wood inserts, and they’re easier to use because there is no ash, wood, or pellets. With direct vents, the burnt gases escape through flexible vents connected to the top, and they run right up the chimney.

Why do I need a fireplace insert?

Wood fireplace inserts seal off the original firebox; there is a refractory chamber inside the insert that circulates room air around the hot firebox and back into the room. The hotter firebox burns the wood more completely than your fireplace and will and reduces pollution and chimney emissions and allergens.

Why does my fireplace not heat the room?

As the cooler air is sucked into the chimney, the heavier heated air rises to the top and is vented through the chimney along with smoke, soot and other contaminants. This continuous down draft flow of cold air is causing your home to be insufficiently heated.

Do firebacks really work?

Do firebacks really work? The effect of a fireback behind a fire is immediately tangible. A fire without a fireback hardly radiates any warmth, while a fire with a fireback very much does so. There is more radiation if the fireplace fireback is larger or thicker, and a thicker fireback retains heat longer.

How hot should I run my wood stove?

Depending on need I try to stay between 500°F & 700°F. Much higher and some of the steel will start to glow red. Your best creosote controls are if your wood is well seasoned and you have either an internal flue and/or your flue is insulated. Keep the flue gases warm and dry and you will not have a problem.

Why does my wood burner go out?

While the most common causes of log burners going out are insufficient oxygen, fuel or heat, stoves also rely on a properly functioning chimney. The purpose of this is to draw out exhaust fumes that could suffocate your fire.

How do you start a log burner without kindling?

Sticks, twigs, and dried leaves Loose bits of wood make good tinder – no surprises there. Gathering together a pile of small sticks, twigs, and dried leaves will give you a good base to build a fire.
