Electromechanical A/C Clutch Relay As low current passes through the coil, a magnetic field is created that draws the relay’s arm towards the high current circuit. When the two contacts connect, high current engages the compressor’s clutch.

How does a AC compressor relay work?

Electromechanical A/C Clutch Relay As low current passes through the coil, a magnetic field is created that draws the relay’s arm towards the high current circuit. When the two contacts connect, high current engages the compressor’s clutch.

What controls the AC compressor relay?

The relay in your car or light truck’s air conditioning system controls the compressor. By using a relay, the high-current electromagnetic compressor clutch can be controlled by a low-current switch.

How do I know if my AC compressor relay is bad?

Common signs include inconsistent cooling, not hearing a click from the compressor turning on, and no cold air.

How do I know if my AC relay is working?

1. Unplug the relay.
2. Measure for continuity between pins 30 and 87a. …
3. Measure for continuity between pins 30 and 87. …
4. Apply power (12volts) to pin 86 and ground to pin 85. …
5. Measure for continuity between pins 30 and 87a. …
6. Measure for continuity between pins 30 and 87.

What are the most common signs and symptoms of a bad relay?

• Ignition is Unresponsive. The ignition relay’s primary job is to give power to all control modules and sensors in your car needed for the engine to run. …
• Engine Stalls. …
• Fluctuating Ignition power. …
• Dead Battery after night. …
• Bad electronic smell.

Where is the AC relay switch?

In most cases, the relay is mounted on the fender well or fire wall. The relay in a typical A/C control installation has a three-wire connection. One wire is a ground, one wire is the input from the interior control panel and switches, and one wire is the power feed to the A/C compressor clutch.

What does an AC relay switch do?

The AC compressor relay is responsible for supplying power to the AC compressor and clutch. Without this relay, the AC compressor will not have power and the AC system will not function.

How much does it cost to replace AC relay?

AC Relay Replacement Cost Replacing a relay costs $80 to $300.

What would cause an AC clutch to not engage?

One of the reasons why compressors do not engage is because of a low pressure lockout, a poor ground, a bad clutch coil, an opening in the wire to the clutch coil, or simply a blown fuse. There are several ways A/C compressor clutches receive power.

Article first time published on

How does a compressor overload relay work?

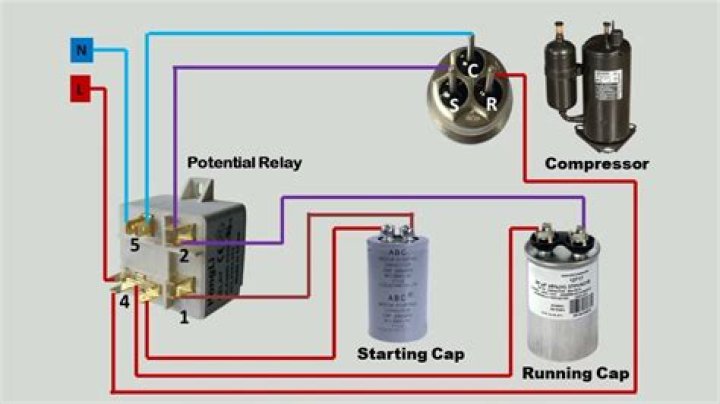

The overload relay is a protection device used in the compressor circuit on your refrigerator. Power is applied to the compressor motor windings through the overload device, and the relay is used to add the start winding in the circuit until the compressor is at running speed.

How does a starting relay work?

The Starter Relay is a device that utilizes a small amount of electrical current from the ignition switch to energize an electromagnet that operates a larger current carrying switch, which in turn triggers the operation of the Starter Motor or Starter Solenoid.

How many ohms should a compressor relay have?

Ohmmeter should indicate between 1 and 5 ohms. Measure between each terminal and the compressor body. Ohmmeter should indicate infinite resistance (1). Any other reading would indicate a shorted compressor.

How do you change an AC compressor relay?

1. Material Needed.
2. Step 1: Locate the A/C relay. The A/C relay is typically found in the underhood fuse box.
3. Materials Needed.
4. Step 1: Remove the relay. …
5. Step 2: Purchase the new relay. …
6. Step 3: Install the new relay. …
7. Step 4: Test the A/C.

What happens when a relay breaks?

If the relay fails it will cut off power to fuel pump and ignition system, which will result in a no power, and therefore no start condition.

What happens when main relay goes bad?

If the main relay is not supplying the engine computer with the power it needs, then the engine will not be able to crank and run the right way. Failing to get the main relay replaced will usually lead to the car being unusable.

Can Relays get weak?

End-of life failures are the most common type of failure, but using a relay to switch voltages and currents beyond its rated specifications can also cause them to fail.

What do I do if my AC isnt blowing cold air?

Try cleaning your air conditioner’s filter and the coils to see if improving the airflow fixes the problem. If there is ice buildup, you’ll need to run the unit with just the fan in order to melt it off. If that doesn’t get the unit blowing cold air again, it could be refrigerant levels are low (see below).

How do you bypass a compressor relay?

You’ll need to remove the metal connecter attaching it to the relay system first and then use pliers to strip some of the wire (no more than ¼ inch) on either side. Using electrical tape, connect both ends of the wire back to the relay housing so it completely bypasses the missing relay and closes the circuit.

Can you manually engage AC compressor clutch?

Unplug the single wire connector on the front side of the compressor. Take the fused jumper wire and connect its one end to that side of the wire connector that was connected to the compressor. … It will supply the battery voltage to the compressor clutch, allowing it to engage manually.

Can a bad AC compressor cause a car to not start?

A seized a/c compressor can certainly make the engine difficult to start, if not start at all. … A seized or damaged compressor can make it similar to trying to start your engine AND a seized engine combined. The a/c compressor clutch can also be a cause.

How do I engage my AC compressor clutch?

At the compressor’s front side, unplug the single wire connector, take a jumper wire and attach it to the wire that you just disconnected from the compressor. Connect the other end of the jumper’s wire to the positive terminal of the car battery. This will enable the compressor to start manually.

What causes a relay to fail?

In fact, the life of a relay is essentially determined by the life of its contacts. Degradation of contacts is caused from high in-rush currents, high- sustained currents, and from high voltage spikes. … Relays can also fail due to poor contact alignment and open coils.

Does a relay click when it's bad?

If your starter relay has gone bad, the electrical signal will never make it from the battery to the starter motor. As a result, your engine won’t turn over – no matter how many times you turn the key. A faulty relay often produces an audible clicking sound when you turn your car.

Can a relay drain your battery?

A failed ECM power relay can also cause a battery drain or dead battery. If the relay shorts it can leave power on to the computer, even when the vehicle is turned off. This will place a parasitic drain on the battery, which will eventually cause it to go dead.
