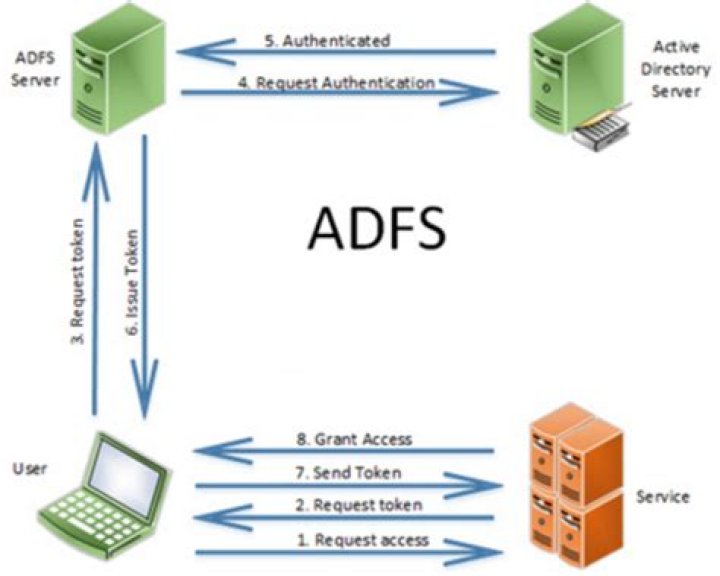

How does ADFS work? ADFS manages authentication through a proxy service hosted between AD and the target application. It uses a Federated Trust, linking ADFS and the target application to grant access to users. … The ADFS service then authenticates the user via the organization’s AD service.

How ADFS works step by step?

1. The website requests an authentication token.
2. User requests token from the ADFS server.
3. ADFS server issues token containing user’s set of claims.
4. User forwards token to the partner-company website.
5. The website grants authorization access to the user.

Does ADFS use oauth?

Starting from Windows Server 2012 R2 ADFS (Version 3.0) supports OAUTH 2.0 authorization protocol, and this post tries to clarify what this means. … ADFS started with the support of a subset of these, and increased this support over time with Windows Server 2016 and his ADFS Version 4.0.

How does ADFS communicate with Active Directory?

AD FS connects to AD as a “standard” active directory supplicant for Username/Password or Certificate Authentication, and as a Kerberos relying party for Kerberos authentication. This means that it uses a variety of protocols to authenticate clients and retrieve user information.

Does ADFS use LDAP?

ADFS provides the capability to manage one set of credentials for multiple applications and systems. ADFS does not allow other authentication protocols, such as LDAP.

Is Azure AD the same as AD FS?

Azure AD vs AD FS Although both solutions are similar, they each have their own distinctions. Azure AD has wider control over user identities outside of applications than AD FS, which makes it a more widely used and useful solution for IT organizations.

How do I connect to AD FS?

1. Open the ADFS Management Console.
2. On the right side of the console, click Add Relying Party Trust*
3. Click Start.
4. Select Enter data about the relying party manually, and click Next.
5. Type a name (such as YOUR_APP_NAME ), and click Next.

What is ADFS and ADFS Proxy?

The purpose of the ADFS proxy server is to receive and forward requests to ADFS servers that are not accessible from the internet. ADFS proxy is a reverse proxy and typically resides in your organization’s perimeter network (DMZ). The ADFS proxy plays a critical role in remote user connectivity and application access.

How do I know if ADFS is running?

1. Log on to the new federation server as an administrator.
2. On the Start screen, type Event Viewer, and then press ENTER.
3. In the details pane, double-click Applications and Services Logs, double-click AD FS Eventing, and then click Admin.

Where does ADFS store certificates?

AD FS token signing and token decrypting certificates are stored in the certificate store of the service account that runs AD FS.

Article first time published on

What is AD FS vs OAuth?

Generally, OAuth provides to clients a “secure delegated access” to server resources on behalf of a resource owner. … ADFS issues access tokens and refresh tokens in the JWT (JSON Web Token) format in response to successful authorization requests using the OAuth protocol.

How does OAuth work in AD FS?

The implicit flow is described in the OAuth 2.0 Specification. Its primary benefit is that it allows the app to get tokens from AD FS without performing a backend server credential exchange. This allows the app to sign in the user, maintain session, and get tokens to other web APIs within the client JavaScript code.

How do I enable OAuth in AD FS?

1. Select provider: OpenID Connect/OAuth 2.0.
2. A Name for the integration (you can change that later, it will be shown on the login page on the button to login with OpenID and AD FS)
3. Copy the Callback URL.
4. Paste the Client ID from the previous step in AD FS.

Does ADFS support OIDC?

ADFS is as product that allows federation based on SAML protocol (secure but heavier than OIDC) Claim based is used both in OIDC and SAML protocols. The tokens have information that the issuers claim to be correct about some entity.

Does ADFS use SAML or LDAP?

ADFS uses a claims-based access-control authorization model. This process involves authenticating users via cookies and Security Assertion Markup Language (SAML). That means ADFS is a type of Security Token Service, or STS.

Does ADFS require Active Directory?

All AD FS servers must be a joined to an AD DS domain. All AD FS servers within a farm must be deployed in a single domain.

How do I view ADFS logs?

You can generally find these logs on the ADFS server, using the Event Viewer application. Once logged into your ADFS server, you can find it under Control Panel > Administrative Tools > Event Viewer. If you do not see the Administrative Tools option, try switching the view to “Small Icons” instead.

What is the difference between SAML and ADFS?

A SAML 2.0 identity provider (IDP) can take many forms, one of which is a self-hosted Active Directory Federation Services (ADFS) server. ADFS is a service provided by Microsoft as a standard role for Windows Server that provides a web login using existing Active Directory credentials.

What replaces ADFS?

Can I replace ADFS with AD Connect Seamless Sign-On? The simple answer is ‘yes’! Microsoft released an update to Azure AD Connect in June 2017 called Seamless Single Sign-On (also known as SSO) that offers a simpler and more cost-effective SSO solution for Office 365 than ADFS.

Is Microsoft ADFS free?

Even though ADFS is a free feature on Windows Server, commissioning ADFS requires a Windows Server license and a server to host the ADFS service, which comes at a cost to the organization.

How do I check my ADFS trust?

Log on to the ADFS server which is trusted by the SharePoint ADFS server. Access AD FS 2.0 Management Console (Windows Start menu > All Programs > Administrative Tools > AD FS 2.0 Management. In AD FS 2.0 Management Console, under Trust Relationships, select Relying Party Trusts.

How do you test Adfs externally?

1. Open an Internet Explorer browser.
2. Select the relying party associated with your instance.
3. Click Continue to Sign In. If you have configured the SAML 2.0 external authentication properly, you should be automatically logged into the instance.

How do I check my Adfs health Server?

1. Step 1: Setup the ADFSToolbox module on AD FS server. …
2. Step 2: Execute the diagnostics cmdlet. …
3. Step 3: Upload the diagnostics file. …
4. Step 4: View diagnostics analysis and resolve any issues.

How do I expose ADFS Internet?

The ADFS server should not be exposed on the open internet. If users need to be able to use ADFS sign-in from outside the internal network of the organization, then the solution is to set up a web application proxy on a separate server in the DMZ.

Should ADFS server be DMZ?

For deployment in on-premises environments, we recommend a standard deployment topology consisting of one or more AD FS servers on the internal corporate network, with one or more Web Application Proxy (WAP) servers in a DMZ or extranet network.

What port does ADFS use?

In short: ADFS incoming is port 443/https and the ADFS server needs pretty much any port open to AD.

How many types of AD FS certificates are needed?

There are three types of certificates in ADFS. The “Service communications” certificate is also referred to as “SSL certification” or “Server Authentication Certificate”. This is the certificate of the ADFS server/ service itself. If there’s a farm of ADFS servers, each must have the same certificate.

What is certificate authentication in AD FS?

AD FS does user certificate authentication by default on port 49443 with the same host name as AD FS (e.g. adfs.contoso.com ). You can also configure AD FS to use port 443 (default HTTPS port) using the alternate SSL binding. However, the URL used in this configuration is certauth.

What is token signing certificate in AD FS?

Token signing certificates are standard X509 certificates that are used to securely sign all tokens that the federation server issues. Token decryption certificates are standard X509 certificates that are used to decrypt any incoming tokens. They are also published in federation metadata.

What is AD FS in Azure?

AD FS provides simplified, secured identity federation and Web single sign-on (SSO) capabilities. Federation with Azure AD or O365 enables users to authenticate using on-premises credentials and access all resources in cloud. … Deploying AD FS in Azure can help achieve the high availability required with minimal efforts.

What are AD FS endpoints?

Endpoints provide access to the federation server functionality of AD FS, such as publishing federation metadata. To verify that the AD FS server is responding to web requests, we can check the various endpoints.
