How does an armillary sphere work? Held stationary at the centre is a small brass sphere representing the Earth. About it rotate a set of rings representing the heavens – the celestial sphere – one complete revolution approximating to a day or 24 hours.

What does the armillary sphere do?

An armillary sphere is basically a skeletal celestial sphere with a model of the Earth or, later, of the Sun placed in the center. It is useful as a teaching tool and as an analog computer for solving various astronomical problems to a crude degree of accuracy.

How do you use an armillary sphere ring?

Function. Armillary spheres were used by setting them to the appropriate latitude by setting the outer meridian rings in a position perpendicular to the horizon and parallel to a line drawn from north to south.

How do you read an armillary sphere?

How to read the armillary sphere. Read the marks of the azimuth where it intersects the band of the horizon at 0 degrees (north) to determine for which degree of latitude the model is set. This information helps currents astronomers determine where one of the historical armillary spheres may have been made or used.

How does an armillary tell time?

The Armillary sundial operates basically the same way as the horizontal sundial does. Armillary sundials keep track of time more accurately than a standard garden sundial. Most Armillary sundials have a fixed gnomon aligned with the Earth’s rotational axis, as well as a shadow-receiving surface symmetrical to the axis.

How many rings does an armillary sphere have?

Although the Greek Armillary sphere was originally used as a teaching instrument, during the Era of Discovery in Europe they often took on a decorative function and became a sculptural feature, as is seen now at the university. This sphere is comprised of three rings.

Which way should an armillary face?

Find true north with your compass. Aim the axis (or gnomon) arrow of the armillary north. In the northern hemisphere, at night this arrow should point towards Polaris, the North Star.

Where is armillary sphere new world?

Location. Found on the east side of the Shattered Obelisk beneath the statue with four arms.

Why was the armillary sphere invented?

Armillary spheres were developed by the Hellenistic Greeks and were used as teaching tools already in the 3rd century BC. In larger and more precise forms they were also used as observational instruments.

How do astronomy rings work?

The instrument consists of three rings, representing the celestial equator, declination, and the meridian. It can be used as a sun dial to tell time, if the approximate latitude and season is known, or to tell latitude, if the time is known or observed (at solar noon).

Article first time published on

What is a globe with an arrow called?

An old astronomical instrument representing the ensemble of the celestial sphere and the movement of the celestial bodies. The central globe represents Earth, and the many concentric rings (armillae) the heavenly bodies. The arrow is directed towards the pole.

What is the thing that holds a globe called?

Stationary Mount. A type of mount that keeps the sphere and full meridian affixed to the globes base.

What is an astro globe?

Astronomy. This is a clear plastic celestial globe with a small terrestrial globe in its centre. The base is circular and made of wood; this has been painted yellow. The globe stands on three metal legs formed out of thick rods which have been fixed to the circular base with screws.

Are sundials accurate?

A sundial is designed to read time by the sun. This places a broad limit of two minutes on accurate time because the shadow of the gnomon cast by the sun is not sharp. Looking from earth the sun is ½° across making shadows fuzzy at the edge. The actual construction of a sundial can be very accurate.

What is the angle of a gnomon?

The gnomon of the vertical sundial makes an angle of 90°–L with the vertical (that is, an angle L with the horizontal), as shown in the side view in Figure 5. In the southern hemisphere, the vertical dial is north-facing. Unlike the equatorial dial, the hour angles are not equally spaced.

Do sundials need to be adjusted?

The style must be parallel to the axis of the Earth’s rotation for the sundial to be accurate throughout the year. … It is common for inexpensive, mass-produced decorative sundials to have incorrectly aligned gnomons, shadow lengths, and hour-lines, which cannot be adjusted to tell correct time.

Are armillary sphere still used today?

However, it was replaced in 1911 after Portugal became a Republic. You can still purchase armillary spheres today, although some of them are extremely expensive, especially if they are antiques.

How does a ring dial work?

The EQUATORIAL RING is pivoted to the equatorial points of the outer ring. … When folded out, it is perpendicular to the meridian ring, and is marked with a 12-hour scale on both sides, numbered by 1 and divided to 20 and 4 minutes. The scales extend over 180° each.

How do I know my ring size without a ring?

Wrap string or paper around the base of your finger. Mark the point where the ends meet with a pen. Measure the string or paper with a ruler (mm). Pick the closest measurement on the ring size chart to find your ring size.

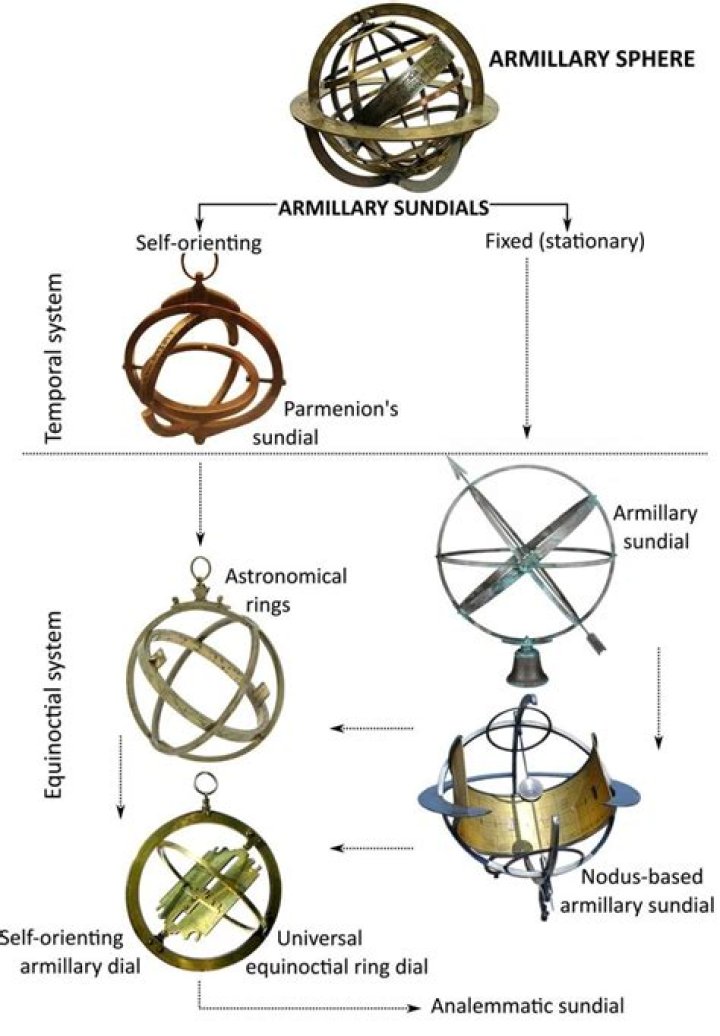

What is an armillary sphere sundial?

An armillary sundial also called an armillary sphere is a representation of both the terrestrial globe and celestial sphere. Often highly decorated, these are beautiful sundials. … The metal rings, usually made of brass or bronze, are referred to as armilla, which is Latin for bracelet.

What is a semi meridian globe?

The Semi-Meridian is the most common type of meridian found on desktop globes. It encompasses half of the globe attaching at the North and South poles.

What was a meridian ring on a globe?

Most globes have a metal ring either full circle or half (semi) circle. These are called MERIDIANS and they are generally numbered in degrees from 0º at the equator to 90º at either Pole.

Why do we need a globe?

A globe is a three-dimensional sphere used to represent the earth as a whole. It assists in the search for various nations and oceans. The spread of water and land on the earth’s surface is illustrated by the globe. It shows the right shape, location and size of the earth’s continents and oceans.
