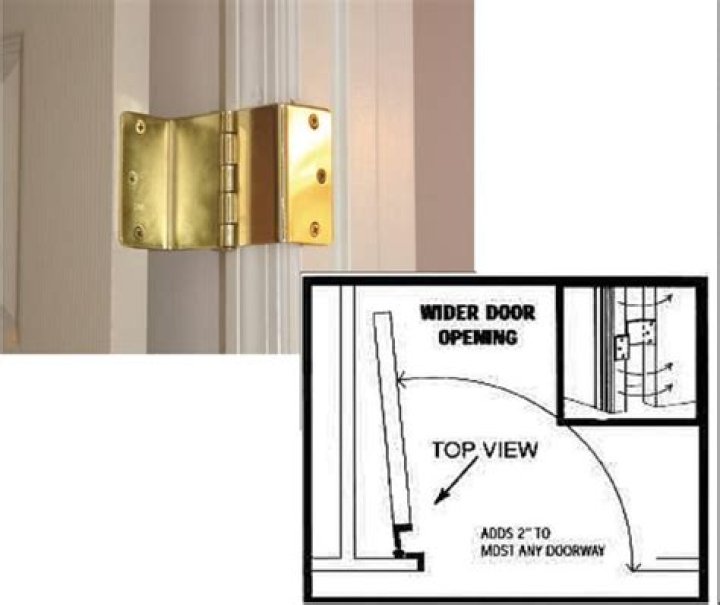

How do Offset Hinges Work? The design of offset hinges moves the hinge pin farther away from the doorjamb. When the door is opened to 90 degrees, it is set back at least two inches from the doorway, making the opening larger. … Replacement of traditional hinges with offset hinges is a simple, inexpensive solution.

Why use offset hinges?

An offset hinge allows you to widen a doorway easily and inexpensively. The hinge swings away and moves the door out of the opening, increasing the passage’s width by up to two inches in some cases.

What is an offset pivot hinge?

Offset pivot hinges allow a door to swing clear of the inside frame. You’d use one when a door needs to open out of the way, giving clear access to the entire doorway. With offset pivot hinges, you need to purchase the hinges according to the side of the door on which they will be located.

How do I know what offset my hinge is?

FOR CASE-MOUNT HINGES: Measure from the casing (B) to the back of the wood (A). This dimension is considered your offset and is used when selecting hinge offset. FOR JAMB-MOUNT HINGES: Measure from the back of the inside edge of the casing (C) to the back of the wood (A) and then add the thickness of the shutter.

What is the strongest type of hinge?

If you’re looking for door hinges for a heavy or frequently used door, mortise hinges make a stronger and more reliable choice. Mortise hinges are more popular among exterior doors, as are mortise locks.

How long should shutter hinges be?

Strap hinges can be used to install exterior shutters inside of the window opening or floated just in front. The strap length should be at least 3 inches shorter than the width of the outside shutter. Standard strap hinges are not visible when the shutters are open.

What is latch offset?

Measuring Offsets – The offset of a surfacemount latch is the distance between the surface on which you mount the strike (the jamb) and the surface on which you mount the latch (the door).

What is door offset?

Offset: When the door closes on top of the wall (the side of the door and gasket are visible when closed), it is an Offset closing door. The Offset is the distance between the front face of the wall to the front face of the door. Offset should always be measured on the hinge side.

How much weight can a pivot hinge hold?

Pivots are capable of holding doors weighing 200 pounds up to 700 pounds and some can carry as much as 1,750 pounds.

What is a swing clear hinge?

Swing clear hinges are used to swing the door out of the clear opening of the frame when the door is open approximately 95 degrees (the door will project slightly past the frame stop if open to 90 degrees). … An anchor hinge is used as the top hinge for high-use or heavy doors.

Article first time published on

How much weight can a hinge support?

Door Hinge TypeMedium FrequencyHigh FrequencyResidential duty hinge400 pounds200 poundsCommercial Duty Hinge600 pounds400 poundsHeavy duty hinge1000 pounds600 poundsCabinet Doors~ 80 pounds~ 80 pounds total

Which hinges are best for internal doors?

Ball Bearing Hinges are the most popular type of hinge and are used on internal doors. The hinge pivots on a series of small ball race bearings, offering a much smoother action. These hinges are generally made of steel or stainless steel and come in a whole host of finishes and the most common sizes are 3” and 4”.

What are the 4 styles of hinge called?

• Corner hinges. These are typically used on metal cabinets and machine covers and sit flush to the surface. …
• Lift-off hinges. …
• Offset hinges. …
• Piano hinges. …
• Leaf hinges. …
• Concealed hinges. …
• Side hinges. …
• Weld-on hinges.

How do you adjust flush mount hinges?

Open the door and hold it open with one hand. When the door is in the open position it will expose two screws on each hinge. These are slightly recessed into the body of the hinge. Use a screwdriver to turn them both clockwise one-quarter turn at a time to add tension to the internal spring.

What is a Euro hinge?

A European hinge is a concealed hinge that you can’t see when the kitchen cabinet doors are closed. … Adaptability – European hinges work with inset, full overlay and partial overlay arrangements. With special mounting and cover plates, they also work with custom door materials, such as glass and metal.

Can a door open 270 degrees?

This entertainment center hinge allows doors to open 270 degrees. The holes on the door side of the hinge and holes on the frame side of the hinge are elongated for adjustment. This 270 degree entertainment center hinge is made for a 3/4″ thick side panel and a 3/4″ thick door. Hinge measures 2-3/4″ tall.

What's a 270 degree rotation?

270 Degree Rotation When rotating a point 270 degrees counterclockwise about the origin our point A(x,y) becomes A‘(y,-x). This means, we switch x and y and make x negative. 270 Counterclockwise Rotation.

What is a pie cut corner hinge?

Overview. Generic European style hinge designed for corner cabinets. Also known as “Pie Cut” cabinet doors. This hinge attaches the middle door to the outer door. A pie cut corner door typically uses seperate 170 degree European style hinges to attach the two door assembly to the cabinet frame.

What are butterfly hinges?

A butterfly hinge is a variation of the strap hinge, featuring leaf plates that are decoratively shaped in a manner that resembles the wings of a butterfly. They are always surface-mounted. Often, they are made of brass or another decorative metal and are most often used on ornamental boxes or cabinets.

What are storm proof hinges?

Storm Proof Window Hinges help minimise the gap between the sash jamb, to ensure windows fit over and up to the frame, avoiding weather boards.

How do you raise a storefront door?

On top of every storefront door there is a single screw that allows you to adjust the position of the door slightly up or down. To raise the door tighten the screw clockwise. To drop the door loosen the screw by turning counterclockwise.

How do you measure a door backset?

The backset is the distance from the edge of the door to the center of the 2-1/8-inch bore hole. In the United States, there are two common backsets for residential door locks: 2 3/8 inches and 2 3/4 inches. Pack your locks with a 2-3/8-inch or 2-3/4-inch latch, depending on which backset you specify.

Can you put shutters on only one window?

A good rule of thumb that we advise to customers is that if you install shutters in one window within a room, you should consider using them in every window of THAT room.

What do you do if your windows are too close for shutters?

1. Attach a large (double size) shutter, the size of the window on each end.
2. Mount double shutters at each end. …
3. Mount four shutters in the manner you would normally if the window were not Ganged.

Which direction do shutters go?

The correct installation of a fixed louver shutter should have the shutter louvers facing down and towards the back when the shutter is open (when it is not covering the window).

How do I know what size hinge I need?

In general, you’ll want to use one hinge for every 30 inches of door height. For example: Use two hinges for doors up to 60 inches tall. Use three hinges if the door is between 60 and 90 inches tall.

What is a 1/2 inch overlay hinge?

1/2″ overlay hinges are the most common overlay of cabinet hinge. These are used in face frame cabinets where the door covers a 1/2″ of the face frame all the way around the cabinet door. … These are used in face frame cabinets where the door covers a 1/2″ of the face frame all the way around the cabinet door.

How much larger should a cabinet door be than the opening?

Add space for door overlay: Cabinet doors for framed cabinets must be larger than the cabinet opening to look right and close properly. We refer to this as an “overlay”. The industry standard for most cabinet doors is a 1/2 inch overlay around the cabinet door.

Can you hinge a pivot door?

They’re typically offset, which means the pivot point is actually a few inches in from the door frame, allowing the door to quite literally pivot open (technically, there is no hinge on a pivot door).

How much weight can a soft close hinge hold?

Description. Heavy duty concealed hinge eliminates the need to use 5 or more standard euro hinges in cabinets or furniture. This reduces installation cost and time, and provides a better overall aesthetic. 2 hinges hold 55 lbs (25 kg) and 3 hinges hold up to 88 lbs (40 kg).

How do you measure hinge width?

Use your ruler or measuring tape to measure the width from one leaf edge to the pin in the middle of the hinge. Then multiply that figure by two; the width of a hinge is the sum of two leaf widths.
