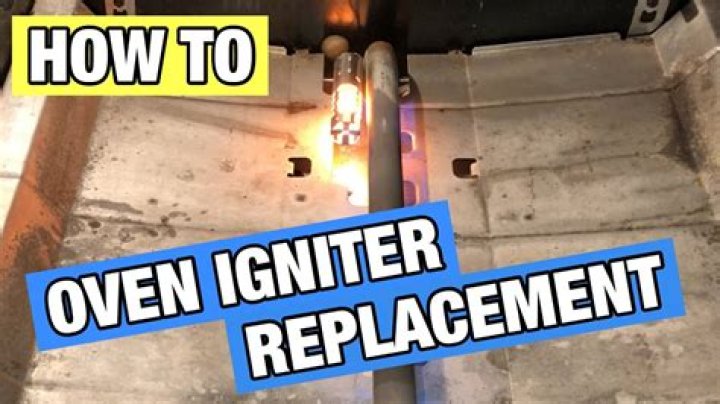

The hot surface igniter is used in modern gas oven burners to open the gas valve and to ignite the gas. As the igniter draws electric current it will heat to a high temperature and glow, as well as cause the bi metal in the oven safety valve to warp and open the valve releasing the gas to be ignited.

How do I know if my oven ignitor is bad?

You likely will not be able to tell if the igniter is bad by just looking at it. Turn the oven on and then open the broiler drawer. If the glow bar igniter is getting voltage it will glow unless it is broken. If it’s weak, it will glow but it will not pull enough current to open the gas valve.

How do you bypass an oven igniter?

1. Unplug the stove’s electrical cord from the wall outlet or turn off the circuit breaker that supplies it with power. …
2. Remove the burner grates and lift the stove top if you wish to use a burner. …
3. Open the oven door and remove the racks if you wish to use the oven.

How does a gas oven spark igniter work?

The spark produced is used to ignite a low-pressure gas flow to a flame pilot light that remains lit until the oven’s thermostatic control is turned off. The pilot flame remains lit to ignite the gas flowing through the burner bar as the oven cycles on and off to keep it at the preselected temperature.

Can you manually ignite a gas oven?

If you don’t have the owner’s manual, open the oven door and look in the bottom of the oven for a small hole marked “Pilot Light” or something similar. … If the oven is designed to be manually lit for each use, turn the temperature dial on slowly. The gas should ignite. Remove your hand and the match immediately.

Are all oven igniters the same?

There are pretty much, only two igniters used in all ovens, this square Norton style, and a round Carborundum style. It seems that this is, by far, the most common problem, and just because an igniter glows, doesn’t mean that the current it allows to pass to the gas valve, is addequate to open it.

How long does an igniter last?

Most ignitors last about seven years. Keep reading to learn how you can tell if your furnace problem is a faulty ignitor.

Why does my gas stove igniter keeps clicking?

Another common cause of igniters clicking constantly is excess moisture in the area. … This moisture can seep into the area where the igniter lives and cause it to click when the stove or cooktop is off. Moisture on the switches can also be the culprit. Another cause of moisture is aggressive cleaning.

How long should it take a gas oven to ignite?

Answer: Gas oven burners ignite in approximately 30 to 45 seconds; the infrared broil burner will light within 45 seconds. If it takes much longer than this to ignite, the burner may be experiencing delayed ignition, refer to Gas Oven Delayed Ignition for more information.

How long does a gas oven igniter last?

Even after the burner lights up, the HSI is on the entire oven cycle. If you do a lot of baking you can expect to live two to three years.

Article first time published on

Why does my gas oven take so long to light?

A: The likely issue is a weak or failing oven igniter. Heat resistance igniters can lose resistance as they get hot over time and won’t send enough resistance to the gas valve to allow the main valve to come on. This intermittent starting can happen when the igniter is getting weak and before it goes completely out.

Do gas ovens work without electricity?

A gas oven will work without electricity because the gas is separate from the electricity. There may be modern gas ovens that have electric components that control the passage of gas but older gas ovens only operate by valves. They do not change if you lose your electricity.

How much does it cost to replace an oven igniter?

The cost to replace your gas stove igniter is between $150 and $300. You might need a replacement if your stovetop won’t stop clicking, the pilot light goes out or your burner won’t light.

Why does my gas oven not ignite?

Whether it’s grease buildup or food crumbs, one of the most common causes for a gas burner that has trouble igniting is debris blocking gas flow to the igniter. The fix: Begin by removing the grate covering the troubled burner. … Reinstall the burner, cover and the grill, and try igniting the burner once more.

Do you smell gas when pilot light goes?

Pilot light safety is important to prevent fire or poisoning from natural gas the pilot burns. … If you smell the “rotten egg” odor of escaping gas, check to see if the pilot light is extinguished. If it is not, turn the gas valve to the “off” position and call your gas company.

How do you ignite a gas stove with a lighter?

Most gas stoves can be lit with a match or lighter if your igniter is broken. To ignite your match or lighter, turn the gas dial to medium. Hold the match or lighter close to the burner and wait for it to ignite. Remove your hand as soon as possible.

Do all gas ovens have a pilot light?

Most newer gas ranges and ovens don’t have pilot lights. Instead, the gas is ignited by an electric ignition system. In this type of system, an element becomes hot and glows like the filament in a lightbulb when an electric current passes through it. The heat from the filament lights the gas.

Do oven igniters wear out?

However, a gas oven is not immortal. Over time, every appliance suffers from wear with regular use, and parts will go out. … Not only will a faulty igniter mean your oven will not produce any flame or heat, but it could mean that it continues to release natural gas as it tries to ignite.

Can you clean a oven igniter?

The igniter can be cleaned like the burners on your stove top by removing it and scrubbing it with a toothbrush. Since oven cleaning often does not involve cleaning the igniter, it should be replaced if the dirt is too bad.

Does oven igniter stay on?

Yes, it is normal for the oven igniter to stay on continuously while the burner is operating. The igniter will turn off once the oven reaches the set temperature and then it will come back on and stay on again when needed to ignite the burner to maintain the oven set temperature.

Are oven ignitors interchangeable?

They aren’t interchangeable. If your range uses square ignitors, you can only replace it with another square ignitor. All square ignitors have the same current draw, and all round ignitors have the same draw.

How many amps does an oven ignitor draw?

ANSWER Jerry, The oven igniter should draw 3.2 to 3.6 amps. You could also test voltage to the oven safety valve which should be 3.2 to 3.6 vac getting to it.

Do all stoves have igniters?

Locate the malfunctioning igniter on the stove. Sealed gas burners will have an igniter visible on the top of the stove. Standard gas stoves require you to lift the stove top upward to access the ignitors underneath; the top has hinges and a propping post to keep the stove open for troubleshooting.

Can leaving a gas stove on cause an explosion?

If your stove has electronic/spark ignition, leave the house and call 911, as many ranges will spark when you turn the knob to the “OFF” position, which could potentially cause an explosion.

Does a gas oven make noise?

Normal Noises Often when you use a gas oven you can hear the gas running to the unit during the operation. … You may also hear a clicking noise as the ignition lights the flame. Afterward, you may hear a hissing or whooshing sound as the oven burner cycles on and off to regulate the temperature of the oven cavity.

Why does my oven clicks when preheating?

When using the oven on your appliance, you might notice a clicking sound while the oven is in use. What you are hearing are the control relays cycling the bake and broil elements on and off to accurately maintain oven temperature. This is a normal sound.

Why is my gas oven making a clicking noise?

The clicking sound is caused by the spark electrode on a gas stove creating small sparks. During normal function, these sparks meet with released gas and ignite to create a flame. When it clicks outside of ignition, it may or may not be releasing sparks. dangerous, just noisy.

Why does my gas stove work but not my oven?

In most common cases, this specific issue means that the broil element and the baking element remain functional. However, there’s probably a blown internal fuse. If it’s not the fuse, it could be the temperature sensor, broken or frayed wiring, or even a breakdown of the oven control board.

Why does my oven keep reigniting?

Why is this happening? In most cases, it is because the igniter in your oven is actually dirty. Grease and grime can build up on the igniter over time. It is supposed to heat up to light the gas, but when it has to heat up through a great deal of dirt, it does not light as quickly, allowing the gas to build up .

Why doesn't my gas stove work when the power is out?

If your gas stove won’t light after power outage it’s possible the outage caused a fuse to blow. It may have also tripped the stove’s breaker in your home’s circuit breaker box. When this happens, your stove won’t receive any electricity to fuel the igniter even after electricity to the house is restored.

Is it cheaper to run a gas or electric oven?

Gas ovens are usually cheaper to run than electric ovens, due to the fact that gas (as a utility) is cheaper. According to Which?, a gas oven costs an average of £17 a year to use, whereas an electric oven costs £40.
