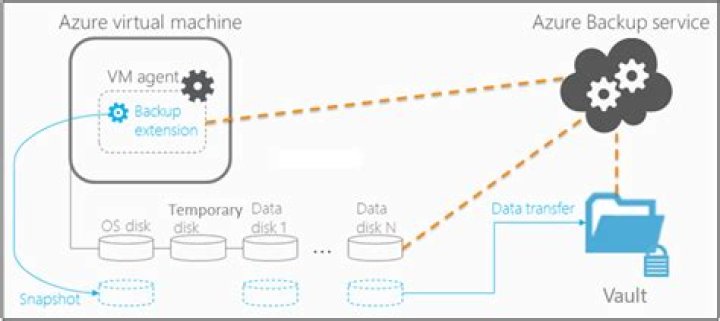

Azure Backup runs jobs based on either a built-in default policy or one that each user creates. When a backup job starts, Azure instructs the VM extension to take a Volume Shadow Copy Service full snapshot of the virtual machine’s disks, guaranteeing an application-consistent snapshot without shutting down the VM.

How are Azure VMs backed?

The backup is optimized by backing up each VM disk in parallel. For each disk that’s being backed up, Azure Backup reads the blocks on the disk and identifies and transfers only the data blocks that changed (the delta) since the previous backup. Snapshot data might not be immediately copied to the vault.

How many times a day can an Azure virtual machine be backed up?

Yes. You can back up Windows Server or Windows machines up to three times a day. You can set the scheduling policy to daily or weekly schedules. You can back up DPM up to twice a day.

How are Azure backups stored?

Backups are stored in a Recovery Services vault with built-in management of recovery points. Configuration and scalability are simple, backups are optimized, and you can easily restore as needed.

Does Azure VM backup include all disks?

Azure Backup supports backing up all the disks (operating system and data) in a VM together using the virtual machine backup solution. … Each recovery point contains only the disks that are included in the backup operation.

How do I backup my virtual machine?

1. Ensure your virtual machine is in a powered off state.
2. Locate the virtual machine folder. …
3. Right-click the virtual machine folder and click Copy.
4. Navigate to the folder in which you want to store the backup, right-click anywhere within the folder, and click Paste.

Which virtual machines can you back up by using Azure backup?

Which virtual machines can you back up by using Azure Backup? Azure Backup supports backup of 64-bit Windows server operating system from Windows Server 2008. Azure Backup supports backup of 64-bit Windows 10 operating system. Azure Backup supports backup of 64-bit Ubuntu Server operating system from Ubuntu 12.04.

How do backups work?

The idea of a backup is to make a copy for safekeeping. That copy must be stored in a location different from where the original files are kept. If they are stored on the same hardware and that hardware is damaged, the backup copies might be lost along with the originals.

How do I back up my Azure VM?

1. Sign in to the Azure portal.
2. Select All services and in the Filter, type Virtual machines, and then select Virtual machines.
3. From the list of VMs, select the VM you want to back up.
4. On the VM menu, select Backup.
5. In Recovery Services vault, do the following:

How do I restore a VM backup in Azure?

1. Navigate to Backup center in the Azure portal and click Restore from the Overview tab.
2. Select Azure Virtual machines as the Datasource type, and then select a Backup instance.
3. Select a VM and click Continue.
4. In the next screen that appears, select a restore point to use for the recovery.

Article first time published on

Is an unsupported workload for Azure backup?

Explanation: Up to 2000 datasources across all workloads (like Azure VMs, SQL Server VM, MABS Servers, and so on) can be protected in a single vault. … Up to 50 MABS servers can be registered in a single vault. Maximum size of an individual data source is 54,400 GB.

What is retention period in Azure backup?

By default an on-demand backup is retained for 30 days if triggered from Azure portal.

How long are Azure backups retained?

Azure Virtual Machine backup policy supports a minimum retention range from seven days up to 9999 days. Any modification to an existing VM backup policy with less than seven days will require an update to meet the minimum retention range of seven days.

How often is Azure backed up?

Azure VMs: Once a day. Machines protected by DPM/MABS: Twice a day. Machines backed up directly by using the MARS agent: Three times a day. Backup is within a region.

Does Azure Backup affect VM performance?

Cause: Backup agent running on an Azure virtual machine If you’re running the Backup agent on a VM, performance will be slower than when you run it on a physical machine. … However, you can optimize the performance by switching the data drives that are being backed up to Azure Premium Storage.

What are the advantages of Azure Backup?

Azure Backup is a cloud-based solution for simple, secure, and cost-effective data backup services. It can be used to backup data from different platforms to Azure. It eliminates the need for additional infrastructure for backing up virtual machines and SQL servers and maintains data and application consistency.

How do I set up Azure backups?

1. In the Azure portal, select Create a resource.
2. In Azure Marketplace, select Compute, and then select a VM image. …
3. Set up the VM in accordance with the Windows or Linux instructions.
4. On the Management tab, in Enable backup, select On.
5. Azure Backup backups to a Recovery Services vault.

Is Azure VM backup encrypted?

Azure Backup supports VMs encrypted using standalone keys. Any key that’s a part of a certificate used to encrypt a VM isn’t currently supported.

What is difference between snapshot and backup in Azure?

The biggest difference is that, we can use Azure Backup to restore VM directly. If we use snapshot and want to restore VM, we have to use snapshot to create OSdisk and then use this OSdisk to create new VM. By the way, we can set backup jobs in Azure Backup, so Azure can run backup by backup policy.

Is a VM snapshot a backup?

VM snapshots are a simple and effective way to roll a virtual machine back to a point in time. Mistakenly, some still view snapshots as a backup because they allow a VM to return to a previous state. Snapshots are not backups. It is dangerous to consider VM snapshots an actual backup copy of data.

Can you export a VM while it is running?

A remarkably little known feature in Windows Sever 2012 R2 (and Windows 8.1) is the ability to export one or multiple running virtual machines. You just select right click in the Hyper-V manager and select Export from the context menu and follow the wizard to select an export location. Easy.

How do I backup a VMware virtual machine to an external hard drive?

Browse to the virtual-machine location, such as the default your home directory /Virtual Machines folder, and select the virtual machine to copy. Right-click and select Copy ” virtual machine name “. Open the external media in the Finder, right-click and select Paste Item.

What is the difference between Azure backup and site recovery?

Backup ensures that your data is safe and recoverable while Site Recovery keeps your workloads available when/if an outage occurs.

Is Azure backup incremental?

Microsoft Azure Backup leverages Incremental Backup technology, providing you secure, pay-as-you-go, highly scalable services to suit different requirements. In addition to Incremental Backups, these products also use compression, network throttling and offline seeding to further optimize resource consumption.

Which is the best way to back up an entire Azure virtual machine that's running Linux?

For backing up Azure VMs running production workloads, use Azure Backup. Azure Backup supports application-consistent backups for both Windows and Linux VMs. Azure Backup creates recovery points that are stored in geo-redundant recovery vaults.

How does online backup work?

Cloud backup for business operates by copying and storing your server’s files to a server in a different physical location. A business can back up some or all server files, depending on its preference. Customers typically back up and restore their data and apps using a web browser or a service provider’s control panel.

How does an automatic backup work?

Backups run in the background according to your preferences. Data from your local drives and network is transferred automatically to a backup server, often in the cloud. Automating backups saves time and energy and reduces the complexities and inconsistencies typically associated with a manual backup process.

What are the three types of backups?

There are mainly three types of backup are there: Full backup, differential backup, and incremental backup. Let’s take a look at each types of backup and its respective pros and cons.

What type of backup and restore is possible with Azure backup?

Azure offers backup support that ranges from “typical” Windows or Linux machines to fine-grained protection for Exchange, SQL, or SharePoint services. You can backup Hyper-V, VMWare or even capture system state and do a bare-metal recovery if needed.

How long does Azure VM restore take?

Azure doesn’t overwrite a backed-up VM; instead, it creates a new VM from the backed-up VM’s disk or disks. The restoration will take 10 to 30 minutes depending on its size.

What is the maximum size of a data disk in terabytes?

This extends the maximum size of the disks from 1,024 GB to 4,095 GB and enables customers to add 4x more disk storage capacity per VM. Customers can now provision up to a total of 256 TB disks storage on a GS5 VM using 64 disks with 4 TB capacity.
