motor generator, also called Motor-generator Set, an electric motor coupled to an electric generator to convert electric power from one from to another. The motor operates from the available electric power source, and the generator provides power of the characteristics desired for the load.

What is the principle of motor and generator?

The motor uses electricity. It works on the principle that when a current-carrying conductor is placed in a magnetic field, it experiences a force and rotates. The word ‘generator’ means to generate something, and an electrical generator produces (generates) electricity.

How do you turn a motor into a generator?

In electric machines you need 2 things to generate electricity. To move or rotate a magnetic field inside a coil OR move or rotate a coil of insulated wire inside a magnetic field. The simplest is the DC motor you find in brushed battery powered tools and toys. They will become a generator simply by rotating the shaft.

How does a generator work simple explanation?

Electric generators work on the principle of electromagnetic induction. A conductor coil (a copper coil tightly wound onto a metal core) is rotated rapidly between the poles of a horseshoe type magnet. … The magnetic field will interfere with the electrons in the conductor to induce a flow of electric current inside it.

Is generator a DC or AC?

ParametersAC GeneratorDC GeneratorOutput PowerIt generates AC electric powerIt produces DC electric power

How voltage is produced in a generator?

Voltage in a generator is generated by a changing magnetic flux linked with a conducting coil. This phenomenon is called electromagnetic induction, which states that a changing magnetic field induces an emf whose direction is such as to appose the change which is causing it.

How do motors and engines differ?

“People use both interchangeably, but the difference is that motors run on electricity and engines run on combustion. The engine converts various forms of fuels into mechanical force, while the motor transforms electrical energy into mechanical energy.”

How does a generator create electricity?

A generator works by producing mechanical energy using an engine, which can be powered using a variety of fuel options such as diesel, biogas, natural gas or LPG. The engine is used to rotate the axle of an electrical conductor in a magnetic field which creates electricity.

How does a generator work without electricity?

When the generator detects a power outage, the engine starts automatically and turns a power generating unit called an alternator. The alternator converts the mechanical energy of the internal combustion engine into electrical energy.

Can an AC motor be used as a generator?

A regular AC induction motor usually can be used as a generator, without any internal modifications.

Article first time published on

Can a motor work as a generator?

You can use just about any motor to generate electric current, if it is wired correctly and you follow specific rules for its use. Modern AC induction motors are quite simple to wire as alternating current generators, and most will begin generating electricity the first time you use them.

Can an electric motor run a generator to power itself?

YES, but it can only be done long term with an electric motor that is designed to also run as a generator and if the generator will be paralleled with other generation the motor will need to be a synchronous motor. … My electrical plant includes 2 – 500 KW motor generators.

Can generators produce DC voltage?

A direct-current (DC) generator is a rotating machine that supplies an electrical output with unidirectional voltage and current. … This induced voltage is inherently alternating in form since the coil flux increases and then decreases, with a zero average value.

Can generators produce DC?

While generators feature a stationary field in which the armature rotates to produce electromagnetic induction, an alternator’s entire magnetic field turns with its conductors remaining stationary. Generators are capable of both AC and DC power.

What are the 2 types of generator?

There are two fundamental types of generators known as AC (alternating current) and DC (direct current) generators. While the technique of producing electricity is the same in both types, AC and DC power become different in terms of their applications – the way in which loads receive electric power.

Do cars have motors or engines?

Typically cars have both an engine and several (electric) motors. The engine is usually a multi-cylinder Internal combustion gasoline engine and powers the car. The motors derive their electric power from the battery, which is charged by an alternator driven by the engine.

Why are engines called motors?

“Motor” is rooted in the Classical Latin movere, “to move.” It first referred to propulsive force, and later, to the person or device that moved something or caused movement. “As the word came through French into English, it was used in the sense of ‘initiator,’” says Fuller.

Is a gas engine a motor?

Motor is defined as any of various power units that develop energy or impart motion such as a small compact engine, a gasoline engine, or a rotating machine that transforms electrical energy into mechanical energy.

How is DC generated?

Direct current is produced by batteries, fuel cells, rectifiers, and generators with commutators. Direct current was supplanted by alternating current (AC) for common commercial power in the late 1880s because it was then uneconomical to transform it to the high voltages needed for long-distance transmission.

Does a generator create voltage or current?

Internally, a generator produces voltage proportional to its speed. However, that doesn’t mean a constant voltage always comes out of a generator run at a fixed speed. The windings and other parts of the generator have some electrical resistance.

What is the left hand rule for generator action?

The left-hand rule is summed up as follows: The first finger of the left hand is pointed in the direction of the magnetic lines of force (north to south), the thumb is pointed in the direction of movement of the conductor through the magnetic field, and the second finger points in the direction of the induced emf.

Do generators run on gas?

Standby generators use one of two fuel sources: propane or natural gas. Natural gas units can keep running indefinitely, because their fuel will almost certainly outlast the outage.

What happens to a generator when the power comes back on?

The generator system detects a power outage immediately and waits a few seconds for the power to return. … It all happens just seconds after the power goes out. When the utility power is restored, the system reconnects the utility lines and shuts the generator down.

How does a generator hook up to a house?

You simply plug the gen cord into the 20- or 30-amp outlet on your generator. The opposite end splits into several household outlets, where you can start connecting additional extension cords safely indoors.

How are motors and generators alike?

How are motors and generators alike Brainly? A generator converts mechanical energy into electrical energy, while a motor does the opposite – it converts electrical energy into mechanical energy. Both devices work because of electromagnetic induction, which is when a voltage is induced by a changing magnetic field.

What are the 6 methods of producing electricity?

In this learning activity you’ll review the six different ways in which electricity is produced: chemical, friction, heat, light, magnetism, and pressure.

How is electricity made with water?

Flowing water creates energy that can be captured and turned into electricity. … The most common type of hydroelectric power plant uses a dam on a river to store water in a reservoir. Water released from the reservoir flows through a turbine, spinning it, which in turn activates a generator to produce electricity.

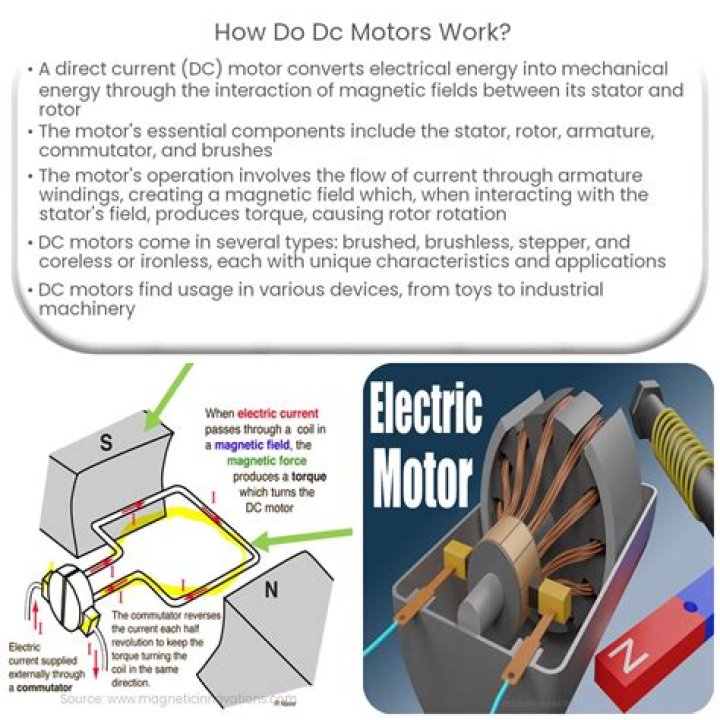

Can we use DC motor as generator?

Both brushed and brushless DC motors can be operated as generators. However, there are some important points to consider when designing the drive.

Can you turn a 3 phase motor into a generator?

Yes, a three phase motor CAN be spun to operate as a generator, however, an induction motor used as such will still require a supply voltage, will Have to be spun faster than its normal operating speed and cannot provide reactive power, so would need a capacitor [bank].

What RPM does a generator run at?

Typically, a United States portable generator runs at 3600 RPM, with 2 poles, for a design frequency of 60Hz. Larger portable generators run at 1800 RPM with 4 poles here.

How do you turn an AC motor into a generator?

The only way to make your motor function as a generator would be to take it to pieces, remove the “shading rings” (the copper loops), and replace the rotor with a powerful permanent magnet. With the poles at opposite sides. Turn the motor at 3000 rpm and it will generate AC at 50HZ.
