Make sure the sprinkler valve is closed, unless it’s the valve farthest from the main water source. You’ll want to leave this valve open and remove the sprinkler nozzle to allow air to escape when you turn on the water.

Should sprinkler valves be open or closed?

Make sure the sprinkler valve is closed, unless it’s the valve farthest from the main water source. You’ll want to leave this valve open and remove the sprinkler nozzle to allow air to escape when you turn on the water.

How do I know if my sprinkler valve is bad?

1. Water not turning Off: If you notice that water is not closing off from the sprinkler, then there seems to be an issue in the diaphragm valve. …
2. Leaks of water: …
3. Broken Sprinkler Head. …
4. Stuck Valve. …
5. Wiring: …
6. Irregular Watering:

What causes a sprinkler valve to stay open?

Air Trapped in the Valve: The valves may have air trapped in them. A small bubble of air becomes trapped in the tiny water ports of the valve, this stops the water from flowing through the port. Since the water flowing through the port is what holds the valve diaphragm closed, the valve stays open.

What position should sprinkler valves be in?

Locate your sprinkler valve boxes in or above the ground level. Most professionals install the valves in a box at ground level in the lawn or above ground level in a flowerbed so they are not obstacles when mowing the lawn.

How do I know if my sprinkler valves are open?

Turning it to the left lifts an internal gate that releases water incrementally as it turns. The gate lifts entirely when the handle is turned fully counterclockwise. If the handle will turn no farther counterclockwise, the valve is open.

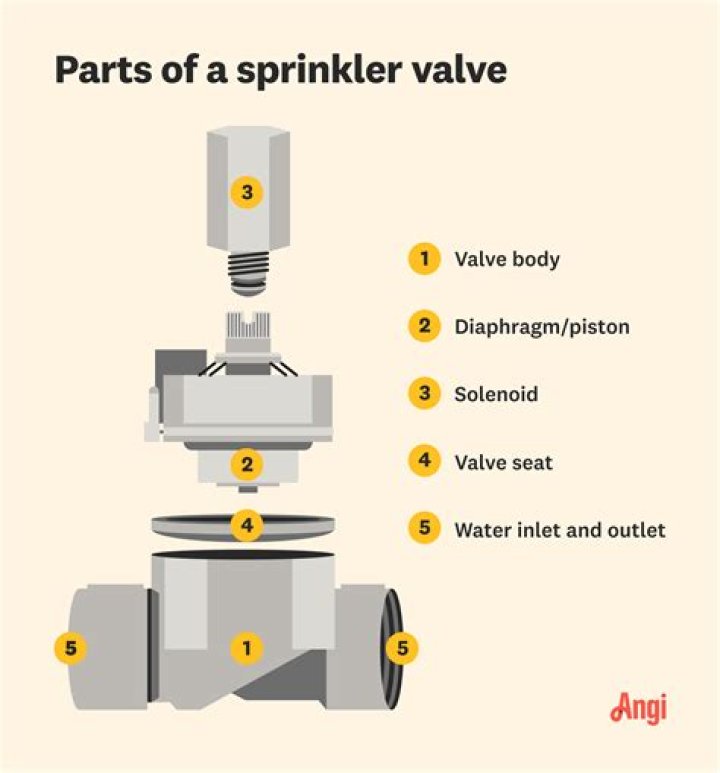

How does a water solenoid valve work?

Solenoid valves consist of a coil, plunger and sleeve assembly. … Once the solenoid coil is energized, the resultant magnetic field raises the plunger, enabling flow. When the solenoid coil is energized in a normally open valve, the plunger seals off the orifice, which in turn prevents flow.

What happens when sprinkler valve goes bad?

The Water Won’t Shut Off If you have this problem, it’s very likely the solenoid. A problem with the plunger can prevent the solenoid from closing the valve when it’s time. That means your sprinklers will keep running after they’re supposed to stop. If you run into this problem, the first step is to turn off the water.

What does the bleed screw do on a sprinkler valve?

To close the valve, turn the solenoid clockwise until the valve closes. This is the method that many prefer because most times when you open the manual bleed screw, it causes water to leak out into the valve box. If the valve is left on for any period of time, it can start filling the valve box with water.

How do you test a sprinkler solenoid valve?

1. Turn off the water supply to the irrigation system using an isolation valve.
2. Disconnect the solenoid wires from the controller.
3. Using and multimeter test the number of ohms through the solenoid. 20-60 ohms – Good. …
4. If solenoid tests Good, then the solenoid is OK.

Article first time published on

How often do sprinkler valves need to be replaced?

Monday8:00 am – 5:00 pmThursday8:00 am – 5:00 pmFriday8:00 am – 5:00 pm

Should sprinkler valves be buried?

Valves can be grouped together in manifolds, or installed individually – and valves should always be buried inside a plastic irrigation valve box. Never bury a valve directly in the dirt.

Does each sprinkler zone have its own valve?

An irrigation system is typically divided into several zones, each of which feeds sprinkler heads in a different area of the lawn or garden, and each zone is controlled by a valve that receives signals from a centrally located controller. … Often the valves are located inside one or more in-ground valve boxes.

What triggers a solenoid valve?

Solenoid valve is a control units which, when electrically energized or de-energized, either shut off or allow fluid flow. The actuator takes the form of an electromagnet. When energized, a magnetic field builds up which pulls a plunger or pivoted armature against the action of a spring.

How do you turn on a solenoid valve?

One way is to simply turn the solenoid (the black cylinder with 2 wires) counter-clockwise a 1/4 to 1/2 turn. To shut off the valve, twist the solenoid clockwise until it is snug on the valve. The other way is to use the bleed screw the same way, loosen the screw enough to realease air (1/4 to 1/2 turn).

Why does my sprinkler valve make noise?

A slight whining or high-pitched noise coming from the sprinkler valve is a sign of a small leak or slow leak. … A leak in the sprinkler valve, whether inside the mechanism or on its exterior, means the valve will require replacement.

Should solenoid be on or off?

Avoid over-turning the solenoid in either direction, as this can cause damage to the components or cause pressurised water to escape the solenoid. When you hear water rush through the device, it’s easy to tell that the valve has opened successfully.

How does a solenoid valve fail?

Solenoid coil failure can be caused by a number of factors. Applying an incorrect voltage to the coil will cause it to fail and may cause the coil to burn out. Electrical surges or spikes may also damage the coil. … Sediment or other particles entering the valve may cause coil failure.

How long do underground sprinkler valves last?

Similar to sprinkler heads, you may also find yourself replacing the system’s wire connections if they aren’t installed properly or become corroded. Because the irrigation system’s pipes are underground and made of durable material, they can last up to 40 years before needing to be replaced!
