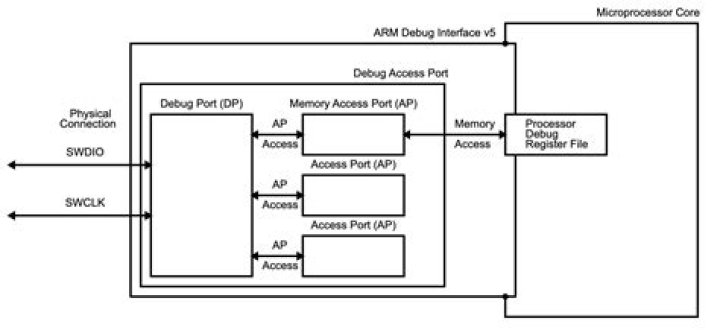

SWD uses an ARM CPU standard bi-directional wire protocol, defined in the ARM Debug Interface v5. This enables the debugger to become another AMBA bus master for access to system memory and peripheral or debug registers. The Debug Access Port (DAP) is split into two main control units.

What is SWD protocol?

Serial Wire Debug (SWD) is a two-wire protocol for accessing the ARM debug interface. It is part of. the ARM Debug Interface Specification v5 and is an alternative to JTAG.

What is the difference between JTAG and SWD?

SWD is an ARM specific protocol designed specifically for micro debugging. JTAG (Joint Test Action Group) was designed largely for chip and board testing. It is used for boundary scans, checking faults in chips/boards in production. Debugging and flashing micros was an evolution in its application over time.

What is the role of the SWD connector?

The 10-pin, 0.05″ JTAG/SWD connector offers ITM and DWT trace information. In SWD mode, two pins are used for debugging: one bi-directional pin (SWDIO) transfers the information and the second pin (SWDCLK) clocks the data. A third pin (SWO) delivers the trace data at minimum system cost.

What is SWD in microcontroller?

SWD stands for Serial Wire Debug is the protocol designed by ARM for programming and debugging their microcontrollers. Since SWD specializes in programming and debugging, it comes with many special features that is usually not available anywhere else like sending debug info to the computer via the IO line.

Is reset needed for SWD?

No – it is not necessary to connect the nRESET pin to the RESET pin on the nRF52 chip. The nRF51 had a SWD protocol that was not standard – the reset was multiplexed on the SWDIO lines.

Is Stlink a JTAG?

Description. The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontrollers. The single-wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.

What is ARM JTAG?

ARM JTAG 20. The ARM JTAG 20 connector is a 20-way 2.54mm pitch connector. It can be used in either standard JTAG (IEEE 1149.1) mode or Serial Wire Debug (SWD) mode.

What is SWD arm?

The ARM Serial Wire Debug Interface uses a single bi-directional data connection. It is implementation defined whether the serial interface: provides a separate clock connection, and transfers data synchronously. …

How do I connect to SWD?

Connecting via SWD header The easiest way to connect your development board to your debugger is by using the 4-pin SWD header, if present. This header is usually a male dupont header, but female headers are also used. The header exposes a ground pin, a +3.3V pin, a clock pin, and a data pin.

Article first time published on

What is JTAG and why is it used?

JTAG (named after the Joint Test Action Group which codified it) is an industry standard for verifying designs and testing printed circuit boards after manufacture. … The Joint Test Action Group formed in 1985 to develop a method of verifying designs and testing printed circuit boards after manufacture.

What is JTAG in microcontroller?

JTAG stands for Joint Test Access Group and is an association that was formed initially to derive a specification to test connectivity between chips in a PCB. … Colloquially JTAG refers to the debug and programming dongle that is used to communicate to a microcontroller during development/hacking.

What is UART and JTAG?

JTAG is a serial programming / data access protocol designed for interfacing with microcontrollers and similar devices. A UART is a chip or sub-component of a microcontroller which provides the hardware to generate an asynchronous serial stream such as RS-232 or RS-485.

What is SWD in physiotherapy?

Short Wave Diathermy (SWD) is a treatment that uses electromagnetic energy to produce deep heating in joints and soft tissues. This form of heat can be applied to deeper structures than other forms of heat treatment.

What is short wave diathermy?

Shortwave diathermy uses high-frequency electromagnetic energy to generate heat. It may be applied in pulsed or continuous energy waves. It has been used to treat pain from kidney stones, and pelvic inflammatory disease. It’s commonly used for conditions that cause pain and muscle spasms such as: sprains.

How do I install a Stlink driver?

1. Download the latest ST-LINK/V2 driver.
2. Extract the archive and run either dpinst_amd64.exe or dpinst_x86.exe depending on whether you are on a 64-bit machine or 32-bit machine. Follow the displayed instructions.
3. You should now have successfully installed the ST-LINK/V2 driver.

How do I turn off read protection on STM32?

1. In order to unprotect the chip with ST-LINK, one has to click Target -> Option Bytes: -> change Read-Out Protection – Disabled.
2. Then it is possible to switch to System memory (0x1FFFF800) and see firmware binary:
3. Flashing is possible now.

How do you program a STM32?

1. create a new project in STM32CubeIDE.
2. in Target Selection Tool, select the appropriate microcontroller or Evaluation Board.
3. give your project a name.
4. in Device Configuration Tool initialize all the necessary peripherals.
5. generate a project.
6. complete this project with your code.

What does Swclk stand for?

SWCLK is a clock signal which is always driven by the host. Both sides will drive the SWDIO line to send data. A high value on SWDIO indicates a logical ‘1’, a low value is a logical ‘0’. The protocol specifies when each side will drive the SWDIO line.

What is Serial Wire Debug used for?

Serial Wire Debug (SWD) provides a debug port for severely pin-limited packages, often the case for small package microcontrollers but also complex ASICs, where limiting pin count is critical and can be the controlling factor in device costs.

Is JTAG still relevant?

For embedded developers and hardware hackers, JTAG is the de facto standard for debugging and accessing microprocessor registers. This protocol has been in use for many years and is still in use today.

How do I debug with Stlink v2?

1. For Debugging Projects With The Blue Pill Board.
2. For Debugging With Nucleo Boards (Nucleo32-L432KC)
3. Step1: Open CubeMX & Create New Project.
4. Step2: Choose The Target MCU & Double-Click Its Name.
5. Step3: Configure All The Peripherals & GPIOs You’re Willing To Use In Your Project!

What is St-Link Server?

The ST-LINK server is an application to share the debug interface of a single ST-LINK board among several host applications, typically a debugging tool and a monitoring tool.

What is tap in JTAG?

The JTAG interface, collectively known as a Test Access Port, or TAP, uses the following signals to support the operation of boundary scan. TCK (Test Clock) – this signal synchronizes the internal state machine operations. … It is sampled at the rising edge of TCK when the internal state machine is in the correct state.

How do I find my JTAG port?

JTAG ports are often available on PCBs, left over from development, or used to program the device in the factory. A 2×5 or 2×10 header near the main processor or SoC is often a giveaway.

Does Arduino support JTAG?

Yes, it is possible to turn an Arduino into an ARM JTAG adapter. There are three problems, voltage, speed and drivers. The Arduino natively runs at 5V. Most ARM microcontrollers are not 5V tolerant on their JTAG pins and require 3.3V.

How do I debug STM32?

1. Ensure you have the Debug Configuration selected from the Configuration Manager Window.
2. If you know where you want the first breakpoint in your code, add it now.
3. To start the debugging process, you can either: “Debug > Attach to Process” button if your code has already been uploaded to the STM32 board.

What are the mandatory instructions in JTAG?

• EXTEST – Perform an “external” boundary-scan test using the boundary scan cells.
• SAMPLE and PRELOAD – Boundary scan while the device is functional.
• BYPASS – Bypasses the boundary scan cells altogether.

What is J Link Programmer?

The J-Link BASE is a USB powered JTAG debug probe supporting a large number of CPU cores. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. … The J-Link Base is a great option for those getting started with JTAG/SWD programming and debugging.

What is JTAG emulator?

JTAG emulators are the “umbilical cord” between PC software tools and DSP boards during development. … When combined with a JTAG emulator, CCS provides crucial board debug and “bring up” capabilities such as single-step, breakpoint, memory and symbol display and “watch”, executable code download, and data file transfer.
