The torsion balance consists essentially of two small masses at different elevations that are supported at opposite ends of a beam. … The latter is suspended from a wire that undergoes torsion because the masses are affected differently by the force of gravity.

What is torsion prescription balance?

The Class III Prescription Balance is a 2 pan torsion type balance which utilizes both internal and external weights. It requires the use of external weights for measurements exceeding 1 g.

What is Coulomb's torsion balance?

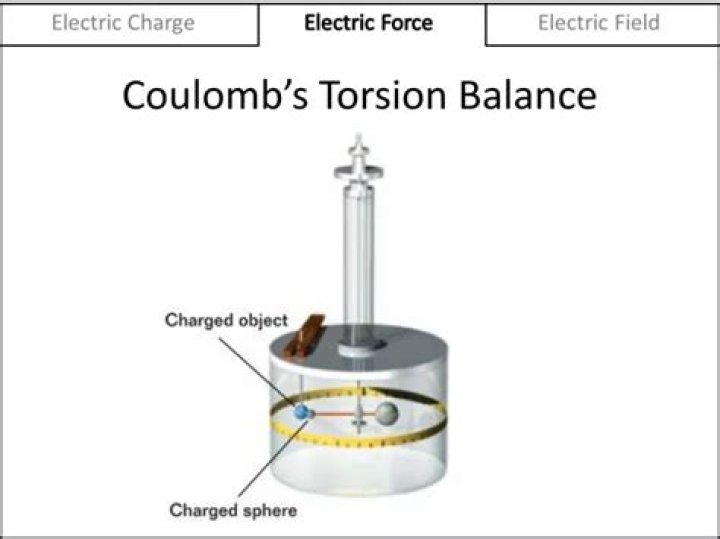

Coulomb’s Torsion Balance is a setup based on two glass cylinders, one of 65cm length with a torsion micrometer (fig. 2, right) is placed on a glass plate that rests on a larger cylinder with dimensions of diameter and height of 32cm each. An angular scale is fixed to the outside of the larger cylinder.

What is the purpose of calibrating the torsion balance?

Practical torsion balances are used by pharmacies and other applications when tiny values — fractions of a gram — require measurement. Calibration is the proper term to describe the balancing a torsion scale, and it requires weights within the capacity of your scale.

What is sensitive torsion balance?

Torsion balance is a very very sensitive device used to measure very feeble forces. … He also used it to discover the inverse square forces between magnetic poles. A torsion balance was used later by Cavendish to verify Newton’s Law of Gravitation.

Who invented torsion balance?

One type is used to measure small weights. The invention of the torsion balance is commonly credited to the English geologist John Michell, who made his instrument c. 1750, and to the French physicist Charles A. de Coulomb, who independently devised such a balance c. 1777.

What is the maximum capacity for a Class A balance?

Handbook 44, 4th ed., states: “In the absence of information to the contrary, the nominal capacity of a Class A balance shall be assumed to be 15.5 g (½ apothecaries’ ounce).” Most of the commercially available Class A balances have a capacity of 120 g and bear a statement to that effect.

How was 1 coulomb determined?

The SI system defines the coulomb in terms of the ampere and second: 1 C = 1 A × 1 s. … The ampere is defined by taking the fixed numerical value of the elementary charge e to be 1.602176634×10−19 coulombs. Thus, one coulomb is the charge of approximately 6241509074460762607.

How is torsion angle measured in Coulomb's experiment?

The torsion angle of the thread is measured on the degree scale marked on the glass case, at the same height of the horizontal plane of the suspended needle.

How does the Cavendish experiment work?

The Cavendish Experiment is a clever way to measure the Gravitational Constant that is stated in the Universal Gravitation Equation. … This experiment used a torsion balance device to attract lead balls together, measuring the torque on a wire and equating it to the gravitational force between the balls.

Article first time published on

What is the significance of Coulomb's torsion experiment?

Coulomb carried out detailed studies of electrostatic forces with the torsion balance that allowed him to offer the world proof of the inverse square law that today bears his name. According to Coulomb’s law, the electric force between objects is inversely proportional to the distance between the objects.

What is value of G?

In the first equation above, g is referred to as the acceleration of gravity. Its value is 9.8 m/s2 on Earth. That is to say, the acceleration of gravity on the surface of the earth at sea level is 9.8 m/s2. … There are slight variations in the value of g about earth’s surface.

What is a sensitivity requirement of a Class A torsion balance?

The sensitivity requirement or limit of a Class A balance is defined as a pointer shift of not less than one index-scale division when 6 mg has been added to a pan.

What is the minimum Weighable quantity on torsion balance?

The least weighable quantity would be 120 milligrams. The amount of drug substance to be weighed, therefore, must be equal to or greater than 120 milligrams.

What does USP 795 govern?

USP develops standards for compounding nonsterile medications to help ensure patient benefit and reduce risks such as contamination, infection or incorrect dosing. USP General Chapter <795> provides standards for compounding quality nonsterile preparations.

How gravitational constant was calculated by Henry Cavendish?

In 1798 Cavendish measured the force between attracting lead spheres with a torsion balance. He knew the masses of the spheres and how far apart they were. He carefully measured the force between them, which allowed him to calculate G. G is incredibly small, 0.0000000000667310 Nm2/kg2.

Who made Coulomb's law?

Charles-Augustin de Coulomb, (born June 14, 1736, Angoulême, France—died August 23, 1806, Paris), French physicist best known for the formulation of Coulomb’s law, which states that the force between two electrical charges is proportional to the product of the charges and inversely proportional to the square of the …

Why Coulomb is used?

coulomb, unit of electric charge in the metre-kilogram-second-ampere system, the basis of the SI system of physical units. It is abbreviated as C. The coulomb is defined as the quantity of electricity transported in one second by a current of one ampere.

What are the 3 different types of balance?

There are three different types of balance: symmetrical, asymmetrical and radial. The human figure in this diagram is symmetrically balanced; the same on the left and right sides of a central axis.

How does an equal arm balance work?

The simplest type of balance, the equal-arm, or beam, balance, is an application of a lever. … A long pointer attached at right angles to the beam at the fulcrum indicates zero on a scale when the beam is at rest parallel to a level surface.

What are precision balances?

We define precision balances as “a balance used to weigh quantities to a very precise number, usually up to one milligram”. They’re sometimes referred to as “top loading balances”. Precision balances are available in a wide range of capacities, from several hundred grams up to kilograms.

What is torsional flexibility?

– Torsional flexibility: It is defined as the angle of twist produced by the unit torque applied. – The formula to calculate torsional flexibility is L / (GJ) here, G is the modulus of rigidity, J is the polar moment of inertia and L is the shaft length.

Why is torsional stiffness important?

Torsion stiffness is a very important characteristic in chassis design. A stiff chassis has more “cornering” torque and the suspension can handle it more easily. … The loads are applied at the front suspension mounting points, while the displacements are fixed at the rear suspension.

What is torsion and torsional rigidity?

The applied torque needed to produce a unit angle of twist in a circular elastic material; a measure of a body’s resistance to torsion. From: torsional rigidity in The Oxford Dictionary of Sports Science & Medicine »

How do you verify coulombs law?

To verify the proportionality of Coulomb’s Law that the electric force between two point charges is directly proportional to the product of the charges and is inversely proportional to the square of the distance between them.

How do the bodies get electric charge on rubbing?

The free electrons are transferred from one body to another on rubbing thus making one body negatively charged ( one which accepts electrons ) and the other becomes positively charged ( one which donates electrons).

What is Colombian force?

Coulomb force, also called electrostatic force or Coulomb interaction, attraction or repulsion of particles or objects because of their electric charge. … Two like electric charges, both positive or both negative, repel each other along a straight line between their centres.

What was the conclusion of the Cavendish experiment?

The results of the Cavendish Experiment was the mass density of the earth, yet others were able to derive the actual value of the gravitational constant from the experiments results.

How did Cavendish calculate the volume of the earth?

The most famous of those experiments, published in 1798, was to determine the density of Earth. … Cavendish calculated the attraction between the balls from the period of oscillation of the torsion balance, and then he used this value to calculate the density of Earth.
