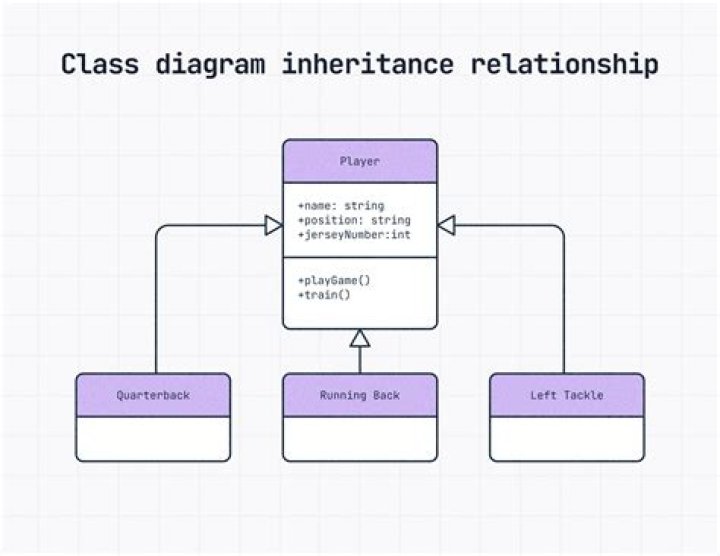

In UML, an inheritance relationship is represented by an arrow with a triangular tip pointing from the derived class to the base class. Inherited attributes and methods are not repeated in the representation of the derived class.

How is inheritance shown in UML diagram?

Inheritance is shown in a class diagram by using a solid line with a closed, hollow arrow. Bidirectional association: The default relationship between two classes. Both classes are aware of each other and their relationship with the other. This association is represented by a straight line between two classes.

How does UML show abstraction?

The name of an abstract Classifier is shown in italics, where permitted by the font in use. Alternatively or in addition, an abstract Classifier may be shown using the textual annotation {abstract} after or below its name.

How does UML show dependency?

Dependency in UML The most general relationship between two packages, classes, or objects is dependency, which is shown by a dashed arrow: Strictly speaking, A depends on B is changes to B might necessitate changes to A.

What is inheritance in class diagram?

Inheritance. A very important concept in object-oriented design, inheritance, refers to the ability of one class (child class) to inherit the identical functionality of another class (super class), and then add new functionality of its own.

How do you add inheritance to the visual paradigm?

1. Right click on the superclass within a generalization hierarchy and select Open Specification… from the popup menu. …
2. Open the ORM Class Detail tab.
3. Click Subclasses…. …
4. Select the sub-classes. …
5. Select the Inheritance Strategy. …
6. Click Apply.
7. Click Close.
8. Click OK.

What does 0 * mean in UML?

The “0.. *” notation is used to denote “zero or more” (many). The following notation indicates that every object in Class A is associated with zero or more objects in Class B, and that every object in Class B is associated with exactly one object in Class A.

How do you show dependency in a flowchart?

The notation for a dependency is a dashed arrow, and the element at the tail of the arrow depends on the element at the arrowhead. So the arrow representing a dependency specifies the direction of a relationship, not the direction of a process.

Is UML process dependent or independent?

The UML is a process-independent notation system – that is, there is no dependency on a particular development process, like Agile Programming or the Unified Process, both of which may be used effectively with the UML.

What is > in UML?

If we mark a Usage Dependency with << Create >> then this means that particular method in a Client Class creates an instance of a Supplier Class. Hence we create an instance of Supplier in the body of our client class. Client and Supplier are strongly coupled here.

Article first time published on

How write abstract method in UML?

In UML, the name of an abstract class is written in an italic font. This class contains one abstract method called calculatePay, it is written in a italic font. An abstract method has no implementation. Typically an abstract class contains one or more abstract method.

How do you know if a class is abstract in UML?

In UML, the abstract class has the same notation as that of the class. The only difference between a class and an abstract class is that the class name is strictly written in an italic font. An abstract class cannot be initialized or instantiated.

When a class inherits an abstract class and it does not implement?

If a class inheriting an abstract class does not define all of its function then it will be known as? Explanation: Any subclass of an abstract class must either implement all of the abstract method in the superclass or be itself declared abstract. Note: Join free Sanfoundry classes at Telegram or Youtube. 4.

Which UML diagram symbols are shown?

Que.Which UML diagram’s symbols are shown below?b.Collaboration Diagramc.Component Diagramd.Object DiagramAnswer:Deployment diagram

How class diagram is important in UML?

Class diagrams are the most important kind of UML diagram and are vitally important in software development. Class diagrams are the best way to illustrate a system’s structure in a detailed way, showing its attributes, operations as well as its inter-relationships.

Which core element of UML is being shown in the figure?

Que.Which core element of UML is being shown in the figure?b.Interfacec.Classd.ComponentAnswer:Component

How do you show multiplicity in Staruml?

1. Click once on the line/association you want to add the multiplicity to.
2. Mouseover one of the square blocks at the end of the line so you get the hand cursor and double-click.
3. You then will see a pop-up with a combobox dropdown menu on the right side.

Is a relationship UML?

In UML, a relationship is a connection between model elements. A UML relationship is a type of model element that adds semantics to a model by defining the structure and behavior between model elements. You can set properties and use keywords to create variations of these relationships.

What is cardinality in UML?

uml. When data modeling methods talk about relationships, they use the term cardinality to indicate how many entities may be linked together. So you might have a relationship between order and customer and say that the cardinality of the relationship is one-to-many.

How draw UML diagram in Visual Paradigm?

1. Select Diagram > New from the application toolbar.
2. In the New Diagram window, select Class Diagram.
3. Click Next.
4. Enter the diagram name and description. The Location field enables you to select a model to store the diagram.
5. Click OK.

How do you show relationships in class diagram in Visual Studio?

Show hidden relationships Open and select a class diagram file in Class Designer. Right-click the type with the hidden association or inheritance.

Where are UML diagrams drawn?

• Add or import shapes. …
• Automate the process by using sequence markup. …
• Identify and add components. …
• Add text and concepts to your UML diagram. …
• Publish, implement, and share.

Is dependency injection a form of composition?

Dependency Injection (DI) is the preferred way of making these classes interact with each other. Classes declare their dependencies in their constructors, and a separate entity is responsible for providing these dependencies. This entity is the Composition Root.

How do I create a Visio chart in Excel?

Create and link to subprocess diagrams In the Visio desktop app, select a Data Visualizer template and then select the Excel data template link to open Excel. Then select Create to open the Visio Data Visualizer template. Use the Excel data template to create tables for your processes and sub-processes.

How do UML diagrams work?

A UML diagram is a diagram based on the UML (Unified Modeling Language) with the purpose of visually representing a system along with its main actors, roles, actions, artifacts or classes, in order to better understand, alter, maintain, or document information about the system.

How is composition represented in a class diagram?

The UML representation of a composition relationship shows composition as a filled diamond shape on the containing class end of the lines that connect contained class(es) to the containing class.

How do you identify classes in class diagram?

Classes represent the central objects in a system. It is represented by a rectangle with up to 3 compartments. The first one shows the class’s name, while the middle one shows the class’s attributes which are the characteristics of the objects.

How do you indicate final in UML?

Class (i.e. static) methods and fields are indicated by underlining. Constant (i.e. final) fields are indicated via naming convention: constants should be in ALL_CAPS.

How show static method in UML?

The UML denotes static features by underlining the feature in the class diagram. Programmers translate the underlining to the static keyword when they translate the UML class diagram to C++. Denoting static features in a UML class diagram. The UML denotes static features by underlining them.

What is encapsulation in UML?

Encapsulation − Encapsulation is the mechanism of binding the data together and hiding them from the outside world. Inheritance − Inheritance is the mechanism of making new classes from existing ones.

How a class differs from an interface in UML?

As we know in OOP that interface provides a set of operations without implementation but class is the opposite.
