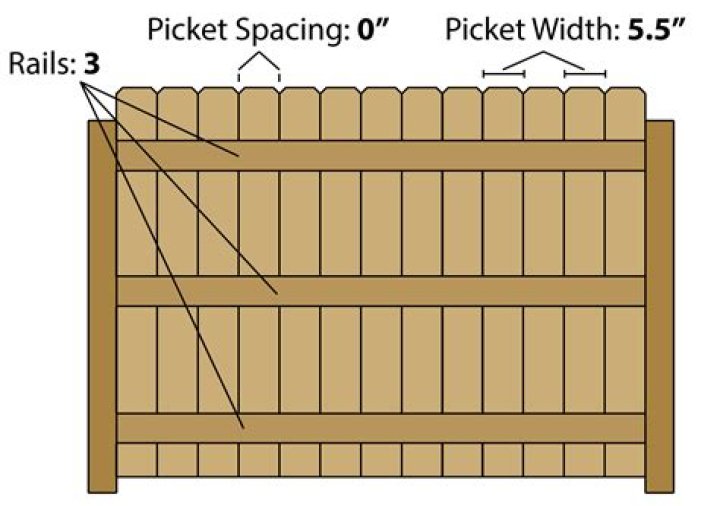

STANDARD RAIL SPACING On two-rail and three-rail fencing, there is 11 inches between rails. On four-rail fencing, there is 9 inches between the rails.

How many Rails does a wood fence need?

Number of Rails It is recommended that you use a minimum of 2 horizontal rails between posts for all fences less than 5′ high, 3 rails for fences 5′ to 7′ high, and 4 rails for 8′ high fences.

What height should fence rails be?

All fences will have a top and bottom rail. One general rule of thumb is to have a horizontal rail for every 24 inches in height. For a six-foot-high fence, this means three rails. While a middle rail may not be a structural necessity, it will help keep fence boards in place and may limit warping and twisting.

How far apart should post and rail fencing be?

The structure of post and rail fencing is the same for all types of timber, unless otherwise stated, all posts should be set at 1.8m centres, rail spacing will vary depending on the number of rails used. All nails to be 100mm x 4mm and galvanised.

Should a fence follow the ground?

As you install the fence, let the pickets follow the slope of the land. This option is ideal for pet owners because the base of the fence sits flush with the turf; your furry friends can’t crawl underneath when you’re not looking.

Do I need 3 fence rails?

It is recommended that you use at least 2 horizontal rails between posts for all fences less than 5′ high, 3 rails for fences 5′ to 7′ high, and 4 rails for 8′ high fences.

Is 2 feet deep enough for fence posts?

2 feet is the minimum depth that you should dig your fence post holes for. To dig the holes one-third to one-half of the post’s aboveground height, is a general formula. The deeper you dig the holes, the more stability your fence has.

How long should screws be for fence?

Whether you choose to use screws or nails, the length is crucial to the success of your fence. To attach preassembled panels or backer rails to posts, we recommend 18d to 20d nails or 3-1/2 in. to 4 in.long screws. To attach individual pickets to the backer rails, we recommend 8d to 10d nails, 1-1/2 in.

Can I use 2 rails for a 6 foot fence?

Fence rails are two-by-fours that are installed between or across posts and are usually what the fence boards are affixed to. There will be a top and a bottom rail. One rule of thumb is to have a horizontal rail for every 24 inches in height. Three rails is what it means for a six-foot high fence.

Should fence rails be level?

Typically, the top rail is placed 7-8” from the top of the fence. The bottom rail is typically 7-8” from the grade. And the middle rail is placed even between the top and bottom rails. Do not place your rails any further from either the top or bottom of the fence.

Article first time published on

Can fence posts be 10 feet apart?

Typical spacing is right around 8 feet between each post however different circumstances may call for different measurements and it is not uncommon to have spacing between posts reach up to 10 feet. Once you have a rough idea of your post layout start by digging your first hole.

Should I use concrete for fence posts?

Concrete is the most secure material for setting fence posts, especially if you have sandy soil. … Using premixed concrete rather than dry concrete will ensure ultimate security. While concrete is sturdy, it lacks the drainage of gravel and can trap moisture, ultimately leading to rot.

How tall should a fence be for a 6-foot fence?

As a general rule of thumb, you’ll need to place at least 1/3 the height of the post in the ground. For example, a 6-foot tall fence will need at least 2 feet of post in the ground.

Should I leave a gap between fence boards?

Why do you need a space between the pickets and the ground? When wood pickets touch the ground, they absorb moisture, which can lead to swelling or rot. Leaving a space between the pickets and the ground prevents this moisture absorption from occurring, giving you a longer-lasting and nicer-looking fence.

How much do you overlap fence boards?

The fence boards alternate on the sides of the rails, overlapping by at least 1 inch on each side of the boards. Thus, 6-inch fence boards would be spaced approximately 3 1/2 inches apart, since the actual width of a 6-inch board is 5 1/2 inches.

Can you put fence boards tight together?

For solid privacy fences, the fence boards can be butted tightly together or spaced 3/8 to 1/4 inch apart to allow for wood expansion and contraction during varying weather conditions. … The pickets overlap by at least one inch on each side of the boards.

How deep should an 8 foot post be in the ground?

In general, holes should be at least 3 feet deep for posts that extend 8 feet or more above ground level. Posts that extend 6 feet above ground level should have holes at least 2 1/2 feet deep.

How deep should an 8 foot fence post be?

How Deep Should a Fence Post Be? For an average fence post, about 6 to 8 feet tall, prepare to dig a post hole about 2 feet deep. To install a fence post, you’ll need a shovel or post digger, a 6-foot level, soil, and gravel or crushed stone.

How deep should a 7 foot fence post be?

The depth of the hole should be 1/3-1/2 the post height above ground (i.e., a 6-foot tall fence would require a hole depth of at least 2 feet). Add about 6 inches of QUIKRETE All-Purpose Gravel into the bottom of the hole.

Can you use 2x3 for fence rails?

Significance: Many fence builders use 2×3 rails, which are weaker and will not last as long as 2×4 rails. … Significance: If you do not use enough rails, your fence planks will warp between the rails.

How many rails do I need for a 4 foot fence?

Start this project by setting square fence posts 8 feet apart on center. Two parallel rails are sufficient for fences shorter than 4 feet. Three rails are necessary for taller fences and for heavier privacy fences.

Should I use pressure treated wood for a fence?

In buying wood for fences, people should get pressure-treated wood for posts, says Ethan Elaison, co-owner of Elaison Lumber in Fresno. Posts should be pressure-treated because they go into the ground, where they are susceptible to insects and moisture.

How much space do you need between horizontal fence boards?

Layout the placement of the fence. Posts should be no more than six feet apart, if more than six feet apart, the stability of the fence may be compromised.

Are screws better than nails?

When deciding between nails and screws, keep in mind that nails are less brittle, so they provide greater shear strength. … Screws, on the other hand, may not be as forgiving, but their threaded shafts hold better in wood and draw boards together much more tightly and they have greater tensile strength.

Can you use deck screws for fence?

Deck screws are the best choice for pressure-treated wood because they do not cause corrosion to the screws or stain the wood. … Although both nails and screws are good options for constructing a wooden fence, the best choice comes down to the specific product.

What's the difference between #8 and #10 screws?

Larger gauge numbers indicate screws with thicker shafts. While utility screws are typically #8 or #10 gauge, steel wood screws are available in a much wider selection of gauge diameters.

What is the distance between fence posts?

Fence posts should be 60cm deep in the ground and spaced 1.8m apart.

Should fence posts be 6 or 8 feet apart?

Fence posts should be set six to eight feet apart on a 6 foot wood fence. Do not go beyond eight feet or the fence may not be stable enough.

How far apart should t post be?

You should position T-posts no more than 8 feet apart.

Do I need gravel under my fence post?

DO Employ a Base Gravel Layer If a fence post fails without any sign of a pest infestation, it’s likely that the failure was caused by moisture that rotted the wood over time. … Next, pour an additional three inches of gravel into the hole, tamping down a second time.

Does a fence post need to be below the frost line?

All fence posts should be cemented in the ground below frost level. Check your local frost level and dig deeper by at least 6″.
