The purlin are ultimately used to fasten the roof steel providing a diaphragm effect, along with the siding, when properly engineered and installed. Spacing is typically 24″ on center in low snow loads and is reduced based upon truss span and snow load.

How far can 2x4 purlins span?

A four-inch purlin can span 12 feet. A six-inch purlin can span 18 feet. An eight-inch purlin can span 25 feet. A ten-inch purlin can span 30 feet.

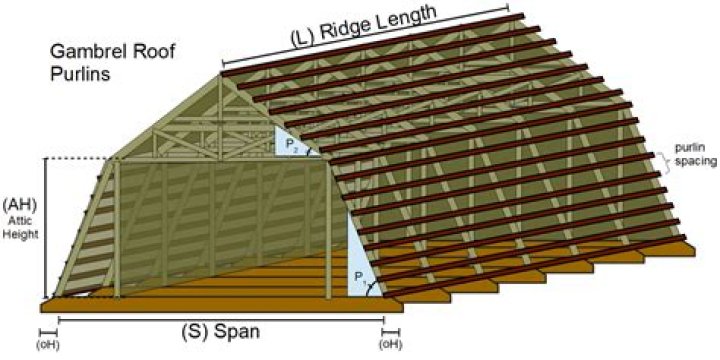

How is purlin spacing calculated?

To calculate the number of boards needed for purlins, divide the length of the purlin rows by the length of boards you are using (e.g. two boards of length eight feet for each 16 foot long purlin row).

How far apart should furring strips be for metal roof?

Spacing of Furring Strips for Metal Roof Twenty-four inches is a common spacing of furring strips for a metal roof.

How is the spacing of purlins fixed?

The spacing of purlins depends largely on the maximum safe span of the roof covering and glazing sheets. Hence, they should be less than or equal to their safe spans when they are directly placed on purlins.

Is Z purlin stronger than C purlin?

Z purlins are much stronger than C purlins due to its continuous or overlapping capability. In this case, for the metal building with bigger roofing loading capacity.

How thick should purlins be?

Purlins are 2” think wooden strips, which are laid on edge, while laths are up to 1” thick and are laid flat. Purlins should be preferably 2″ x 2″ or 2″ x 3″ rough. 1″ x 3″ purlins are inadequate; their use should be discontinued.

How do you install purlins on a metal roof?

Snap a chalk line horizontally across the roof two feet down from the top. Lay the first purlin at the ridge of the roof down to the chalk line beginning at either corner. Fasten the purlin with 16d common nails into each vertical rafter. Insert two equally spaced nails into the rafter.

Can you walk on a metal roof with purlins?

All metal roofing systems, especially steel roofing, can be walked on. Proper fall protection is always important when walking on any roof – never walk on a wet roof or one that has dew on it. Never walk on metal roofing panels before they are properly fastened down.

Do you have to use purlins for metal roof?

Do all roofing projects require purlins? No. We do recommend it, however.

Article first time published on

What is the purpose of a under purlin?

In a conventional roof frame the underpurlins support the underside of the rafters. This allows for the most economic rafter size and prevents the roof from sagging and collapsing. Underpurlins must be in single lengths where possible. They must be in straight runs at right angles to the direction of rafters.

How far apart should metal trusses be spaced?

Roof trusses should be 24” apart, on center. Trusses are allowed to be closer together, at either 12” or 16” on center, but building codes allow for 24” on center spacing without using heavier duty fasteners for truss to wall connections.

How far apart should purlins be spaced on a pergola?

Purlins are usually spaced 8” OC.

What lengths do C purlins come in?

Cee Purlin lengths are cut to length from 6′-45′ in 1/8″ increments, though 20′ and 25′ are the most commonly chosen lengths.

What is a rafter roof?

A rafter is defined as one of a series of sloped structural pieces (typically wooden beams) that extend from the hip or ridge to eave, wall plate, or downslope perimeter. They’re designed to support the roof deck, shingles, and everything else that goes with the roof. Rafters are the traditional way to frame a roof.

How far can Z purlin span?

the maximum length of the fascia purlin fp23019 is 15000mm. length tolerance for all sections is ±5mm. lysaght Zed and Cee sections are delivered in strapped bundles.

What is a Perling?

A purlin (or historically purline, purloyne, purling, perling) is a longitudinal, horizontal, structural member in a roof. In traditional timber framing there are three basic types of purlin: purlin plate, principal purlin, and common purlin.

Can you install standing seam over purlins?

Standing seam roofs can also be installed over purlins (horizontally running 1×3 or 1×4 furring strips) or over boards. It is also recommended to install standing seam over a roofing underlayment such as roofing felt (tar paper) or synthetic underlayment.

Do I need roof purlins?

Different purlins are used for different purposes, including structural support of walls or floors. Purlin is important because without it, there’s no frame for the sheeting on the roof to rest on, making purlins critical to the structure of the roof. Wood Purlin is good for use with the fibre cement sheeting.

Should a metal roof be installed over battens?

By design, some metal roofs MUST be installed over battens, some MUST NEVER be installed over battens, and some can be installed over battens OR solid decking. So, whichever way you go, it’s important to choose the right product and install it per manufacturer specifications.

How far apart should purlins be on a pole barn?

On a typical post frame building, the purlins will be spaced no more than 24” on center. Not only are purlins vital in your post frame building’s structural integrity, but how they are secured is vital as well.

How do you attach purlins to metal trusses?

ADDING PURLINS Metal zee purlins should overlap on top of a truss. They should be placed on the outside of the truss clip with the bottom leg of the zee pointing toward the sidewall of the structure. The outermost truss clip will need to be adjusted for a vertical alignment.

Can you put metal roofing directly on rafters?

Metal roofing can be installed directly on open rafters. … The vapor barrier built into such insulation helps to minimize the amount of condensation that drips down from the roof, and the insulation itself can help to keep the interior of the building at a comfortable temperature.

Can you use bubble wrap under a metal roof?

EcoFoil Bubble Insulation is the recommended product for use in metal buildings. It’s designed to be installed in the walls and roof to help keep your building cooler in the summer and warmer in the winter.

Can you weld C purlins?

A lot of the commercial buildings will use a C purlin or S shaped but usually they are bolted vs welded together, however both are possible.

What kind of wood do you use for purlins?

A purlin of poplar wood has to meet certain standard quality demands, like size, strength, du- rability etc. It is assumed that no calamities like leakage of the roof will occur so that the conditions for the purlin are dry and that the natural durability of untreated poplar wood is sufficient.

Is a drip edge necessary on a metal roof?

A drip edge is not needed for metal roofing. If you make sure to overhang your metal roofing at least an inch, the drip edge is not necessary at the eaves and rakes. If the metal roof is hanging over an inch, the water will be directed away from the fascia anyway if at a slant.

What is a 2x4 purlin?

Purlins are dimensional lumber that are fastened to the top chord of trusses connecting them together for bracing purposes. The purlin are ultimately used to fasten the roof steel providing a diaphragm effect, along with the siding, when properly engineered and installed.

What are the beams in the attic called?

Rafters are long wooden boards used for the frame of the roof, also known as stick framing. Rafters are made on the job site by the roofers and they are typically cut into 2×10 or 2×12 beams, which slope down from the peak of the roof.

What determines the spacing between trusses?

Trusses are usually spaced at regular intervals, typically 600 mm, 900 mm or 1,200 mm apart. The spacing depends on the mass of the roofing material and local practice. A range of truss types can be configured to attain different shapes.

How far apart should rafters be spaced?

But they do tend to space rafters in one of several industry-standard increments, typically either 12, 16 or 24 inches apart. These spacing intervals are measured “on center,” meaning that the measurement is taken from the center of one rafter’s horizontal surface to the center of the next rafter.
