How far apart do railings need to be?

They must be installed close enough that the space between them is less than 4 inches. Most city inspectors carry a 4-inch ball with them to test the spacing. Installed balusters should withstand 50 pounds of pressure exerted over a 1-sq. -ft area.

What is the maximum distance between deck railing posts?

Secure the Posts Maximum spacing of posts is 72 inches on center. Bolts should be vertically spaced no less than 5-1/8 inch apart. For a composite railing system, slide the post sleeve over the wood post, then the post sleeve skirt over the post sleeve; both should rest on the decking.

What is the code for deck railings?

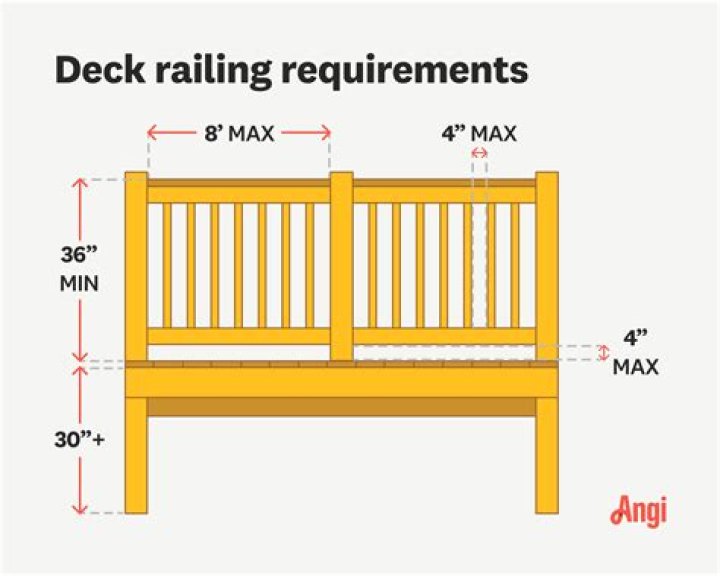

What Is Code For Deck Railing Height? The IRC requires guardrails to be at least 36 inch in height measured from the deck surface to the top of the rail. Commercial decks attached to multifamily buildings regulated under the International Building Code (IBC) require 42 inch high guardrails.

How far apart can rails be on a deck?

U.S. building code requires support posts for the rail structure to be no further apart than 6 feet on a deck with 4×4′ deck rail posts and no more than 8 feet apart for decks with 6×6′ deck rail posts. Posts should be no further apart than 5.5 feet on stairs.

How do you measure a deck railing?

Measure the distance between the corner posts of your deck with a measuring tape. If you plan to install railings on multiple sides of the deck, measure the length of each section you wish to rail.

How far apart should spindles be?

U.S. building codes mandate that balusters have no more than a 4-inch gap between them. This relatively tight amount of spacing still allows for visibility between spindles, but also stands as a safety measure to prevent small children from becoming stuck between spindles or from slipping through the balusters.

How far apart do horizontal railings have to be?

Minimum Distance Between Two Railings: 27 Inches When you have two railings (one on each side of the stairwell) those railings must be at least 27 inches apart from each other, measuring between the inside (stair-side) surfaces of both handrails.

Does deck railing need to be pressure treated?

As long as there’s a good chance that moisture can reach the wood, it should be pressure treated. This is why the International Building Code requires that siding and structural lumber used for the last six inches of the structure above the ground is pressure treated.

How high should my deck railing be?

Deck guardrails (guards) should rise to at least 36 inches above the residential deck level. This is a minimum required height for residential structure—higher guards are acceptable.

Article first time published on

How do you evenly space deck balusters?

1. Measure the width of the gap between the inner surfaces of the two support posts.
2. Measure the width of a single spindle.
3. Add the two figures together. …
4. Count the number of spindles to be used and add one. …
5. Divide the sum of the width by the sum of the number of spindles.

How tall should balusters be?

Guards, spindles, or balusters must be 34” to 38” when measured from the nose of a 10-inch deep tread. Interior stairwells require that anything over 2 steps or 3 risers would need a rail. Balusters, or other options of vertical guards that support a handrail, should be able to support 50lbs over a 1-square-foot area.

Why is pressure treated wood cheaper?

Affordability. Pressure-treated wood is notably cheaper than cedar, redwood, and other types of wood. And, because of its durability, you’re much less likely to experience a need for costly repairs in the future. It is a great choice for those operating on a smaller budget.

Can deck railing horizontal?

Your choice of design can help to give more character to your deck and enhance outdoor space. The railing is available in wooden, metal, PVC, fiberglass, composite, and cable materials. The arrangement of rails may be vertical or horizontal. Vertical railings are common in many homes.

What is code for horizontal deck railing?

The IRC (International Residential Code) requires that deck railing be at least 36″ in height. This should be measured from the deck or porch surface to the top of the railing. But you should also check your local building codes because counties and cities may have different requirements.

What is code for handrail spacing?

The handrail shall be designed to provide a grasping surface to avoid the person using it from falling. The spacing of brackets shall not exceed 8 feet. (e) Handrails projecting from a wall shall have a space of not less than 1 1/2 inches between the wall and the handrail.

How tall should railings be?

IRCOSHAResidentialGeneralHandrail Height34″ to 38″30″ to 38″Railing Height36″ min42″ +/- 3″

How do you calculate deck spindle spacing?

You should have one more spindle spacing than there are spindles. So if you have 10 spindles, take the measurement from step 2 and divide it by 11, for example. This will give you the <b>horizontal</b> distance apart each spindle spacing will be.

What is the difference between balusters and spindles?

A baluster and spindle is actually almost the same thing, but the word spindle is more commonly used because it is easier to remember and say. Balusters usually rest on a footing; this could be a step, floor or deck, whereas, spindles are supported by a horizontal rail at the bottom that is attached to the posts.

How do I attach 4x4 to top of deck?

The quickest and most secure way to mount a wooden 4×4 or 6×6 deck post to an existing deck surface is via a Titan Post Anchor. Titan Anchors provide a solid, powder-coated steel connection point for your wooden post to attach to surface below.

How do you attach a railing to an existing deck?

1. Mark rail post centers. …
2. Mark for the exact position. …
3. Cut the post and tack a guide nail. …
4. Plumb and clamp the post. …
5. Drill holes for the bolts. …
6. Pound the bolts through.

Is it OK to notch deck railing posts?

Say “No” to notching pressure-treated deck posts. We want you to build an outdoor railing system that you, your family and guests can enjoy without worrying about safety issues. In order to do so, you need to know this building shortcut is not advisable, and we recommend avoiding it at all costs.

Why is my deck railing wobbly?

If your deck railing is loose or wobbly, it is probably the result of a weak rail post connection to the deck frame. Posts should be connected to the deck framing with lag screws or bolts at a minimum. Screws or nails are not generally acceptable.

How do I stop my deck from shaking?

All decks using horizontal decking should have a diagonal sway brace to prevent racking. You may install a metal “T” brace, which is a long metal strip diagonally across the top of the joists, or install a diagonal deck board across the bottom of the deck frame. Decks using diagonal decking do not require sway bracing.
