Important! Sprinklers are intentionally designed to require 100% overlap of watered areas. That means each sprinkler throws water ALL the way to the next sprinkler in each direction.

How far apart should my sprinkler heads be?

Types of Sprinkler Heads Because of the lower PSI the distance of the spray rarely exceeds 15ft. Meaning that spray heads should never be placed further than 15 ft. apart as this would create dry spots (i.e. dead grass) in your lawn.

Should sprinklers overlap?

Sprinklers are intentionally designed to require 100% overlap of watered areas. That means each sprinkler throws water ALL the way to the next sprinkler in each direction. READ THAT AGAIN! That’s right, 100% overlap of watered areas is REQUIRED or you will get dry spots!

How do you overlap sprinklers?

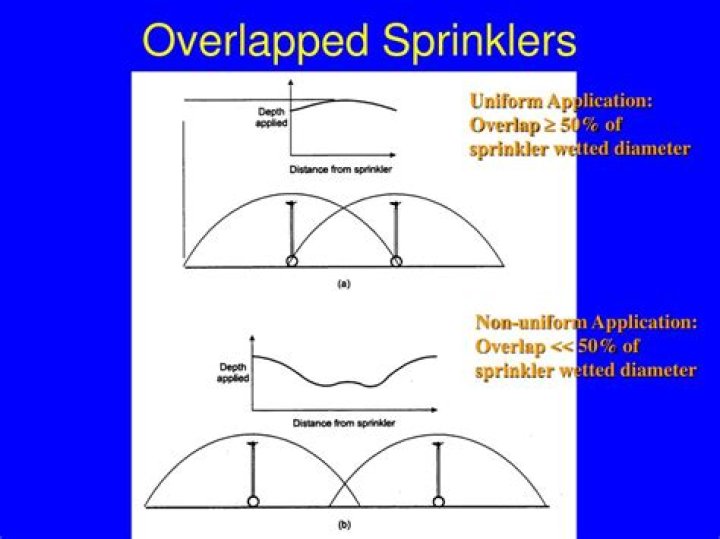

Sprinkler heads should always be placed so that the sprays overlap—the distance one head throws should reach the head of the next sprinkler. This is called head-to-head coverage, and sprinklers should be placed equidistantly in each zone to achieve it.

What is the minimum distance between a sprinkler head and any obstruction?

In a nutshell, NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems says that objects that can block a sprinkler’s spray must be at least 18 inches away from the deflector.

How much area does a sprinkler cover?

Each sprinkler protects up to 17 m2 in light hazards and 9m2 in ordinary hazards.

How far can sprinklers reach?

For example, an upright sprinkler in an ordinary hazard environment can be as far as 15 feet from an adjacent head. That same head can be up to half that distance—as far as 7.5 feet—from a wall.

How do you layout a sprinkler zone?

With simple math, you can determine how many heads in each zone and then take the total number of sprinklers you need, and divide that by your head/zone number and that will tell you how many zones you need.

How Far Should sprinklers be from fence?

When placing your sprinkler heads, keep them for at least 2 feet away from the fences and walls. If you are using a spray-type and if you will use a radius rotor-type heads keep it away for 3 feet or more from the structures.

How much clearance space is required below any sprinkler head?

Question 1: 29 CFR 1910.159(c)(10) in part states, “The minimum vertical clearance between sprinklers and material below shall be 18-inches (45.7 cm).” Does this apply only to materials placed directly below the sprinkler heads?

Article first time published on

What is the most common obstruction to sprinkler systems?

Calcium carbonate obstructions are most common in sprinkler systems supplied from non-potable wells or surface water in places where water supplies are known to be hard. These blockages can’t be detected or corrected by normal flushing operations.

How many sprinkler heads can you put on one line?

At different pressures, the sprinkler head and nozzle will consume different amounts of water. For example, at 35 pounds per square inch (PSI) the 5000 Series Rotor using the 3.0 nozzle will use 3.11 gallons per minute (GPM). If your home’s water capacity was 10 GPM, you could place 3 heads per zone.

How close can a sprinkler head be to a ceiling?

Distance from Ceiling: minimum 1″, maximum 12″ for unobstructed construction. The minimum 1″ is typical; however, concealed, recessed, and flush sprinklers may be mounted less than 1″ from the ceiling and shall be installed based on their listing.

How far should a lawn sprinkler head be from a wall?

Four-inch minimum spacing from walls and maximums vary with room shape and size, which is why standard spray sprinklers have four-inch minimum spacing from walls and maximums. The minimum sprinkler distance from walls is four inches for all standard sprinkler heads.

How do I keep my sprinklers from spraying on my fence?

stain the fence and also shorten the fence life. To keep the water off the fence completely means the sprinklers have to be very far from the fence, typically at a minimum 24″ away for spray type, 36″ for the larger radius rotors. There are variables that impact that distance they need to be away from the fence.

Does a sprinkler system add value to your home?

A sprinkler system indirectly increases a home’s market value by enhancing the home’s overall curb appeal. Since attractive landscaping requires sufficient watering, an automatic sprinkler system ensures the protection of your investment.

Does each sprinkler zone have its own valve?

An irrigation system is typically divided into several zones, each of which feeds sprinkler heads in a different area of the lawn or garden, and each zone is controlled by a valve that receives signals from a centrally located controller. … Often the valves are located inside one or more in-ground valve boxes.

How do sprinkler zones work?

Each area, with unique watering needs, gets broken into zones. The zones will be set up with different sprinkler heads and watering systems to make sure water covers the area. Your bushes and shrubs will need less water than grassy areas. The irrigation specialist will consider whether the zone is in the sun or shade.

How high can you stack boxes to a ceiling?

For general merchandise and most consumer goods, ESFR systems can be used in storage areas where the stacked product height does not exceed 35 feet, and the ceiling height is 40 feet or less. This regulation, established by the National Fire Protection Association ( ) is a “suggestion”.

What is a NFPA 13 sprinkler system?

NFPA 13R is a residential sprinkler design standard focused on low-rise residential occupancies. The Standard’s intent is to provide a sprinkler system that aids in the control of residential fires and provides improved protection against injury and life loss in multi-family dwellings.

What is a sprinkler deflector?

Deflectors: sprinkler head deflectors are the metal plates that direct the flowing water in the direction it needs to go. When water is released from the sprinkler head at activation, the stream hits the deflector and sprays outward.

What is the beam rule?

In short the “beam rule” states that there must be at least 1 foot (0.3048 m)of separation between the sprinkler and the obstruction if the deflector is any distance above the bottom of the obstruction.

What is a 5 year obstruction test?

What is the 5-Year Internal Piping Condition and Obstruction Inspection? The 5-Year fire sprinkler inspection is an NFPA mandated inspection examining the insides of your fire sprinklers’ piping. The examination must be carried out a minimum of every 5 years.

How do I get rocks out of my sprinkler lines?

Unscrew the nozzle of the sprinkler and pull out the filter to see if it’s dirty. Running the filter under cold water will remove any dirt. Flushing a sprinkler line will remove dirt and other debris. Automatic sprinkler systems rely on clean pipes and steady water pressure to operate properly.

Is it bad to water grass at night?

“A wet lawn at night is the perfect condition for fungus to grow. Along with cutting grass too short, watering at night is about the worst thing you can do to a lawn.” As a general rule, you should water long enough to moisten the soil down to about 6 inches, which is the average depth of a healthy grass-root system.

How deep should sprinkler pipes be buried?

Dig for Your Sprinkler System The trenches will be relatively shallow, usually 6 to 12 inches deep, depending on your area’s freeze cycles and frost severity. The trench must also be deep enough to allow the sprinklers to retract underground to prevent breakage from lawn machines.

How much water does a sprinkler system use per minute?

In the table below it is estimated that each sprinkler zone uses 15 gallons of water per minute. For one watering cycle a total of 750 gallons of water are used. There are 748 gallons per 100 cubic feet (cf), so 100 cf of water is being used for one watering cycle.
