“It could be a little narrower but a big bull will fit through this, and when are loading calves if one calf stops another one can go by it. The ramp is about 16 feet, but 3 feet of that is a level landing at the top. The 13 feet is a gradual incline and then there’s the flat spot where they walk into the cattle truck.

How high should a cattle ramp be?

Loading height will vary slightly with the type of truck to be used. An average height is 1.2 metres. Side panels should be at least 1.5 metres high. The best internal width between rails for loading is 750mm.

How long is a cattle ramp?

Loading ramps The minimum length for a ramp is 3 m, but ramps of 3.6–4.6 m are preferable. A level section of 800 mm to 1 m long at the end of the ramp will allow a smooth flow of cattle onto and off the truck rather than stepping onto a sloping surface.

How high should a cattle loading chute be?

The working chute should be 5 feet high for British breed cattle and 5 ½ to 6 feet high for exotic breeds. It should be long enough to accommodate four or five animals at a time. Some cattle owners prefer to have it curved so animals cannot see the headgate or hold- ing chute ahead.

How long should a cattle alley be?

A length of 20 feet should be sufficient to accommodate three or four mature cows. This minimum length allows one person operating the crowding area to keep the working chute charged without delays in receiving cattle at the squeeze chute.

What are the 3 handling facilities layout rules?

Handling Facility Layout Rules: The crowd pen must always be level. If the system includes a ramp, it should be located within the single file chute. An animal standing in the crowd pen must be able to see 2 to 3 body lengths up the single file chute before it curves. This will facilitate entry into the chute.

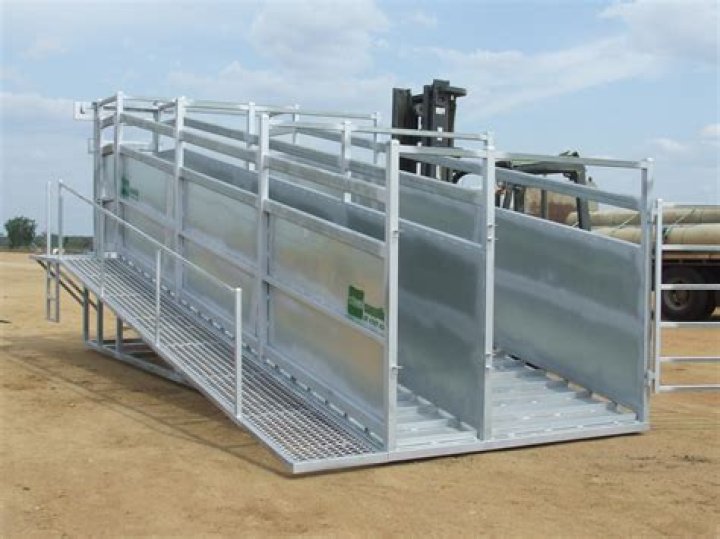

How wide is a cattle loading ramp?

Loading ramp – ideally ramps should be 750mm wide between the rails. A ramp length of at least 3.5-4.6m will give the required rise to reach the ideal 1.2m loading height. A level section at least 0.8-1m long at the top of the ramp will encourage stock movement onto and off trucks.

How wide should a cattle crush be?

It is strongly recommend that at least 1.2m width of area along either side of the crush and race is excluded from any enclosure so as to provide a safe working area along the crush and race.

How wide should a cattle loading alley be?

For most cattle, an alley width of 28 inches at the top and 16 inches at the bottom works well on an alley 60 inches tall. Increase this width for large breeds and bulls. Curved alleys are more difficult to construct, but usually allow for better cattle movement.

How big should a bud box be?

For most operations, a bud box should be 12 to 14 feet wide and 20 to 30 feet deep, depending on the number of cattle needed to flow through the system at any given time. Always leave the back open or translucent, and cover the sides and entrance gate if necessary.

Article first time published on

Where do you put cattle in a yard?

Siting your cattle yard Keep yards away from living areas to minimise noise, flies, dust and smell. Allow for all-weather access of trucks to and from market. Remember, the best prices are often paid on wet days because many farmers cannot get their stock out. Water and power should be laid on, or close at hand.

How do you start a cattle race?

1. Think from a Cow’s Eye View. …
2. Allow Cattle to See the Exit. …
3. Give them Good Traction. …
4. Use Back-Stops to Your Advantage. …
5. Place Race Gates Strategically. …
6. Keep your Width in Check. …
7. Let the Cattle See You. …
8. Move Uphill.

What are cattle yards used for?

Cattle yards are an essential facility for raising beef cattle. Once built they last for many years; as a result few cattlemen erect more than one or two yards in a lifetime.

What is a cattle dip vat?

Throughout the world, there is a renewed interest in cattle dip vats (plunge dips) to kill external parasites. To be effective, the animal must be completely submerged. The advantage of this design is that it encourages the animal to become fully submerged. … The ramp has a nonslip surface and the animal walks down it.

What is a holding pen for cattle?

Sorting pens are sometimes called holding pens because they are designed to hold cattle before and after processing through the chute. If cattle are not to be worked immediately, holding pens need sources of drinking water for cattle and additional space.

What size should a calving pen be?

The minimum dimensions of a calving pen must not be less than 3.5m by 4.8m, while the maximum dimensions must not exceed 6m, according to these specifications. Access to calving pens must be either from directly outside the building or from a suitable passage within the building.

Why are solid sides to chutes recommended when handling cattle?

Loading ramps and handling chutes should have solid walls to prevent animals from seeing distractions outside the working area. Seeing moving objects and people through the sides of a chute can cause cattle to balk or become frightened.

What are the 5 tips for good handling in livestock holding facilities?

• Move small groups of animals.
• DO NOT overcrowd crowd pen – fill it only 1/2 full.
• Handlers should understand the basic concepts of flight zone and point of balance.
• Ranches and facilities must have non-slip flooring.
• Keep animals calm. Calm and quiet animals move more easily.

How do you calm a wild cow?

Quite often after cattle have been handled rough or have gone through some rough, stressful times, they will calm down on their own if you leave them alone. Simply leave them feed and water and don’t do anything to them or with them for a few hours. Respect their flight zones.

Do I need a cattle chute?

Cattle chutes are an essential part of any operation. Chutes improve management as catching and restraining cattle becomes easy compared to a head gate at the end of an alleyway. Livestock and handler safety are increased and animal stress decreases when using cattle chutes.

Do you need planning permission for a cattle crush?

Grant aid for a stand alone cattle crush/race in existing buildings or the replacement of an existing crush does not require planning permission.

Why do farmers need a crush pen?

Benefit of the Cush Pen to the Farmers and Community – The facility allows farmers to bring the animals well in advance as there is provision of water and thus improved the animal welfare and handling of the animals. Animals on the day of the auction have very little stress as they would have already rested.

What is a farm crush?

This is not what it sounds like, and to be honest I don’t know why it is called a ‘crush’, but basically it is a device that holds big, heavy, strong cattle still, so that we can look after them without them (or us) getting injured.

Why is it called a bud box?

Unlike the other crowd pen designs, the BudBox, named after the originator, Bud Williams, is unique in how it makes our idea the animals’ idea so they willing do what we want, whether going up the chute to the squeeze, up the loading dock into the truck, through the trailer load out into the trailer, or onto the scale.

Do cows Test fences?

Electric fences require far less maintenance than other types of livestock fencing because the cattle don’t physically test the wires. Your primary damage comes from wildlife running into the cattle fence during the winter when wires are harder to spot or from trees falling on the fence.

What is a cattle drafter?

Draft / Drafting – Usually refers to separating cattle into different catorgories for branding, trucking or treating. Can be done on horseback or in a yard. Drafting – Can also refer to the sport of campdrafting. Fats – fat cattle ready to be sold for slaughter, can be either bullocks or cows.

What is a head bail?

Head Bail opens fully for easy walk through. Head Restrictor (yellow) – to restrict animal head movement up or down. All Galvanised Steel used. Bolts easily to Timber Race or Front of Crush.

What are the advantages of training animals to accept restraint voluntarily?

Training valuable breeding animals or animals used in long-term research studies to voluntarily enter a restraining device has many advantages. Stress on both animals and people will be reduced. Large animals that are trained to walk into a restraint device can easily be handled by one person.

Are cattle dips still used?

Cattle dips in many tropical and subtropical countries are used constantly the whole year through or at least during several months. The usual practice is that they remain filled the whole year through.

What is a cattle dip site?

Summary. Soil at many cattle tick dip sites is contaminated due to past use of arsenic and DDT. Arsenic was used as the tickicide in the dip solution up until 1955 when the ticks became resistant to it. … There are 1,648 dip sites scattered throughout the far North Coast of NSW, with a few dotted along the Qld border.

What is spray race?

An animal Spray race is that animal walk in a confined area (race) where a pipe system with many nozzles (usually 20 – 30) are fitted at certain intervals and at particular angles. The animals are wetted as they walk through the length of the race with dip-wash sprays coming through the nozzles.
