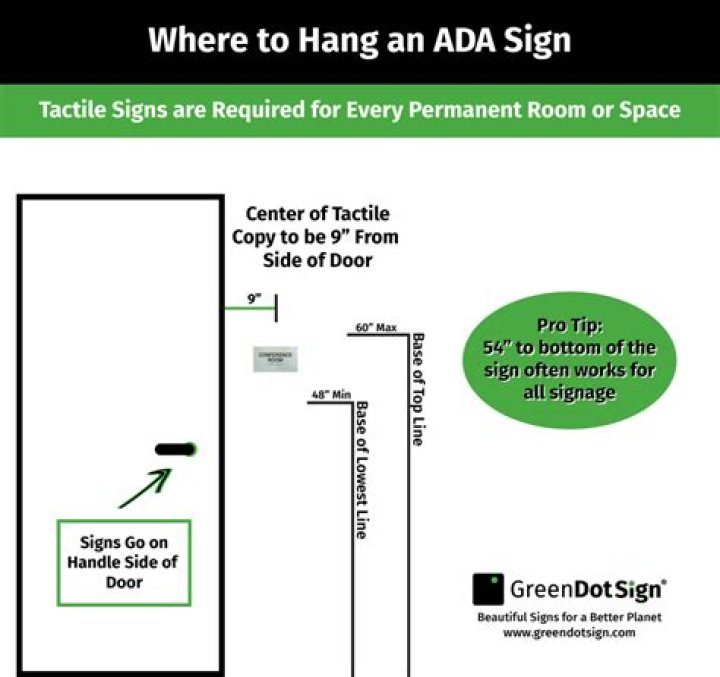

When choosing an appropriate height, it is good to know that ADA protocol requires the center of your sign to be 60 inches above your floor. For wall signs near a door, ADA requires signs to mount on the latched side of the door, about 2 to 3 inches from the door jamb.

What height should braille be?

Braille signs should be mounted a minimum of 48″ from the ground to the baseline of the lowest character and a maximum of 60″ from the baseline of the highest character.

How do you put a sign on a door?

1. Buy suction cups rated for the weight of your sign. …
2. Plug in a hot glue gun and let it heat up. …
3. Lay your sign face down on a surface. …
4. Press the suction cup to the wet hot glue (as long as the cup part faces outward) and hold it in place until it dries. …
5. Press the sign’s back to the door.

What makes a sign ADA compliant?

What’s required: For a sign to be considered ADA compliant, it must have a background and characters that do not create any glare. Usually, this is accomplished by using a matte, eggshell, or other type of non-glare finish.

What is ADA sink height?

Sinks. A sink should be mounted at a maximum 34” above the floor to the top rim with clear floor space underneath to allow for a forward approach. It is important to provide a knee clearance of 27” in height to the sink underside for at least an 8” depth.

What are ADA requirements for doors?

By ADA standards, the clear width of a door opening must be a minimum of 32 inches. This clear width measurement is taken between the face of the door and the stop of the frame with the door open to 90 degrees (Figure A). In pairs, at least one of the active leaves must comply with this clear width requirement.

Where do you hang ADA bathroom signs?

ADA signs must be mounted on the wall directly to the handle side of a door as listed in Section §703.4 of the Standards for Accessible Design. ADA compliant signs are usually positioned at doorways because doors are the point of entry into a permanent building space or area that requires identification.

Do all signs need Braille?

You may be surprised to learn that not all ADA signs require Braille. According to ADA Standards, Braille is only required on signs that identify a room, space or area—whether it’s accessible by the public or if it’s just for employees.

Do all signs need to be ADA compliant?

Do all signs need to be ADA compliant and have Braille and tactile letters? No, there are a number of signs that are not required to be ADA compliant. Building addresses, directories, parking signs and temporary signs don’t need to be ADA compliant.

How tall is a road sign?

“There is a minimum height of seven feet (from the ground to the bottom of the sign) so pedestrians can avoid hitting their heads on the bottom of the signs. And for signs mounted over actual traffic (lanes), the minimum is 17 feet to the bottom of the sign.”

Article first time published on

Do ADA bathroom doors swing in or out?

Current ADA Guidelines Current guidelines for bathrooms, published in 2010, allow the bathroom door to swing inward “as long as there is a clear floor space” beyond the door swing, when open.

What are bathroom vanity heights?

Traditional vanity heights in older homes range from 30 to 32 inches up from the floor. The modern trend is toward higher vanities, up to around 36 inches. For reference, that’s the standard counter height for kitchens.

How far does an ADA toilet have to be off the wall?

The clearance area must be 60” perpendicular from the side wall and 56” perpendicular from the rear wall for a wall mounted toilet (60” wide by 59” long for floor mounted toilets). This clearance can overlap certain elements, such as grab bars, dispensers, accessible routes, and clear floor space.

What is the ADA mounting height for a receptacle?

American Disabilities Act Requirement. The Code of Federal Regulations 28 Part 36 (American Disabilities Act) in Section 4.27. 3 states that electrical and communications system receptacles on walls shall be mounted no less than 15″ above floor. … 6 of the ADA.

Is a 34 inch door ADA compliant?

ADA REQUIREMENTS OVERVIEW: WIDTH AND HEIGHT REQUIREMENTS: By ADA standards, the clear width of a door opening must be a minimum of 32 inches and a maximum of 48 inches.

What is the maximum threshold height for ADA?

The ADA requirements for thresholds are: Thresholds, if provided at a doorway, must not exceed 3/4 inch in height for exterior sliding doors or 1/2 inch for other types of doors. Changes in level up to 1/4 inch can be vertical and do not need an edge treatment.

What is an ADA compliant door threshold?

Door thresholds that have a vertical height of ¼” or less are ADA compliant. Door thresholds can be modified with a transition ramp up to ¾” in vertical height. Any door threshold higher than ¾” in vertical height requires a level-landing.

Do ADA signs have to be blue?

So big of a rule that it is a common myth ADA signs must only be blue and white, or black and white.

Are pictograms required on restroom signs?

A pictogram is an international symbol made in the same fashion as tactile lettering. These are not required on all signs. Office signs and room numbers do not require pictograms, but signs such as restroom, phone and no-smoking signs do require them.

How do you make ADA signs?

The sign should use simple serif or sans-serif font with proper spacing between the letters to enable convenient reading. Contrast is also an area of concern. Your ADA-compliant sign should have robust light-to-dark contrast and vice versa. A sign that has low contrast may be more challenging to read.

Does braille need to be raised?

Braille is almost always placed below the corresponding raised characters, in all permanent rooms or spaces. In addition, any tactile sign or Braille sign shall be located on the wall, on the latch side of any single door to the room or space.

Can braille be vertical?

3.2. 1 The nominal height of braille dots shall be 0.019 inches [0.48 mm] and shall be uniform within any given transcription. … 3.1 The nominal distance from center to center of adjacent dots (horizontally or vertically, but not diagonally) in the same cell shall be 0.092 inches [2.340 mm].

Do stairwell signs need braille?

Stairwell Signs to Meet Your Specifications, Perfectly Our stairwell signs are made to order in the exact size, color and typeface, with braille options to meet your specific requirements. … Most every stairwell requires stairway identification signs / roof access signs.

How do you stick a sign on a glass door?

To adhere your signs to your glass surface, simply remove the protective plastic from the adhesive strips and affix the sign accordingly. Start with a clean mounting surface to ensure optimal adhesion and be sure to measure and mark the exact location of your sign prior to adhering.

Can you put a nail in a steel door?

4 Answers. It’s definitely not a problem. As @ChrisF mentioned, the best way is to drill a small pilot hole (1/8″ would probably be about right) and use a self-tapping screw. “Self tapping screws” suggest that you don’t need a pilot hole, but they’re really meant for sheet metal.

Can you put command strips on wood doors?

To what surfaces will Command™ Products stick? Painted, stained or varnished wood, glass, tile, painted cinder block, plaster, metal, and painted wallboard. Command™ Outdoor Products can also be used on smooth, sealed and finished surfaces including vinyl siding and fences, doors, windows, decks, gutters and trim.

How tall is a parking sign?

Most parking sign bought (and specified by local and federal standards) are 18” tall by 12” wide. That’s the most common size.

How tall should stop signs be?

Required Height According to the Manual on Uniform Traffic Control Devices for Streets and Highways, first published in 1935, the height of a stop sign must be at least 7 feet in urban areas and 5 feet in rural areas.

How tall is a street sign pole?

Street Sign Posts in Multiple Sizes We carry different sized green u-channel posts ranging from 4ft – 12ft. Our galvanized round sign posts come in sizes of 8ft, 10ft, and 12ft.

How do you hang an aluminum sign?

Aluminum signage can be hung, installed on a wall or placed in stands or frames. If optional drilled holes aren’t selected, holes can be easily drilled using a metal drill bit. Use rope, string, or bungees to hang, use screws with washers to attach to wood or concrete or use nuts and bolts to attach to posts.

What size is an ADA bathroom door?

ADA Bathroom Door Requirements According to the 2010 law, ADA bathroom doors need to be at least 32 inches (81 cm) wide, while the swing of the door can interfere with the clear maneuvering area about 12 inches (30 cm) max. The depth of the door shouldn’t exceed 24 inches (61 cm).
