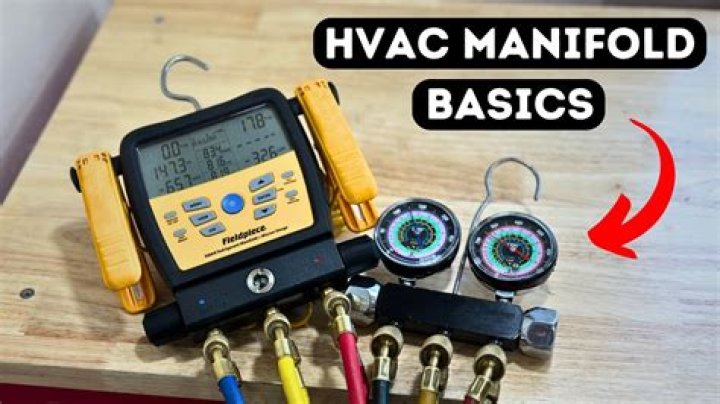

How Do Manifold Gauges Work? A manifold gauge works by sending a flow of gas through the set. The yellow hose can be connected to an external source, such as a vacuum pump or refrigerant bottle. Depending on the situation, the low-pressure blue valve and high-pressure red valve would be connected appropriately.

What should HVAC gauges read?

• Blue: This color stands for gauging the suction pressure of the compressor. The reading ranges from 0 to 99.9 psi and is based on variation in atmospheric pressure.
• Red: This denotes the time and reads the pressure from the hose.

Do you add refrigerant to the high or low side?

For systems under a vacuum, once the desired vacuum level has been reached, the vacuum pump has been isolated from the system, and no leaks exist, always charge liquid refrigerant in the high side of the system until high- and low-side pressures equalize and liquid stops flowing.

Which AC line is the high side?

The high side, or discharge line, will be the line connected to the compressor from the bottom or lower position. It will not be wrapped in insulation and will be warm to the touch. This is where freon exits the compressor as a liquid.

How should a gauge manifold set be purged when connecting to Schrader valves?

Describe how to purge a gauge manifold set when connecting to schrader valves. The gauges may be purged by opening the valves one at a time and releasing the air through the center hose. What tool is used to turn the stems on manual stem service valves?

Where is the best place to connect a vacuum gauge?

The most important thing to do when using a vacuum gauge is to connect it to a constant vacuum source on the engine. Some manifolds incorporate a plug that may be removed for such purposes. If none exists, the next best place to connect is the PCV hose.

What should AC gauges read R22?

R22 gauge pressure is 10.9 bar or 158.2 psi. High side pressure typically varies by equipment and metering controls. Low pressure or suction side typically varies by equipment. Low-pressure refrigerant turns on the carrier HVACR at 50 psi (R22 pressure at 30 degrees) and closes at 100 psi (R22 pressure at 85 degrees).

How do you read air compressor gauges?

The first of these gauges, on the left-hand side, shows the amount of pressure reserved for the tank. The second gauge, which is on the right, shows the amount of pressure that gets generated within the tank.

Why are there three ports on a heat pump?

The reason for that is that in heat mode, the large tube is the high side and you would not be able to check suction pressure without another port.

What is types of gauges?

• Plain Type Gauge.
• Snap Gauges or Gap Gauges.
• Ring Type Gauge.
• Limit Type Gauge.
• Pin Type Gauge.
• Caliper Type Gauge.
• Feeler Type Gauge.
• Screw Pitch Gauges.

Article first time published on

What is high side and low side in HVAC?

High side and low side refer to the pressures in the two halves of the system. AC works by compressing refrigerant in the compressor (the beginning of the ‘high side’), cooling in the condensor it, and then expanding it to absorb heat (where it enters the low side).

What are the pressures for 410A supposed to be?

A normally operating R-410A system with the same condensation temperature of 120 degrees and a 45 degree evaporator saturation temperature will have a high side pressure of 418 psig and a low side pressure of 130 psig.

Do you need special gauges for 410A?

When it comes to R- 410a, technicians will need new pressure gauges and new cylinders rated for the higher working pressures. With alternative HfC-blended refrigerants, technicians can use their current gauges and recovery cylinders rated for use with R-22.

What should R-410A pressures be?

For R-410A, a working pressure capability of at least 400 psi is recommended (this includes recovery cylinders). Standard DOT recovery cylinders rated for 350 psi should not be used.

Where is the low side of the AC?

The low side service valve is located in the line that runs from the compressor through the evaporator (firewall) and up to the condensor on the low pressure (suction) side of the system.

Which line is bigger liquid or suction?

The larger line typically carries a cool gas and is insulated. This is commonly referred to as the suction line, but it is also called the return line or vapor line. The smaller uninsulated line typically carries a warm liquid. It is most often called the liquid line.

What size are HVAC hoses?

Connection sizes are 1/4″, 1/4″-3/8″, and 3/8″. Hose colors are Black, Black/Red/Yellow/Blue, Blue, Red, Red/Blue/Yellow, Red/Yellow/Blue, Yellow, and Yellow/Blue/Red. Dimensions and styles vary per model.
