A 50 amp plug has four prongs – two 120 volt hot wires, a neutral wire and a ground wire – that supply two separate 50 amp, 120 volt feeds.

Is a 50 amp RV plug 110 or 220?

A 50 Amp RV plug is 220 Volts only if it has four prongs. Many of you ask if it is possible to use electrical appliances such as microwaves, ovens or hair dryers by connecting them to 220V.

Can you plug a 50 amp RV into a 110 outlet?

A 50 Amp RV plug is 220 Volts if it has four prongs on the male and female plug. Two being 110 Volt to neutral or ground and one prong being the neutral and the round prong the ground. The voltage between the two 110 Volt prongs should be 220 Volts.

How many wires are in a 50 amp RV cord?

Although a 50 amp service for a recreational vehicle, or RV, is connected to four wires and uses a four-prong plug, it is still a three pole service with only hot, neutral and ground connections. It is different from a conventional 120 volt service in that there are two 120 volt hot feeds, or legs, each at 50 amps.

Can I plug my 50 amp RV into my dryer outlet?

Although you can’t usually plug your RV straight into your house, one exception is that Class A motorhomes tend to operate on 50 amps. That translates to needing 240 volts of power, and you can plug those RVs into your dryer outlet. … You can then charge your motorhome just like you would at a campground.

What is the wire size for 50 amps?

50 AMP Wire Size For a maximum of 50 amps, you’ll need a wire gauge of 6. Fifty amp breakers are most often used to power many different appliances. However, a kitchen oven can alone require 50 amps. Many electric dryers also require a 50 amp breaker.

What size breaker do I need for a 50 amp RV plug?

GaugeAmperage6-gauge wire55 amps8-gauge wire40 amps10-gauge wire30 amps12-gauge wire20 amps

How far can you run a 50 amp cord to a camper?

How long are you talking about?? RV Cords are 25 feet in length. As long as someone sticks with the cord that came with the RV and one 25 foot extension, they will never exceed the 50 amp rating. However (there’s always one of those!), if the campground has exceeded code problems can and will occur.

Is a 50 amp RV plug 240v?

Even though the receptacle found in your RV is rated at 120 VAC, the 50-‐amp shore power is actually a 120/240 VAC four wire service (see Figure 1).

What size wire do I need for 50 amp 220 volt?

As you can see from the graph, a 6 AWG is the safe choice if you have a 220v 50 amp that you need to power, whereas a 12 gauge wire is perfect for your 220v 20 amp needs.

Article first time published on

Do RVS run on 110 or 220?

Yes, RV s are running 220 volts. For larger appliances (like an electric heater or water heater), they may use the 220V directly. For other appliances, they split the 220V into two 110V circuits. That requires a neutral wire on the 220V circuit, but a dryer socket would have that.

Can you plug a 50 amp RV into your house?

You can hook up an RV up to your home’s electrical system in one of two ways: You can ensure what you need is installed when you buy the RV, or you can install a 30/50 Amp hookup at home. … Turn off the breakers to your home, too. Plug the extension cord into your RV’s electrical hookups via an adapter, if necessary.

What is the standard RV electrical hook up?

To start with a 30 Amp system is the most common on RV’s. The plug on your RV is a large three-prong, heavy duty 30 Amp, 120-volt plug. Most campgrounds you go to will provide you with a 30 Amp outlet that your RV power cord will plug directly into.

How much does it cost to have a 50 amp outlet installed?

The length of the run is the most important factor in determining a true 50 Amp service. The figure is for the wire in the US. $50-$100 for breaker at service panel, and $60 for the outlet/service box to plug in.

How does a 30 amp to 50 amp RV adapter work?

You can plug a 30-amp RV cord into a 50-amp power receptacle, such as a power pedestal at a campground, by using an adapter. The female end of the adapter will plug into your RV cord, and the male end will plug into the power pedestal. Adapters come in two main styles: dogbone-style and plug-style, as seen below.

Will 8 gauge wire carry 50 amps?

8-gauge copper will handle fifty amps, but it will get hot (75 degrees C).

Can I add 50 amp breaker to panel?

Yes no matter where you put the breaker it connects into the bus bar that feeds your panel. Unless he is looking to use a 240 volt outlet, he will be using a single pole breaker and that should fit in any slot.

Can 10 gauge wire handle 50 amps?

A 10-gauge bare copper wire can carry a 50-amp load, but the resistance in the cable will cause it to heat up substantially.

What kind of wire do I need for a 50 amp welder?

A 50-amp circuit breaker and 6-gauge wiring is required for welders with 40 to 50-input Amps. Smaller welders can use a 10-gauge wire with a 30-amp circuit breaker.

Can I put a 50 amp breaker in a 100 amp panel?

The main breaker is usually a bonded double breaker and it shuts off power to the rest of the panel. A regular 50 amp breaker won’t due. As the panel is rated at 100 amps the 50 amp breaker can be used for any circuit in the panel.

How many amps can a 6 3 wire carry?

6/3 wire is a bare copper wire which carries current and carries a current of 55 Amps approximately.

What is a 50 amp plug used for?

A 50-amp breaker can run appliances like ovens, hairdryers, air conditioners, and multiple lights simultaneously while (possibly) still sparing power. The reason for this breaker’s capacity is because it can hold up to 12,000 watts running on a 240-volt circuit (50-amps x 240-volts).

What voltage is a 50 amp RV?

Almost ALL 50-amp wired RV’s use both sides of the service separately as 120 volt on each leg. Only a few mostly high-end coaches utilize the 240-volt from this same service.

Can you connect two 50 amp RV cords?

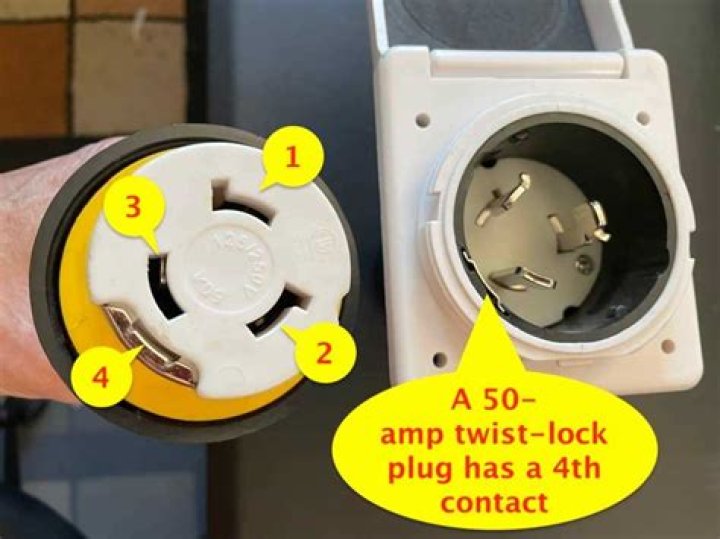

If you have two 50 amp shore power cords, a 50 amp 4-prong generator adapter can be used to connect the two cords together. That’s a different twist lock configuration- I don’t know the NEMA number off the top of my head, but the RV inlet has 3 blades plus the shell as a ground.

How long can an RV electrical cord be?

RV power cords are available on RVs in 15-amp, 30-amp, and 50-amp versions, usually in lengths of 25 or 50 feet.

Can you bury an RV extension cord?

Never bury an extension cord in the ground. The elements will eat through the insulation and cause a fire.

Can 12 gauge wire handle 50 amps?

RULES OF THUMB “Twelve-gauge wire is good for 20 amps, 10-gauge wire is good for 30 amps, 8-gauge is good for 40 amps, and 6-gauge is good for 55 amps,” and “The circuit breaker or fuse is always sized to protect the conductor [wire].”

How far can you run 240 volt wire?

14 AWG100 feet10 AWG128 feet8 AWG152 feet6 AWG188 feet
