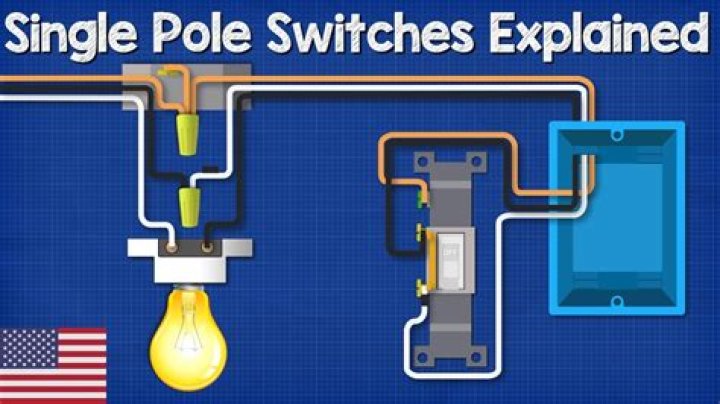

When wiring a single pole switch, it is only necessary to connect the black (power side) cable to the switch. The white (neutral) wire and the ground connection are always “on” or always connected to the light, even when it is turned off.

Where does power go on single pole switch?

When wiring a single pole switch, it is only necessary to connect the black (power side) cable to the switch. The white (neutral) wire and the ground connection are always “on” or always connected to the light, even when it is turned off.

Does single pole switch have neutral wire?

Question; A single pole switch does not need a neutral, so why would you want a neutral in the switch box? Answer; Because changes or additions might require a neutral. Since there is no neutral in the switch box you cannot; – Install a digital timer – Install a motion sensing switch.

Which wire is hot on single pole switch?

A single-pole switch has two brass terminal screws on the side that receive the black (“hot”) wires of the circuit. One black wire comes from the power source and the other goes to the light(s).

What is a single pole switch used for?

A single pole switch is used to control the light in a small closet or bathroom. It’s called a single pole switch because there are two wires connected or separated by the switch mechanism. There’s also a ground wire to protect against electrical faults.

Do single pole switches need grounding?

If you are replacing a switch a ground is not required, as per the above exception. However, if you’re installing a switch; replacement or otherwise, into a metal box that is grounded. The switch will be ground via the devices yoke and mounting screws. So if the metal box is grounded, the switch is also grounded.

What is a single pole switch?

A single pole switch has one input and one output, it has two states; “on” or “off”. They can be wired either normally open or normally closed and can be either latching or momentary. There are two types of single pole switch, these are “single-pole, single throw” and “single pole double throw”.

Does it matter where the hot wire goes on a switch?

One of the black wires is the “hot” from your circuit breaker panel and the other black wire goes to the light fixture (load). If you’re using a regular light switch, then it doesn’t matter which wire goes to which screw, since the switch is just opening and closing the circuit to make the light turn off or on.

Does the hot wire go on the top or bottom of a single pole switch?

Is it on the top or bottom of the switch – Quora. If you are speaking of a single pole switch, doesn’t matter. On a 2 pole switch, box mounted, technically it doesn’t matter, but good practices are line at the top, load at the bottom. If a disconnect switch, always line at the top, load at the bottom.

Which side of the switch is hot?

The black (hot) wire goes to the brass screw or into the hole in the back of the device on the same side as the brass screw. This wire is sometimes red. The green or bare copper (ground) wire, if the device has one, attaches to the green screw terminal on the switch or to the electrical box.

Article first time published on

How do I know if my switch is single pole?

Single-Pole Switch Its characteristic on/off markings on the toggle aren’t found on other switches. However, some styles of single-pole switches (notably, rocker-style switches) do not have on/off markings. A single-pole switch has two brass-colored screw terminals that are connected to the hot, or power-source, wires.

What does single pole wiring mean?

Single-pole switches have two brass terminal screws and a toggle labeled ON and OFF. … This type of light switch controls one light fixture (or electrical outlet) from a single location. When installing, always connect two hot wires to it, not two neutrals.

What happens if you wire a light switch wrong?

But here’s the catch: If you connect the circuit wires to the wrong terminals on an outlet, the outlet will still work but the polarity will be backward. When this happens, a lamp, for example, will have its bulb socket sleeve energized rather than the little tab inside the socket.

What happens if a switch isn't grounded?

So there you have it, your home may opt for screws, cables, or grounded boxes, but your switches should all have a ground outlet to ensure your safety is secured. Without it, you put your body at risk of completing a circuit holding lethal electrical charges.

What happens if a light switch doesn't have a ground wire?

For a normal light switch, the ground is a safety feature, not necessary for operation. You can leave that screw unconnected if you don’t have a ground wire, or if you have the wire but no screw on the switch, you can ground the switch another way.

Which wire is hot when both are black?

The black wire is the “hot” wire, it carries the electricity from the breaker panel into the switch or light source. The white wire is the “neutral” wire, it takes any unused electricity and current and sends it back to the breaker panel.

Why is there two black wires in light switch?

You should see two black wires, each connecting to a different screw on the side of the switch. These are called terminal screws. … These are ground wires.

Why are both wires black?

The United States has strict codes relating to home wiring, including clearly defined colors on the outer casing of the wires. Black means hot, white signifies neutral, and green indicates ground. However, if you need to rewire a light switch or a plug socket, you may occasionally come across two black wires.

Can I replace a double pole switch with a single pole switch?

There are two different types of switches: the single pole and the double pole switch. … A double pole switch can be used to control light and a fan or 2 lights on separate circuits. It is easy to wire a double pole switch to work as a single pole switch because only one side is used instead of both.

Can I replace a double pole socket with a single pole?

The single pole should be safe, that is why it is allowed. The double might help if for some obscure reason neutral became live. Or for testing and the like where it really does disconnect the appliance. You can not reliably test with things conected to neutral.

Can a 3-way switch be wired as a single pole?

In order for a 3-way switch to function as a single pole, the wires need to be connected to the common and one of the traveler terminals. It will not work if the wires are connected to the two traveler terminals. … 3-way switches can be converted to single pole in several configurations.

How are three-way switches wired?

What happens if you wire a 3-way switch wrong?

Finding the common wire: When wiring a 3-way light switch, you'll need to find the common wire and connect it to the common screw. If you don't correctly connect this wire, then your lights won't work from more than one switch. ... Since impr
