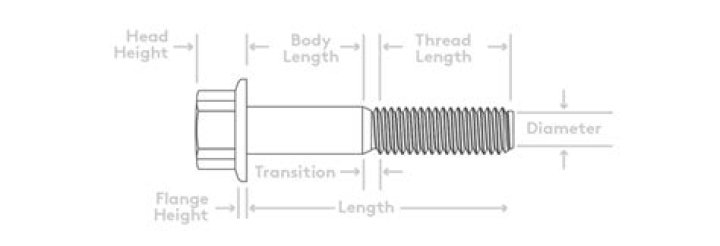

General. Fastener length is generally measured from the point where the surface of the material will be when the fastener is installed to the end of the fastener.

When measuring the length of a bolt Do you include the head?

Does the length measurement of a bolt include the head? In most cases, when specifying the length of a headed bolt, the thickness of the bolt head is not included. For instance, if you were to order a ¾” x 24” hex head bolt, the bolt would measure 24” from under the head.

How do you read bolt sizes?

Unified screw diameters are measured in inches — lowest to highest as 0 to 10. Measurements equal 0.060″ + 0.013″ x measured diameter. For example: 4-30 x . 10 has a major diameter of 0.112″.

What does M8 20 mean?

Here’s what the description means… M = Metric thread designation. 8 = Nominal diameter, in millimeters. 1.0 = Pitch (distance from thread to thread), in millimeters. 20 = Length, in millimeters (see below)

What is a M8 screw?

The defined diameter of metric bolts is actually slightly larger than the actual diameter of the bolt shaft. So an M8 bolt would have a shaft diameter that’s slightly under 8mm which means that the bolt should fit through an 8mm hole.

What is the length of a bolt?

Bolt Diameter (mm)Standard Thread Length (mm) *Bolts 125mm and shorterBolts longer than 125mm516226182472026

What is a M5 screw?

Terms used for Threads In the case of a metric thread, the bolt is named in accordance with its outer diameter e.g a bolt with a 5 mm outer diameter is known as an M5 bolt. The “Pitch” of the tread is another important feature of a thread. The pitch is defined as the interval (distance) between adjoining threads.

What does M16 bolt mean?

Metric bolts are made fractionally under their stated size, for instance an M16 bolt will have a shank diameter of typically 15.97mm. This means that a 16mm bolt will fit through a 16mm hole but to allow for misalignment between parts it is common practice to drill bolt holes slightly larger.

What does 8.8 mean on a bolt?

So, in English, a PC 8.8 bolt is a bolt with a nominal tensile strength of 800 MPa and a nominal yield strength that is 80% of the bolt’s nominal tensile strength, or 640 MPa.

Are M8 and 5/16 the same?

Well, quick answer is no. They are not the same and they are not interchangeable, although they can work under certain circumstances. The most important part is understanding the meaning of M8 and 5/16 to refer to the size of a metric screw or bolt, so then we can see why they aren’t the same thing!

Article first time published on

What does a #8 screw mean?

Their size is described as diameter, number of threads per inch (if used with a nut or in a threaded hole), and length in inches. … In all cases, the larger the number, the larger the size. Consequently a #8 screw is larger than a #4 screw, just as a 3 inch bolt is larger than a 2 inch bolt.

How can you tell if a bolt is metric or standard?

Telling the difference between a metric and imperial bolt is easy. If the bolt has lines on the head its standard or imperial. If the bolt has numbers on the head then its metric.

What do the numbers on a bolt mean?

There are several grades of bolts but the three common grades for SAE are 2, 5 and 8. The common class (grades) for metric are 5.8, 8.8, 10.9 and 12.9. Each grade has a specific bolt strength. No matter the system used to grade the bolts, the higher number means the stronger the bolt.

How do you measure bolt thread count?

1. Measure screw diameter, or screw size, by measuring the width of the threaded part of the screw. This corresponds to the first number of the thread size. …
2. Measure thread spacing. This corresponds to the second number of the thread size.

How many threads are in a inch?

Bolt SizeThreads Per Inch (TPI)Coarse Thread UNCFine Thread UNF7/8″9141″812*1-1/8″712

How are inch threads measured?

1. Measure an inch-long portion of the threaded area. Grab a ruler and lay it along the bolt or screw. …
2. Count the number of threads in 1 inch. …
3. Measure the diameter and the length of the threaded area. …
4. Plug the information into a standard measurement.

What size is M18 bolt?

Diameter (d)PitchHead Depth (k)M142mm8.8mmM162mm10mmM182.5mm11.5mmM202.5mm12.5mm

What size head is on a 7/16 bolt?

DiameterHead Size7/16″5/8″1/2″3/4″9/16″13/16″5/8″15/16″

Is M8 screw 8mm?

There is an M sized bolt or screw that is 8mm in diameter. It is roughly the same as a 5/16 bolt or screw.

What does M stand for screws?

The standard metric rack screw is called M6 x 1. The ‘M’ means it’s metric. The ‘6’ is the outside diameter measured in millimeters, and the ‘1’ is the distance between adjacent threads, also in millimeters. Metric threads are used outside of the USA, and commonly in products by HP and other global entities.

What are M4 screws?

They’re made from a durable carbon steel and come with a nut for tightening metal surfaces together. The M4 machine screw has a thread diameter of 4 millimetres, in simple terms the M stands for millimetres followed by the size – in this case 4 mm.

What does M12 mean?

6. Those are metric screw dimensions. M10 means a 10 millimeter outer diameter for the bolt or whatever piece it is; M12 means 12 millimeters. The part after the ‘x’ is the pitch — how many mm a thread is wide. To figure out which you have, you can measure the existing part with calipers and a thread gauge.

What size is an M4 bolt?

Thread SizeNominal Diameter (mm)Effective Diameter (mm)M44.03.545M4.54.54.013M55.04.480M66.05.350

What size head is M8?

SizeDiameterHead DiameterM4-0.74.007.00M5-0.85.008.50M6-1.06.0010.00M8-1.258.0013.00

How long is M8 bolt?

Bolt Diameter125mm and ShorterLonger Than 125mmM51622M61824M72026M82228

What is nominal length of bolt?

The nominal length of a screw is the length or size which is used to define the length of the fastener, it is the name of the screw size, and not necessarily the overall length of the component.

What does Ty mean on a bolt?

The “TY” could be a distributor who has cheap bolts made in some other country (private label).

Is a 4.8 Bolt strong?

Bolts strength grade: Y is the yield strength ratio) as specified in the label. For grade 4.8, the tensile strength of the bolt is 400 MPa and the yield strength is 400*8/10=320 MPa.

What does JDF stand for on a bolt?

This is a great 8 bolt. Again you see JDF on that bolt on the top. Those initials again are manufacturers marking to indicate that this is their bolt and then you see 1, 2, 3, 4, 5, 6 slashes indicating it’s a grade 8.

What is M10 bolt size?

If the size is M10 x 25, that would mean that the diameter is 10 mm. Since there is no thread pitch listed, the fastener is assumed to have a coarse thread. The 25 indicated a length of 25 mm. A matching nut would be labeled M10, which also doesn’t require a thread pitch since it’s a course thread fastener.

What size is M10 nut?

FinishNaturalNut Width A/F (J)17mmNut Width A/P (P)19.55mmThread Pitch1.5mmThread SizeM10 (10mm)
