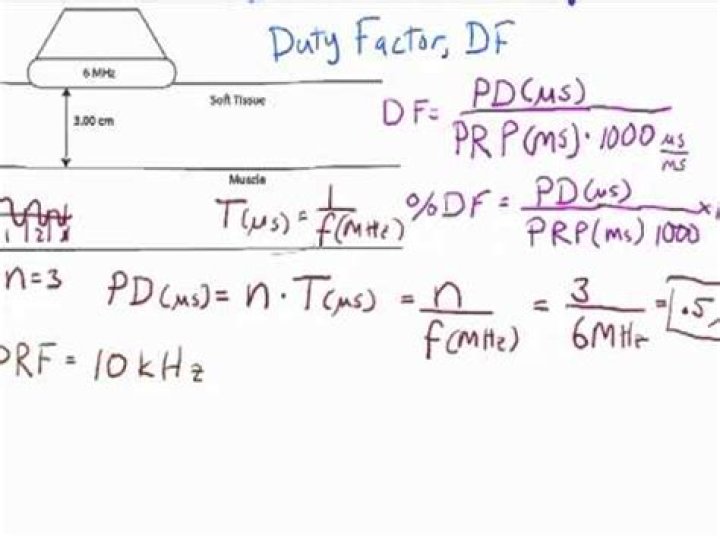

Duty Factor is calculated via the following equation – DF (%) = (PD ( s) / PRP ( s)) x 100 In these examples you are given the PRP so you need to determine the pulse duration.

How is duty cycle calculated?

Determine the duty cycle, represented by “D,” through the formula D = PW/T. As an example, if PW is 0.02 seconds and T is 0.05 seconds, then D = 0.02/0.05 = 0.4, or 40%.

How do you calculate Toff and Ton?

This is the formula I used: Duty Cycle = (Ton/(Ton+Toff))*100; I put PulseIn function to get the number of microseconds needed to complete ON and OFF period separately. Then add ON and OFF and take F = 1/T formula to get the frequency.

How is PW duty cycle calculated?

Duty is literally the proportion of 1s to 0s output by the PWM command. To determine the proportional PWM output voltage, use this formula: (Duty ÷ 256) x 5 V. For example, if Duty is 100, (100 ÷ 256) x 5 V = 1.953 V; PWM outputs a train of pulses whose average voltage is 1.953 V.

How do you calculate PWM frequency?

Frequency of a PWM output is = 1/Period. Resolution of a PWM output is the granularity with which the duty cycle can be modulated. TOSC = oscillator period Authors: Stan D’Souza and Sumit Mitra Microchip Technology Inc. (PR1 = 18h), then PWM frequency is: 1/(100 x 62.5) ns = 160 kHz.

What is duty chopper cycle?

Answer: The total time period of one cycle of output waveform is constant. The average output voltage is directly proportional to the ON time of chopper. The ratio of ON time to total time is defined as duty cycle. It can be varied between 0 and 1 orbetween 0 and 100%.

What is a 100% duty cycle?

A 100% duty cycle simply means the compressor will deliver a consistent CFM and PSI the entire time the compressor is in use, which is different than being able to run continuously.

What is the difference between duty cycle and frequency?

Frequency is how often a signal switch between low voltage and high voltage. Frequency is expressed in cycles per second, or Hz. Duty cycle is percent of time that the signal stays at high level. It is typically expressed as the percentage of the period.

What is the duty cycle when receiving a 1.5 ms pulse every 20 ms?

A typical servo motor expects to be updated every 20 ms with a pulse between 1 ms and 2 ms, or in other words, between a 5 and 10% duty cycle on a 50 Hz waveform. With a 1.5 ms pulse, the servo motor will be at the natural 90 degree position.

How is duty cycle of PWM calculated Arduino?

Duty Cycle = (Ton/(Ton+Toff))*100; I put PulseIn function to get the number of microseconds needed to complete ON and OFF period separately. Then add ON and OFF and take F = 1/T formula to get the frequency.

Article first time published on

How do you calculate ton time?

Ton= Duty cycle(D)/switching Freq(F). In my case, the Ton= (0.333/50KHz)= 7us.

What is duty cycle in digital electronics?

Duty cycle is the ratio of time a load or circuit is ON compared to the time the load or circuit is OFF. Duty cycle, sometimes called “duty factor,” is expressed as a percentage of ON time. A 60% duty cycle is a signal that is ON 60% of the time and OFF the other 40%.

What is the duty cycle of PWM?

PWM Duty Cycle Duty cycle is the amount of time a digital signal is in the “active” state relative to the period of the signal. Duty cycle is usually given as a percentage. For example, a perfect square wave with equal high time and low time has a duty cycle of 50%.

How do you calculate PWM resolution?

Resolution of a PWM output is the granularity with which the duty cycle can be modulated. TOSC = oscillator period Authors: Stan D’Souza and Sumit Mitra Microchip Technology Inc. (PR1 = 18h), then PWM frequency is: 1/(100 x 62.5) ns = 160 kHz. Note however that the duty cycle resolution is a little less than 7-bits.

What is PWM 8bit?

A Pulse Width Modulated (PWM) signal with a max resolution of 8-bit, can be applied to the CTRL pin to change the output current to a value above or below the nominal average value set by resistor RSET.

What does 40% duty cycle mean?

Duty cycle is the amount of time it may be operated at a given output without exceeding the temperature limits of its components, and it is measured using a 10-minute cycle. In our example, the welding machine has a duty cycle of 40% at when MIG welding at 285 amps/28 volts.

How is high duty cycle calculated?

Duty Cycle = Pulse Width (sec) * Repetition Frequency (Hz) * 100.

What does 75 duty cycle mean?

75% Duty Cycle Air compressors with a 75% duty cycle will run for three-fourths of the total cycle time. In other words, if a compressor has a 60-second cycle time, it will run pressurized air for 45 seconds of each minute.

Does duty cycle affect frequency?

The percentage duty cycle specifically describes the percentage of time a digital signal is on over an interval or period of time. This period is the inverse of the frequency of the waveform.

What is the unit of duty cycle?

The duty cycle can be expressed as a ratio or as a percentage. Suppose a disk drive operates for 1 second, then is shut off for 99 seconds, then is run for 1 second again, and so on. The drive runs for one out of 100 seconds, or 1/100 of the time, and its duty cycle is therefore 1/100, or 1 percent.

Is duty cycle measured in percentage?

Duty cycle is measured in percentage of ON time. Example: A 60% duty cycle is a signal that is on 60% of the time and off 40% of the time.

How do you calculate helicopter efficiency?

For a duty cycle of 0.4, the power taken by the chopper is 2097 Watts. Find the chopper efficiency. Take the voltage drop across the chopper switch as 2 V. η = Po/Pi = 99.14 %.

What is the duty ratio of a chopper?

What is the duty cycle of a chopper ? Explanation: It is the time during which the chopper is on (Ton) relative to the whole period (T = Ton+Toff). Explanation: The output voltage can be changed by changing the duty cycle (Ton/T). Explanation: The duty cycle is between 0 and 1.

Can you control servo speed?

The first thing to remember is that servos are not inherently speed controlled. You’re sending the servo a position signal, and the servo is trying to get to that position as fast as possible. However you can reduce the speed of the servo by sending it a series of positions that lead to the end position.

What is the disadvantages of PWM?

Drawbacks or disadvantages of PWM ➨Instantaneous power of transmitter varies. ➨The system requires semiconductor devices with low turn-ON and turn-OFF times. Hence they are very expensive. ➨High switching losses due to higher PWM frequency.

Do digital servos use PWM?

Both of them take same user input which is generally pwm pulse ranging from 800ms-2200ms. The difference is inside servo. Higher motor update rate gives more precise and fast control. You can also refer here.

How is the duty cycle of a Mosfet calculated?

In the equation duty cycle=(Ton+ 2Tsw)/ T, we can get Tsw from Mosfet datasheet(typical switch off time), T is the switching period operation in a given converter.

Is PWM and duty cycle the same?

A PWM signal is a method for creating digital pulses to control analog circuits. There are two primary components that define a PWM signal’s behavior: Duty cycle: A duty cycle is the fraction of one period when a system or signal is active. … A period is the time it takes for a signal to conclude a full ON-OFF cycle.

Is pulse width same as duty cycle?

Electrical and electronics In electronics, duty cycle is the percentage of the ratio of pulse duration, or pulse width (PW) to the total period (T) of the waveform. … For example, if a motor runs for one out of 100 seconds, or 1/100 of the time, then, its duty cycle is 1/100, or 1 percent.

How does arduino calculate frequency?

Step 4: Formula Used to Calculate Frequency In the program of Arduino Frequency counter we used f=1000000/pulseTotal. pulse Total is nothing but, a Time period of Signal(T). microseconds(us)=10^-6,So the formula is written as f=1/Tx10^-6. So finally the formula for arduino frequency counter is given as f=1000000/T.

What is a PWM value?

Pulse Width Modulation, or PWM, is a technique for getting analog results with digital means. Digital control is used to create a square wave, a signal switched between on and off. … The duration of “on time” is called the pulse width. To get varying analog values, you change, or modulate, that pulse width.
