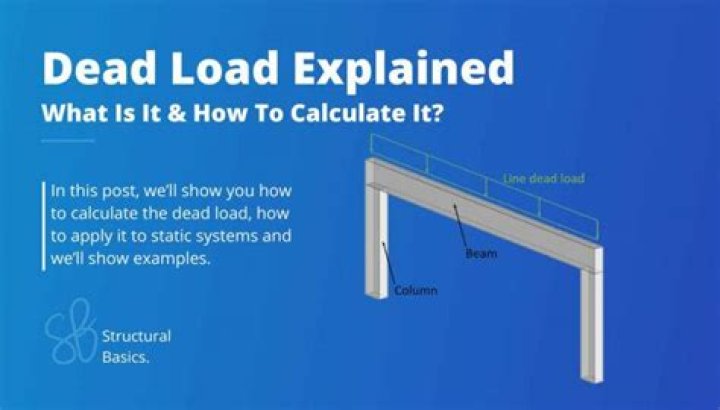

The dead load of a floor or of a roof is generally given in terms of load per unit area (i.e. pounds per square foot or kilo newtons per square meter). The total dead load on a building is determined by adding together all of the various dead loads of the building’s elements.

How is floor loading calculated?

Add an allowance for partitions (normally added on top of the imposed floor loading, for example you might have a total Imposed Floor Load = 3.5kN/m2, made up of 2.5kN/m2 + 1.0kN/m2 for partitions)

How are dead and live loads calculated?

1st floor live load:40 psf x 12 ft = 480 pounds per lineal foot2nd floor live load:30 psf x 12 ft =360 pounds per lineal foot2nd floor dead load:10 psf x 12 ft =120 pounds per lineal foottotal load:=1160 pounds per lineal foot

What is a typical residential floor dead load?

Generally, the customary floor dead load is 10-12 PSF (pounds per square foot) for floors, 12-15 PSF for roof rafters and 20 PSF for roof trusses. However, these may increase when a heavy finish material, such as brick veneer walls or tile floors/roofs, is specified.

What is the standard floor load?

U.S. building codes specify a uniform live load of 40 pounds per square foot (psf) for most residential floor designs. This load is intended to account for the large number of loads that can occur in a residence. In reality, these loads do not typically take the form of uniform loads.

How do you calculate structural load?

Dead Load Calculation for a Building Dead load = volume of member x unit weight of materials. By calculating the volume of each member and multiplying by the unit weight of the materials from which it is composed, an accurate dead load can be determined for each component.

What is maximum floor load?

Floor load capacity is the total maximum weight a floor is engineered to support over a given area. In the U.S. it is expressed as pounds per square foot. Floors are engineered to carry a maximum static load and a maximum dynamic load that can’t be exceeded without the risk of compromise to the structure.

What are floor loads?

n. The amount of weight a structure’s floors can bear, including the dead weight and the live load.

How do you calculate the load of a building PDF?

1. Volume of Concrete = 0.23 x 0.60 x 3 =0.414m³
2. Weight of Concrete = 0.414 x 2400 = 993.6 kg.
3. Weight of Steel (1%) in Concrete = 0.414x 0.01 x 8000 = 33 kg.
4. Total Weight of Column = 994 + 33 = 1026 kg = 10KN.

How much weight can 2x10 floor joists support?

Each 2×10 will support 1,200 lbs.

Article first time published on

How do you calculate load capacity?

1. Add together the wattage capacity of all general lighting branch circuits.
2. Add in the wattage rating of all plug-in outlet circuits.
3. Add in the wattage rating of all permanent appliances (ranges, dryers, water heaters, etc.)
4. Subtract 10,000.
5. Multiply this number by . …
6. Add 10,000.

How much weight can floorboards take?

A modern house is designed to support a floor load equivalent to 150kg per square metre (1.5kN/m2). That’s a maximum, but permissible over the whole floor area.

How much weight can a 2nd floor hold?

The load capacity of a second floor in a home is regulated at 40 lbs. per square foot. For bedrooms, the capacity is 30 lbs. per square foot.

How much weight can a plywood floor support?

Span RatingThicknessMaximum Live Load16 oc19/32 inches185 pounds24 oc19/32 inches270 pounds20 oc23/32 inches240 pounds32 oc7/8 inches295 pounds

What is a dead load in construction?

Definition of dead load : a constant load in a structure (such as a bridge, building, or machine) that is due to the weight of the members, the supported structure, and permanent attachments or accessories.

How do you calculate the dead load of a brick wall?

1. Density of brick wall with mortar is about ranging between 1600-2200 kg/m3. So we consider self weight of brick wall is 2200 kg/m3 in this calculation.
2. A) volume of brick wall. Volume of brickwall = l × b ×h. Length = 1 meter. …
3. B) dead load of brick wall. Weight = volume × density.

How do you calculate beam loads on a floor?

Multiply the loading per square foot by the area in square feet of the surface which the beams will be supporting. Divide by the number of beams which will be installed to get the loading per beam.

Can I do my own structural calculations?

Can You Do Your Own Structural Calculations? Structural engineering is a field of study that helps learn an individual learn about what goes into making a building. Unless you have studied and had relevant experience in the field, it is not possible to perform the structural calculation.

How do you calculate load bearing capacity of a building?

1. Loads on the RCC Slab. Self-weight= concrete unit weight * Volume of concrete. = 24 * 0.1= 2.4 KN/m2 …
2. Loads on the Beam. Self-weight= concrete unit weight* beam width*beam height. =24 * 0.28*0.25= 1.68 KN/m. …
3. Compute Applied Moment. Assume partial fixity of columns. …
4. Geometry of the Original Section.

How far can a 2x10 span without support?

A 2×10 beam – made up of two 2x10s nailed together – can span up to 11′ without support beneath a deck that is 4′ wide. For a more normal-sized deck, the same beam can span 8′, supporting a deck that is 8′ wide.

How much load can a 2x12 support?

A 2×12 can hold approximately 180 pounds per foot or approximately 2,100 pounds in total.

How far can a 2x10 span for a floor?

Douglas fir 2-by-10 joists graded as “Structural Select” allows joist spans up to 21 feet for a live load of 30 pounds per square foot when spaced 12 inches apart, 19 feet 1 inch for 16 inch spacing and 16 feet 8 inches for 24 inch spacing.

How do you calculate the dead load of a slab?

Dead load = volume of member x unit weight of materials By calculating the volume of each member and multiplying by the unit weight of the materials from which it is composed, an accurate dead load can be determined for each component.

How do you calculate the dead load of a concrete slab?

The dead load of a concrete member is calculated by multiplying the volume of the concrete element by concrete unit weight.

What's the difference between live load and dead load?

The dead loads are permanent loads which result from the weight of the structure itself or from other permanent attachments, for example, drywall, roof sheathing and weight of the truss. Live loads are temporary loads; they are applied to the structure on and off over the life of the structure.

Can furniture be too heavy for floor?

The answer is that, absolutely, weight can cause a floor to collapse. Often, the older the building, the less the floor will be able to support, because many materials weaken with age. Even within a floor, there are wide variations in weight limits.

How much weight can the average bedroom floor hold?

Floors in designated bedrooms must support up to 30 lb. per square foot. Non-sleeping rooms have floors that can handle up to 40 lb. per square foot.

Can I have a home gym upstairs?

So yes, you can create a home gym on a second or upper floor but with caution and preparation. Get the total weights of the machine(s) and the weights that you will be adding to them (if you are) so that you have a number of the weight that you are adding to the space upstairs.
