Fuel injectors are located in the intake manifold and spray fuel through a tiny nozzle. The fuel injector uses a special nozzle to spray the fuel as mist, instead of a strong jet stream. … When the throttle valve opens, your fuel injector sprays fuel to mix with the air and then enters the engine’s combustion cylinders.

What is a fuel injector and how does it work?

Fuel injectors spray fuel into a car’s engine using electronic controlled valves, capable of opening and closing many times a second. They have an atomising nozzle that distributes the petrol or diesel evenly, for optimum combustion and efficiency.

What controls the operation of the injector?

The amount of fuel supplied to the engine is determined by the amount of time the fuel injector stays open. This is called the pulse width, and it is controlled by the ECU. The injectors are mounted in the intake manifold so that they spray fuel directly at the intake valves.

What activates a fuel injector?

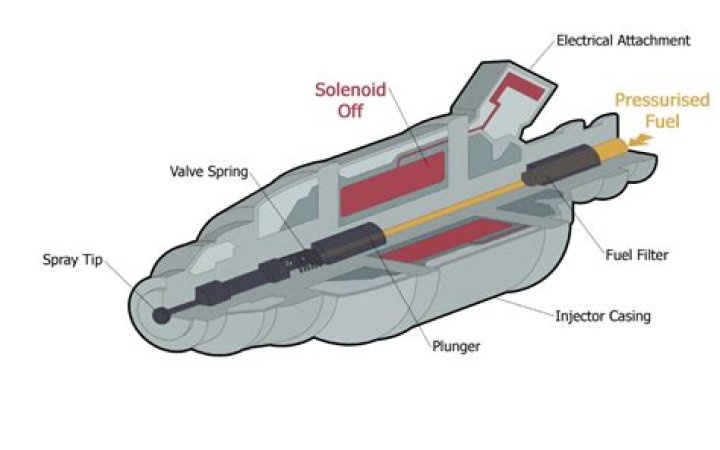

One pin is connected to the battery through the ignition relay and the other pin goes to the ECU. The ECU sends a pulsing ground to the injector, which closes the circuit, providing the injector’s solenoid with current. The magnet on top of the plunger is attracted to the solenoid’s magnetic field, opening the valve.

How does a mechanical fuel injector work?

How does it work? … Mechanical fuel injection works with a simple throttle-controlled air valve and a fuel pump, usually running at one-half engine speed. After pulling fuel from a vented fuel tank, the fuel is delivered through a barrel valve that controls the amount of fuel with the position of the air valve.

What causes damage to fuel injectors?

Fuel injectors typically fail due to a buildup of contaminants such as carbon. Carbon build-up can cause a clogged or partially clogged injector, preventing the injector from closing all the way. … Fuel injectors can also leak externally as a result of dry, cracked rubber seals, or cracks within the injector itself.

Where are fuel injectors located?

In general though, fuel injectors are located in the head of the engine and are threaded into the combustion chamber with the nozzle inside. Engines have several fuel injectors and they are often connected to a fuel rail that provides the numerous injectors with equal amounts of fuel.

What controls the fuel injector pulse?

What controls the fuel injector pulse? At present, the pulse injector operates based on the PWM pulse mode controller. Specifically, the fuel injector will receive a signal from PWM to open the electromagnet and move the piston. From there, under the action of pressure, the fuel will escape in the form of tiny drops.

Why do fuel injectors fail?

Why do fuel injectors go bad? … Fuel injectors will fail when debris (water, dirt particles, etc.) or rust find their way into the system and, after time, plug up the nozzle, the armature, or the nozzle needle gets stuck.

How does the diesel injector work?

The fuel injection system lies at the very heart of the diesel engine. By pressurising and injecting the fuel, the system forces it into air that has been compressed to high pressure in the combustion chamber. … injection nozzle – injects the fuel into the cylinder. feed pump – sucks fuel from the fuel tank.

Article first time published on

What is mechanical injector?

Mechanical fuel injection is a type of fuel delivery system that, as the name implies, relies primarily on mechanical methods to inject fuel into an engine. It preceded. electronic fuel injection. and was designed to offer a more consistent method of delivering fuel.

What are the three types of fuel injection systems?

• Single-Point or Throttle-Body Injection. …
• Port or Multipoint Fuel Injection. …
• Sequential Fuel Injection. …
• Direct Injection.

What are the parts of a fuel injector?

The major parts of fuel injection system are divided into two which include low-pressure and high-pressure side, the low-pressure parts are the fuel tank, fuel filter and fuel supply pump. While the high-pressure side include high-pressure pump, fuel injector, accumulator, fuel injector nozzle.

How does fuel system work?

The pump forces fuel through the fuel lines that deliver fuel from the tank to the engine for combustion. … Once passed through the fuel filter, the fuel reaches the engine and is in injected into the combustion chamber to create combustion utilizing fuel injectors.

How much does a fuel injector cost?

Replacing a Fuel Injector is definitely not cheap. It will differ quite a bit based on where you live, what brand you want to use and where you install it. But you can expect to pay up to $350. The parts themselves are up to $200 at most, so the rest will be installation and labor related to this process.

How long do fuel injectors last?

The fuel injectors on your car will typically last between 50,000 and 100,000 miles. The length of time that the injector lasts has a lot to do with the type of gas that is used in the car and how often the various fuel filters are changed.

What are the symptoms of bad fuel injectors?

• The Engine Misfires. Dirty fuel injectors may cause your vehicle’s engine to misfire. …
• Idling Gets Rough. Does your vehicle sputter and shake when you’re at a stop sign or sitting in traffic? …
• Your Gas Mileage Tanks. …
• The RPM Needle Starts to Dance. …
• Your Car Won’t Start.

What is injector circuit?

The fuel injector circuit controls the fuel injectors and commands how much fuel and when to spray the fuel. This code is set when the ECM detects out-of-range sensor performance for either the voltage or resistance of the injector circuit.

Can fuel injectors be repaired?

Dead fuel injectors cannot be repaired and should be replaced with the exact same unit.

How do you clean fuel injectors without removing them?

1. Locate the fuel rail on the fuel injector. …
2. Disconnect the fuel rail. …
3. Fill the fuel injector cleaning tool with a cleaning solution. …
4. Attach the cleaning tool to the hood. …
5. Connect the outlet pipe to the fuel rail. …
6. Remove the fuel pump relay from the fuse box.

Can you drive a car with a bad fuel injector?

While fuel injector problems usually give warning, driving your vehicle for a long time with a clogged or faulty fuel injector can cause problems. … Increased fuel consumption. A noticeable increase in tailpipe smoke and emissions. Rough idle and hesitation during acceleration.

Are fuel injectors expensive?

While the price varies for every vehicle, the bad news is that in all cases, it’s expensive. New fuel injectors range from several hundred dollars for basic vehicles up to over $1,000 for high-end vehicles and performance vehicles that require high fuel delivery rates.

Which fuel injector cleaner is best?

Best overall fuel injector cleanerBrandChevronNameTechron Concentrate Plus Complete Fuel System CleanerSize12 ouncesPrice$4.94

How do you keep fuel injectors clean?

1. Pour bottle contents into the gas tank.
2. Add a full tank of gas.
3. For ideal results, use a second bottle at the next fill up.
4. Use another bottle every 7,000 miles OR at every oil change.

Is there a fuse for fuel injectors?

So, the injector fuse and relay are usually located; in the relay box or power distribution center in the engine compartment. Fuses are used to protect various electrical circuits, while supplying power to components. They help the fuel pump, fuel injection and computer systems; from suffering a short circuit.

What voltage do fuel injectors operate at?

They should all be around 12 volts. A lower reading means there is excess resistance in the wire somewhere. Hopefully, these tests have allowed you to find the issue with your fuel injectors; but, as mentioned before, it may not be an electrical problem that is causing the injector to malfunction.

How do injector nozzles work?

Injector nozzles interact with Pistons in Combustion Chambers. When the Piston is drawn away from the Sparkplug, the Injector Nozzle sprays a fuel and air mixture into the Combustion Chamber. Injector Nozzles can be thought of as the “heart” of the engine.

What is port fuel injection?

Port fuel injection has been around since the 1980s and means that fuel is delivered to the engine directly into the intake manifold or cylinder head. Fuel is sprayed on the valve, which then uses the heat from the valve to further atomize the fuel.

How are the injection system classified?

TYPES OF INJECTION SYSTEMS There are basically two types of injection systems: Air injection system and solid injection system. Air Injection System: In this system, fuel is forced into the cylinder by means of compressed air. This system is little used nowadays, because it requires a bulky multi-stage air compressor.

What is the most common fuel injection system?

As technology advances, direct injection engines may become easier to manufacture, but, for now, sequential multi-port injection remains the most common fuel injection system in cars today. It provides the right mix of efficiency and affordability for most applications.
