In fact, standard concrete that is moist cured under ideal conditions often only achieves 40-45 percent of its design strength after three days. After seven days, it should hit 75 percent of its final design strength. To get to 100% of it’s design strength, you often have to wait 28 days or more.

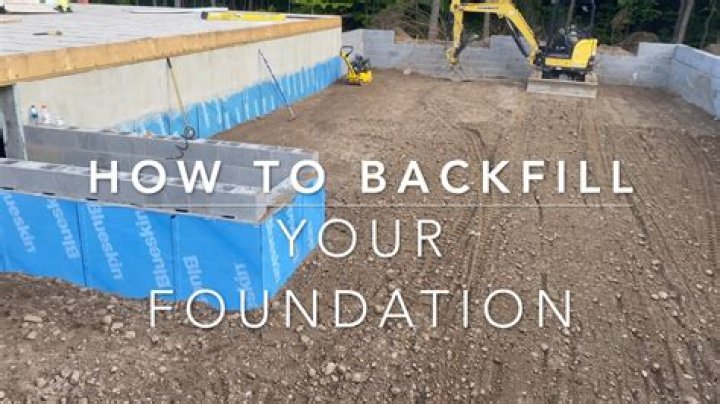

How long does it take to backfill a foundation?

Let the concrete cure for at least a week before backfilling (28 days is best). Place and compact the backfill carefully in partial lifts—don’t dump it all in at once.

What is the process of backfilling?

Backfilling is the process of reusing or replacing the soil that is removed during the excavation of foundations, ground bearing slabs or other groundworks to support and strengthen a structure. It protects foundations and forms part of the substructure of slabs, roadways, walkways and other groundwork elements.

How long does fill dirt take to settle?

In your lawn or around your foundation, however, natural weathering processes will work on the dirt to settle it down and take hold. This usually takes around 7 years in temperate areas.

Can you backfill in the rain?

While backfilling in the rain can moisten the soil to help with compaction, it’s not a good idea to backfill if the rain is heavy. Hard rain will put your safety at risk and make for a muddy mess. Backfilling a small project like a pond or small trench can be accomplished in light rain.

How long should a block wall cure before backfilling?

The concrete must cure for a minimum of 7 days and the foundation wall must be laterally supported, meaning the floor system is installed supporting the top of the wall. All below grade waterproofing / dampproofing must be installed.

Can sand be used as backfill?

Sand is a key component of a properly backfilled hole or trench in that it provides drainage and compacts well, especially when damp. … Above the rock bedding is a layer of felt to prevent the sand from washing into the rock bed, sand and top soil. Properly layering these materials prevents sinking after the backfill.

What to do after backfilling?

1. After soil is backfilled into a trench, the loose material is compacted using some mechanical means, such as a compactor, an excavator, or a “jumping jack”-type compactor. …
2. With the jetting technique, you pump the water under pressure and use the force of the jetted water to move the bedding or backfill material around.

How long before you can backfill a concrete retaining wall?

Some retaining walls are designed as cantilevers. These typically include reinforcement and rely on the combined strength of the concrete and reinforcement to resist bending at the base of the wall. In that case, plan to wait seven days before placing the full depth of backfill.

How do you pack down fill dirt?

Tamp the soil, using a hand tamp or machine tamp, working back and forth in a grid pattern. Tamp the fill dirt for at least 20 minutes. Then put the string line back up and eyeball the fill dirt to make sure it is still level. Add more dirt if needed and tamp again.

Article first time published on

How can I make my ground settle faster?

1. Rake the soil smooth and flat, using a broom rake or bow rake, as well as the back side of the rake. …
2. Spray the soil with a gentle mist or slow trickle of water just until water begins to pool on the surface. …
3. Allow about one hour for the water to drain deep into the soil; some settling should occur.

Is it OK to pour concrete on dirt?

Long story short, yes you can pour concrete over dirt.

What is the best backfill material?

The best material for the backfilling of a retaining wall is gravel, and it should be well graded. The main reason for using gravel is because it does not retain water (small void ratio); hence lateral loads experienced will be minimal. You should also have weep holes for draining excess water that may be retained.

Is code for backfilling?

Materials For Back-Filling & Soling IS:3764 – Safety code for excavation work. Murrum – Murrum for backfilling shall be freshly excavated free from vegetation, boulders, silt and clay and as approved by the Engineer.

How much does it cost to backfill a trench?

Backfill a Trench: national average cost The total price for labor per linear foot is $4.57, coming in between $1.60 to $7.54. A typical 50 linear foot project costs $228.34, with a range of $79.89 to $376.79.

What material is used for backfill?

CA7, otherwise known as ¾” limestone, or sometimes as 1” limestone, and commonly referred to as “bedding stone”, is an angular white/gray stone that self-compacts, making it ideal for use in backfill as well as pipe bedding, subbase and drainage situations.

How do you compact sand without a compactor?

A lawn roller or hand tamper can be used to compact the moist soil, or you can walk over it.

Can wet soil be compacted?

Wet soils are particularly susceptible to compaction. Heavy equipment and tillage implements amplify damage to the soil’s structure, decreasing pore space and limiting soil and water volume even further. … A well-structured soil holds and conducts the water, nutrients and air necessary for healthy plant root activity.

Is sand Cheaper Than Dirt?

Sand tends to cost around $15–40 per cubic yard, falling somewhere between topsoil and fill dirt.

Is sand better than dirt?

Projects in Wet Environments Dirt is great for creating solid, unmovable foundations in dry places, but it tends to absorb and retain moisture when used in wet areas. Wet environments are where sand truly excels. Sand does not absorb water; it merely allows it to pass through.

Is pea gravel good for backfill?

Whether you’re building a retaining wall on a slope or a border to prevent erosion in a garden, backfilling with pea gravel creates a barrier solid enough to hold soil. At half an inch to 1-inch thick, it fits into small spaces so that air pockets don’t threaten structural integrity.

How long should concrete cure before putting dirt on it?

Ideally it should be kept wet for at least 28 days. So you can bury it any time after 8 hours – preferably with damp soil.

How long does it take for a block wall to cure?

Mortar needs to be kept wet for around 36 hours so it can cure fully. There’s always some risk with brick mortar when dealing with weather and other external factors. If it’s dry and hot, it could pull the moisture out of the mortar and cause it to shrink, sucking it away from the bricks.

Should I backfill my foundation with gravel?

If there is not enough quality fill dirt on site, stone (or gravel) will most likely be trucked in and used when backfilling the foundation. … Although it does cost more, stone or gravel is the best alternative because it compacts easily and allows water to quickly move through it.

How long does it take for a concrete retaining wall to dry?

Slabs on ground (e.g. pavements, sidewalks, parking lots, driveways, floors, canal linings) and structural concrete (e.g. bridge decks, piers, columns, beams, slabs, small footings, cast-in-place walls, retaining walls) require a minimum curing period of seven days for ambient temperatures above 40 degrees Fahrenheit1.

What to backfill a retaining wall with?

Backfill refers to the dirt behind the wall. In order to provide proper drainage, at least 12 inches of granular backfill (gravel or a similar aggregate) should be installed directly behind the wall. Compacted native soil can be used to backfill the rest of the space behind the wall.

How long do foundations take to set?

How long after pouring concrete can you build on it? Concrete curing is a vital process in the construction of your home. Typically, your foundation will have good resistance when it’s 7 days old, be better at 14 and at it’s best at 28 days.

What is earthwork in filling?

Earthworks. Earthworks are engineering works created through the moving and/or processing of massive quantities of soil or unformed rock. Earthwork is done to reconfigure the topography of a site to achieve the design levels. Earthwork involves cutting and filling to achieve the required topography.

Which sand is best for filling?

River sand or Natural sand They are mainly used in concrete and masonry work. They can also be used for RCC, plastering, and much other brick or block works. This sand consists of a smoother texture and a better shape of grains. The river or natural sand demands very less water.

What is the best method for compacting fill?

For large fill areas, rolling is the fastest, most efficient compaction method. Hand-held compactors can be used in smaller areas and for places that larger mobile equipment can’t reach. For granular soils, vibrating plate compactors work best. Rammers or impact type machines are used for cohesive soils.

Is it safe to build on fill?

Avoid building on top of fill dirt. If you need to build on fill, use compacted gravel for fill rather than dirt. Compacted gravel will settle less than dirt. It may be possible to build on soft ground if you take extra precautions such as grade beams to make sure your foundation footings are supported by solid ground.
