Stair Railing Building CodeHandrail Height34 to 38 inchesMaximum Projection of Railing From Wall4-1/2 inchesMinimum Hand Clearance From Wall1-1/2 inchesMinimum Distance Between Two Railings27 inches

Are stairs 45 degrees?

No matter what the measurements are, the angle between them (treads and risers) will be maintained at 90 degrees. … For example, if you were crazy and built a staircase with a 12 inch tread and riser, then the angle of the stringer to the floor would be 45 degrees. A more common angle is about 37 degrees.

Are iron balusters more expensive than wood?

When installed correctly either option provides very similar strength characteristics and are more than adequate for the job. In addition Wrought Iron Balusters and Wood Balusters overlap substantially in cost, with a wide variety of each being very comparable.

Why are stairs so steep in old houses?

Stairs are steep in an older house for a variety of reasons. … Also, steeper steps were more common because adequate headroom within the staircase wasn’t as big of a priority. People were smaller than today and it wasn’t necessarily a huge deal to lower your head a bit as you walked down a set of stairs.

How high should handrail be on stairs?

The top surface of the handrail should be between 34 and 38 inches above the floor, or above the Nosing Line. Some installation guides suggest marking the height by measuring from the nosings of the steps.

How high should my newel post be?

There are several methods of how to install a newel post but the first step is cutting the stair newel post to the correct height. Typically floor level balustrades must be at least 36” high or 42” high, depending on local codes and stair guardrails must be between 34” and 38”. …

What is standard handrail height?

(6) The height of handrails shall be not less than 34 inches nor more than 38 inches from the upper surface of the handrail to the surface of the tread, in line with the face of the riser at the forward edge of the tread.

What is the best degree for stairs?

Stair codes and guidelines prefer an angle of around 37° for normal stairways (the green area in our illustration) and around 7° for ramps (the yellow area in our illustration).

What angle are most stairs?

The standard angle of a staircase depends on the use case and application for the stair. For most standard stairs, the stair angle varies between 30 degrees and 45 degrees. Egress stairs have a shallower angle around 30-35 degrees while industrial stairs have steeper angles ranging from 40 to 70 degrees.

What is the best slope for stairs?

The acceptable slope is between 20 and 50 degrees, with the preferred slope being between 30 and 35 degrees.

Article first time published on

Why do most houses have 13 stairs?

Building construction code has very specific requirements regarding the height of steps. This is to minimize the number of trips and falls. And the vertical distance between floors is fairly standard, given usual ceiling heights and joists supporting the upper floor. The result usually falls between 13 and 15.

Are carpeted stairs safer?

Carpeted stairs are generally safer and quieter than wooden stairs. They reduce the chances of slipping and absorb sound to soften footsteps. Fully carpeted stairs are the quietest because of the padding underneath the carpet, but a helpful partial measure is to install a carpet runner with stair rods.

What is the average rise of stairs?

The general rule (in the US) is 7-11 (a 7 inch rise and 11 inch run) (17.78cm-27.94cm). More exactly, no more than 7 3/4 inches (19.7cm) for the riser (vertical) and a minimum of 10 inches (25.4cm) for the tread (horizontal or step).

Are iron balusters still in style?

While wood was previously the front-runner in this category, iron balusters are now taking center stage. Iron balusters have become so popular (and affordable!) that they’re used in every type of home from starter homes to luxury and custom-built homes.

Do iron balusters add value?

When it comes to the appearance of your house, first impressions matter—and they matter a lot! The addition of wrought iron railings to your home’s exterior can enhance its curb appeal and increase its value.

Are iron balusters safe?

Hollow iron balusters also have a bit more give than solid balusters, but this flexibility doesn’t significantly impact the durability of the system once installed on the stairway. Both options are strong and reliable for long-term use.

Which tile best for stairs?

Which tile is best for stairs? Porcelain and ceramic tile options are suitable for stairs. These tiles give a stylish look to the stairs and also provide a durable surface for heavy footfall. Most importantly, these tiles are anti-slip tiles and offer a safe surface as well.

Can you paint plywood stairs?

Paint the surface of the plywood stairs, both the tread and the riser, with a coat of all-in-one paint and primer, advises Anika’s DIY Life. Apply paint around the four edges of each tread and riser then paint the center. Brush over the edges a second time to ensure a thick layer of paint is distributed.

How do you replace stair rail balusters?

1. Step 1: remove existing balusters. Saw out your existing balusters. …
2. Step 2: drill holes for new balusters. …
3. Step 3: sand. …
4. step 4: measure. …
5. Step 5: paint. …
6. Step 6: cut the balusters. …
7. Step 7: install the new balusters.

What is the difference between balusters and spindles?

A baluster and spindle is actually almost the same thing, but the word spindle is more commonly used because it is easier to remember and say. Balusters usually rest on a footing; this could be a step, floor or deck, whereas, spindles are supported by a horizontal rail at the bottom that is attached to the posts.

What is Shoe rail?

Shoe rail is used for mounting balusters especially on the rake of a knee wall. This product is available in unplowed, 1 3/4″, 1 1/4″ or 1″ plow to accommodate all balusters. Shoe rail is simple and easy to install and use.

Do you legally have to have a handrail on stairs?

Handrails. One of the main concerns of building regulations on stairs is the health and safety of those dwelling in a property. … Handrails are mandatory. Stairs should have a handrail on at least one side if they are less than one metre wide, and on both sides if wider than this.

What is the difference between a handrail and a stair rail?

Handrails and stair railings – they sound like pretty much the same thing. They’re not. … A stair railing, on the other hand, is mostly to prevent people from falling off the side of the stairs. They aren’t asked to do much more – and they don’t.

Do you need a handrail on both sides of stairs?

Handrails are required on both sides of stairs and ramps. They are placed between 34 inches and 38 inches above the leading edge of a stair tread, the ramp surface, or the walking surface. Where children are the primary users of a facility, the ADA recommends a second handrail for children.

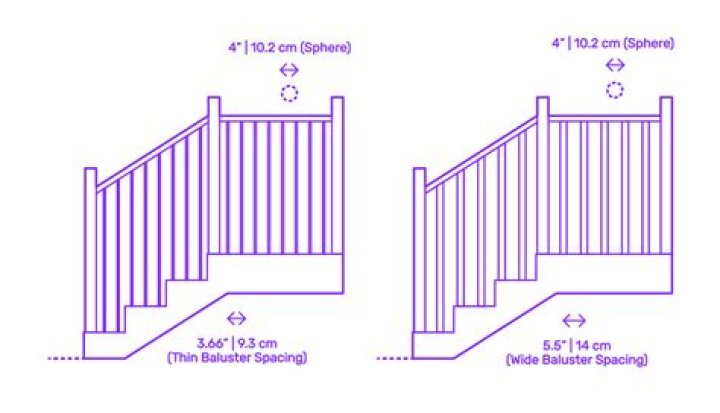

How tall should a banister be?

Handrails should be no less than 34 inches above the stair or ramp and no more than 38 inches above. If you are working with alternating tread devices or ship ladders, you should measure above the tread nosings. The handrail should be between 30-34 inches above.

What side of stairs does handrail go on?

A landing is required for every 12 feet of vertical stairway rise. If the landing is not enclosed or has an open side, then there should be a handrailing along the open side. Ideally, the railing should not have any interruptions so that it could be held onto during a fall without the hand slipping off.

What is over the post stairway?

Over the Post Newel: Newel Post used in an Over the Post Balustrade System. The Newel usually has a Pin at the top of the Newel that fits into the Cap of a Fitting. Often referred to as a Pin Top Newel. Overall Run: The sum of the Run of all of the Treads in a Flight of Stairs.

What is a starting newel?

Pin top stabilizer wood newel post. This post is used to tie directly into the bottom of a handrail to avoid using a fitting or a fitting with a cap.

What is a landing newel?

Landing Newel Posts are used when ever you have a level change, such as a middle or upper landing, and the handrail changes the height. The block top on the landing newel is usually 13 inches tall.
