HP1 Phase Amps3 Phase Amps115 volt230 volt55615.27-1/280221010028

How do you calculate Fla from HP?

1. Single Phase AC Motor FLA (Amperes) = (P [kW] × 1000) / (V × cos ϕ)
2. Single Phase AC Motor FLA (Amperes) = (P [HP] × 746) / (V × cos ϕ × η)

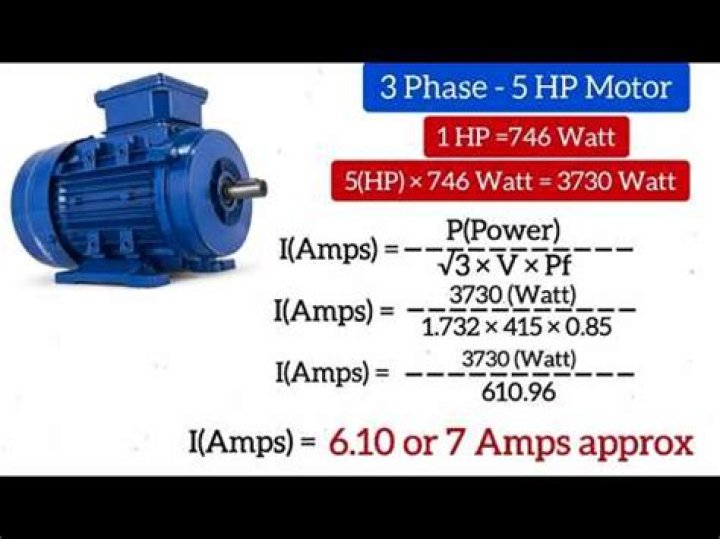

3. Three Phase AC Motor FLA (Amperes) = (P [kW] × 1000) / (V × 1.732 × cos ϕ)
4. Three Phase AC Motor FLA (Amperes) = (P [HP] × 746) / (V × 1.732 × cos ϕ × η)

What is the FLA of an electric motor?

Full Load Amps, or F.L.A., represents the amount of current the motor is designed to draw at the rated horsepower.

How much current is needed for a 5hp motor?

HorsepowerAmpsVoltage4 HP27.6 A120 V4.5 HP31.1 A120 V5 HP34.5 A120 V10 HP69.1 A120 V

How many amps does a 5 hp motor draw at 480 volts?

HP200 Volts440-480 Volts3114.8517.57.67.525.3111032.214

How does MCA calculate Fla?

Minimum Circuit Ampacity (MCA) for both fan-powered and heater-only products is calculated with the following equation: MCA = 1.25 x [Motor Rated Current + Heater Current] The “Motor Rated Current” is sometimes referred to as the FLA (full load amps) of the unit.

What size breaker do I need for a 5 hp motor?

A 5hp single phase AC motor has a load current of 28 Amps. So 10GA. wire with a 30 Amp breaker will work.

What is 5hp?

And metric horsepower which is 735.5 watts in electrical notations basically all the motors are measured under metric horsepower. Then according to the question my friend 5hp motor produces 5 * 735.5 watts In electrical term which is the capacity of 5 horses doing the same load.

Is RLA the same as FLA?

FLA: Full-Load Amps: Amount of amperage drawn when motor is working at rated horsepower. RLA: Running-Load-Amps: Same as FLA.

What is FLA in HVAC?

Full Load Amperage (FLA). As the load or torque on a motor increases, the amperage draw required to power the motor will also increase. … As it relates to HVACR, Rated Load Amperage (RLA) is a mathematical calculation used to get Underwriters Laboratories (UL) approval for a certain compressor motor.

Article first time published on

What is Fla range?

FLA represents the actual known capacity of a motor, or the rated voltage the motor is designed to draw at its rated horsepower. FLC represents the theoretical capacity of a motor, or the maximum current the motor windings are designed to carry.

Is Fla the same as FLC?

The full-load amperes (FLA) is the current the motor draws while producing its rated horsepower load at its rated voltage. NEC Tables. The full-load current (FLC) is the current value listed in Tables 450.247 through 450.250.

How many amps does a 5 HP well pump draw?

ItemDeep Well Submersible Pump MotorFull Load Amps15.9Max. SF Amps17.8Hz60Motor Service Factor1.15

How much current does a motor draw?

Calculate the amps used by dividing the wattage by the voltage. For example a 500-watt motor — running on 50 volts — will draw 10 amps. A motor with the same wattage — running on 20 volts — will use 25 amps. This is the theoretical number of amps used by the motor.

What size wire do I need for a 5 hp air compressor?

Assuming your motor is a 230V 5HP motor your FLC (NEC table Table 430.248) should be about 28A and as such you may be able to use 10AWG copper wire. On the other hand if the motor runs on 120V the FLC would be 56A and as such you need to run wire for 60A.

How do I calculate engine breaker size?

1. = 125% Continuous Load + 100% Non-continuous load.
2. = (1.25 x 28A ) + (30A)
3. = 75A.

How do you determine the size of a motor circuit breaker?

You must size the overloads no more than 115% to 125% of the motor nameplate current rating, depending on the conditions [430.32(A)(1)]. You must size the short-circuit ground-fault protection device from 150% to 300% of the motor FLC [Table 430.52].

Can MCA and MOCP be the same?

The MCA is the minimum wire size needed to guarantee that the wiring will not overheat under all operating conditions for the life of the product. The MOCP is the maximum allowable circuit breaker size that will properly disconnect power to the equipment under any anticipated fault condition.

What is Fla MCA and mop?

FLA = Full Load Amps (sum of the FLA of all the electrical data) MCA = Minimum circuit ampacity (It is chosen to guarantee that the wiring will not overheat under the expected operating conditions.

What is FLA in chiller?

Full-Load-Amperage (FLA) refers to the motor’s rated-current at rated-load and rated-voltage. This is the amount of current (amps) the motor will draw from the electrical system when producing its rated output horsepower. This value can also sometimes be referred to as: Running Amps, Rated Amps, or just AMPS.

How do you convert RLA to FLA?

The genreal rule of thumb for FLA calculation is the LRA rating X 150% = FLA.

What does RLA mean on a stamped compressor?

Most compressor manufacturers will stamp an amperage rating on their compressor. They will usually stamp the rated load amps (RLA) of the compressor. However, the service technician cannot use this value to determine the correct operating amperage.

What is Fla on a contactor?

The “FLA” (Full Load Amps) spec is the most important rating for most applications, and the 30-amp FLA of this contactor meets/exceeds your 25-amp minimum spec. … This particular contactor is likely suited to your needs.

How do you calculate current per phase?

Current = VA / voltage = 13900 / 230 = 60 A Easy enough. To find the power given current, multiply by the voltage and then the power factor to convert to W. For a three-phase system multiply by three to get the total power.

How do I calculate power?

Power is equal to work divided by time. In this example, P = 9000 J /60 s = 150 W . You can also use our power calculator to find work – simply insert the values of power and time.

How much power does a 5hp electric motor use?

Output mechanical energy: 5 HP X 746 Watts = 3,730 Watts or 3.73 kW. As the output mechanical energy is the result of the motor performing at 80% efficiency, the power consumed by the 5 HP motor will be 3.73 kW X 100 ÷ 80= 4.66 kW.

How many cc is a 5 hp Honda motor?

Engine TypeAir-cooled 4-stroke OHCDisplacement9.8 cu in (160 cm3)Net Power Output*4.6 HP (3.4 kW) @ 3600 rpmNet Torque6.9 lb-ft (9.4 Nm) @ 2500 rpmPTO Shaft RotationCounterclockwise (from PTO shaft side)

How much electricity does a 0.5 hp motor consume?

Assuming the motor runs at its full 0.5 HP capacity, that’s 373 W for 20 minutes, which is equivalent to 0.124 kWh. If energy in India costs 5 rupees per kWh, that’s about 0.62 rupees. The tariff is Rs 5/ kwh, 30 days in a month.

What does Fla stand for?

AcronymDefinitionFLAFlorida (old style)FLAFair Labor AssociationFLAMacromedia Flash (file extension)FLAFlash Files (file extension)

What does FLA and LRA stand for?

FLA= Full load amps. LRA= Locked rotor amps.
