Functional Anatomy of the Airway The two light arytenoid cartilages are shaped like three-sided pyramids, and they lie in the posterior aspect of the larynx. The arytenoid’s medial surface is flat and covered with only a firm, tight layer of mucoperichondrium.

What is the Arytenoid process?

The arytenoid cartilage has two processes: the vocal process where the vocal ligament is attached and the muscular process where the cricoarytenoid dorsalis muscle (the laryngeal abductor muscle) inserts (Fig. 26.35).

What are the Interarytenoid muscles?

The IA (interarytenoid) muscle holds the vocal cords in a closed position after the LCA muscles bring them together. The interarytenoid muscle (yellow bar) is located between the arytenoid cartilages in the midline at the back of the glottis. …

What is the main function of the arytenoid cartilages?

The arytenoid cartilages help move the vocal folds allowing tension, relaxation, or approximation of these because the vocal folds, being attached to the arytenoids, move along with them. Several intrinsic laryngeal muscles and ligaments are also attached to the arytenoids and can move them around.

Where is your arytenoid?

The arytenoid cartilages (/ærɪˈtiːnɔɪd/) are a pair of small three-sided pyramids which form part of the larynx. They are the site of attachment of the vocal cords.

What nerve Innervates the Arytenoids?

Nerve supply The arytenoid muscle is supplied by the recurrent laryngeal nerve, a branch of the vagus nerve (CN X).

Does the thyroid cartilage house and support the arytenoids?

(Cartilage is a strong but flexible tissue.) It houses the vocal folds, also known as the vocal cords. … Despite its name, the thyroid cartilage has nothing to do with the thyroid gland or its processes. It plays a role in the production of the human voice, providing protection and support for the vocal folds.

What is oblique Arytenoid?

Oblique arytenoid is a paired intrinsic laryngeal muscle. It is found on the anterior aspect of the larynx, cranial to the superior border of the cricoid cartilage. It is the more superficial of the arytenoid muscles, with the transverse arytenoid muscle lying underneath it.

What do the transverse Arytenoids do?

The transverse arytenoid is an adductor of the vocal fold thus playing an important role in phonation. Together with the lateral cricoarytenoids, oblique arytenoids and aryepiglottic muscles, this muscle acts as a sphincter for the laryngeal inlet, preventing food or liquid from entering the lower respiratory tract.

How many arytenoid cartilages are present in larynx?

The larynx is composed of 3 large, unpaired cartilages (cricoid, thyroid, epiglottis); 3 pairs of smaller cartilages (arytenoids, corniculate, cuneiform); and a number of intrinsic muscles (see the image and video below).

Article first time published on

What is cuneiform cartilage?

Medical Definition of cuneiform cartilage : either of a pair of rods of yellow elastic cartilage of which each lies on one side of the larynx in an aryepiglottic fold just below the arytenoid cartilage. — called also cartilage of Wrisberg.

What type of cartilage is the Arytenoid cartilage of the larynx?

The arytenoid cartilages are the only major cartilages to be paired, since the corniculate and cuneiform cartilages are seen to be minor cartilages. They are pyramidal in shape and have three faces. The cricoid lamina articulates with these cartilages on its lateral superior aspect.

What are the posterior cricoarytenoid muscle?

Function. Posterior cricoarytenoid muscle is the only muscle of the larynx that abducts the vocal cords and therefore opens the rima glottidis. It is an antagonist muscle to the lateral cricoarytenoid muscle which acts to protect the airway by closing the glottis.

What is cartilage of Santorini?

The corniculate cartilages (cartilages of Santorini) are two small conical nodules consisting of yellow elastic cartilage, which articulate with the summits of the arytenoid cartilages and serve to prolong them backward and medialward. They are fused with the arytenoid cartilages.

What are the vocal folds attached to?

The vocal cords are composed of mucous membrane infoldings that stretch horizontally across the middle laryngeal cavity. They are attached anteriorly at the angle on the interior surface of the thyroid cartilage and project posteriorly to the arytenoid cartilages on either side.

What causes arytenoid inflammation?

The inflammation can be caused by trauma or a low grade infection involving the arytenoid cartilage. The affected arytenoid generally is enlarged and may have an ulcer or small elevated site of granulation tissue (called a granuloma).

What is the epiglottis?

The epiglottis is a small, movable “lid” just above the larynx that prevents food and drink from entering your windpipe. But if the epiglottis becomes swollen — either from infection or from injury — the airway narrows and may become completely blocked.

What is above the thyroid cartilage?

The cartilage is composed of two halves, which meet in the middle at a peak called the laryngeal prominence, also called the Adam’s apple. In the midline above the prominence is the superior thyroid notch. A counterpart notch at the bottom of the cartilage is called the inferior thyroid notch.

What happens to vocal cord when we hinge the thyroid cartilage?

Cricothyroid – These are the vocal fold lengtheners. They pull the thyroid cartilage down and forward on its hinge, which increases the distance between the arytenoids and the thyroid notch (the Adam’s Apple), thereby lengthening and tightening the vocal folds; this causes them to vibrate faster, thus raising pitch.

What is Arytenoid edema?

Arytenoid swelling or edema is caused by various inflammatory and noninflammatory conditions such as gastroesophageal reflux disease (GERD), exposure to irritants, allergies, following radiotherapy, laryngitis, and hidden malignancy.

Which cranial nerve Innervates the larynx?

The vagus nerve is the 10th cranial nerve and is responsible for supplying the entire larynx with its complex innervation through the different nerves and respective branches discussed in this article.

What does the RLN innervate?

The RLNs provide ipsilateral motor innervation to the intrinsic laryngeal muscles for vocalization—to all the intrinsic laryngeal muscles except for the cricothyroids.

What does the pharyngeal plexus innervate?

The pharyngeal plexus provides sensory innervation of the oropharynx and laryngopharynx from CN IX and CN X. (The nasopharynx above the pharyngotympanic tube and the torus tubarius is innervated by CN V2).

Which are functions of the larynx?

The larynx serves to protect the lower airways, facilitates respiration, and plays a key role in phonation. In humans the protective and respiratory functions are compromised in favor of its phonatory function.

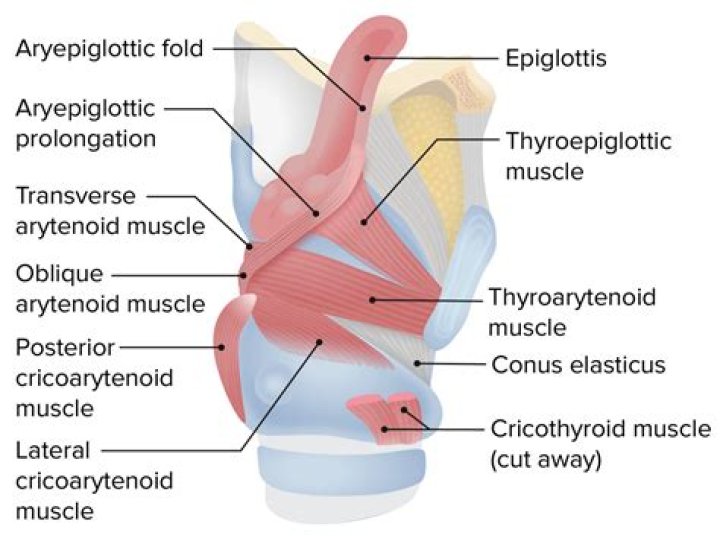

What do the intrinsic muscles of the larynx do?

Intrinsic Muscles: The intrinsic muscles of the larynx are responsible for sound production and the movements of the laryngeal cartilages and folds themselves. Their attachments fall between laryngeal cartilages. With the exception of the transverse arytenoid muscle, these muscles are paired bilaterally.

Which cartilage attaches to the trachea?

The trachea extends from the larynx and branches into the two primary bronchi. At the top of the trachea the cricoid cartilage attaches it to the larynx. The trachea is formed by a number of horseshoe-shaped rings, joined together vertically by overlying ligaments, and by the trachealis muscle at their ends.

What is Corniculate cartilage?

The corniculate cartilages (cartilages of Santorini) are two small conical nodules consisting of elastic cartilage, which articulate with the summits of the arytenoid cartilages and serve to prolong them posteriorly and medially.

What is the lateral Cricoarytenoid?

Lateral cricoarytenoid is a bilateral muscle attaching between the cricoid and arytenoid cartilages of the larynx. … They do this by moving the various parts of larynx; changing the state of the vocal folds (i.e. tension and length) and opening or closing the rima glottidis.

What is cricothyroid muscle?

The cricothyroid muscle is a small, bilaterally paired muscle found deep in the anterior compartment of the neck. It is one of the intrinsic laryngeal muscles, accompanied by six other muscles, namely: lateral and posterior cricoarytenoids, oblique and transverse arytenoids, … vocalis muscles.

What are the cartilages of larynx?

The laryngeal skeleton is nine cartilages: the thyroid cartilage, cricoid cartilage, epiglottis, arytenoid cartilages, corniculate cartilages, and cuneiform cartilages. The first three are unpaired cartilages, and the latter three are paired cartilages.

How many cartilages are in the trachea?

The trachea is composed of about 20 rings of tough cartilage. The back part of each ring is made of muscle and connective tissue.
