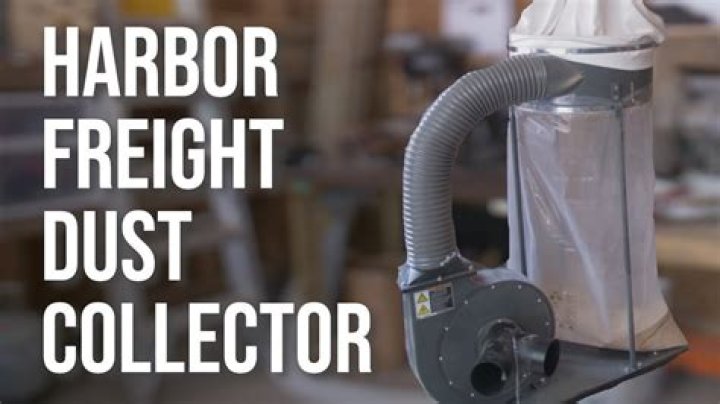

With 1550 CFM air flow this portable dust collector is more effective than many big stationary units. The upper filter bag screens out particles as small as 5 microns – 1/10 the diameter of a human hair. The lower collection bag is translucent so you can see at a glance when it’s time to empty.

How many CFM should a dust collector have?

They found most small shop stationary tools need about 1000 cubic feet per minute (CFM) of airflow to have good fine dust collection and only need about 350 CFM for good “chip collection”.

How is CFM calculated in dust collector?

For a rectangular port, calculate the area (multiply length times width, in inches). Then, multiply that area times 28 to find the approximate flow in CFM @ 4,000 feet per minute (FPM).

Is Harbor Freight 1 HP dust collector any good?

It performs well. While it doesn’t have mind-blowing suction, it has plenty to capture dust when connected to individual tools such as a table saw, jointer or planer. … But for the money, I have been quite happy with this Harbor Freight Dust Collector.

Is 650 cfm enough for dust collection?

A 3/4 -hp, 650 CFM collector, like the wall-mounted unit shown below might be the perfect solution for a small shop. It’s small enough to move around the shop as needed and conveniently hangs on the wall, out of the way of your tools.

How many CFM does a shop vac have?

As of this writing, a ”6.5 peak horsepower” Shop-Vac® vacuum rated at [email protected] produces 185 CFM (87 l/s) of airflow and 64 inches (160 mbar) of pressure.

Is a 1 HP dust collector enough?

PVC pipes, in short runs, work fine with a sufficiently powered collector, 11/2 hp or more. Metal duct, not unexpectedly, performs best. Even an 8-year-old, 1-hp col-lector can collect chips from machines 25 ft. … And even a 1-hp singlestage dust collector can handle that machine, hooked up with about 6 ft.

What does a dust collector do?

Dust collector systems work in general by drawing dust and particulates from the air through a filter that first captures and separates the matter, and then discharges purified air back into the workplace or environment.

What is a 2 stage dust collector?

A two-stage dust collector consists of a first stage cyclone, a blower and a second stage after filter. … The blower then relays the fine dust to the after filter. It is important to know that the longer the cyclone body and cone, the better the dust separation.

How do I calculate CFM?

1. CFM = (fpm * area), where fpm is the feet per minute.
2. To find the cubic feet per minute, substitute the FPM value with the area after the area is squared.

Article first time published on

How is HVAC CFM measured?

The calculation for CFM involves dividing the total volume of the space by the air exchange interval. To calculate room volume, you measure its length, width and height in feet and multiply these. Dividing this number by the change rate gives the required airflow in CFM.

How do you measure air suction?

Air velocity or distance traveled per unit of time is most often exhibited in feet per minute (FPM). Multiplying air velocity by the area of a duct determines the volume of air flowing past a point in the duct during specified unit of time. Volume flow is typically measured in cubic feet per minute (CFM).

How much CFM do I need for a table saw?

Machine CFM RequirementsMachineCFM RequirementsTable Saw – 10″350 – 450Band Saw – 14″350 – 400Jointer – up to 8″ wide350 – 450

How can the dust collector efficiency be increased?

1. Ensure Filter Bags Are Installed Correctly.
2. Install a Clean-On-Demand System.
3. Integrate All System Controls (Clean-on-Demand, timer boards, manometers, etc.)

How is dust collector size determined?

If it’s round, measure the diameter. For a rectangle, multiply the length by width, then multiply that number by 28 to find the flow of CFM at 4,000 feet per minute (fpm) airflow. Find the largest CFM number out of all your tools, and that’s what you’ll go on for the required rating for your dust collector.

How far can a dust collector work?

The maximum length of the hose with which the dust collector can continue to work effectively is determined by the power output and air suction power of the tool. On average, a 2-HP dust collector can be used with up to 25 feet of hose, but a 1-HP dust collector is only powerful enough for about 15 feet of hose.

What is the best dust extractor?

• Makita DVC350Z 18V Cordless Li-Ion Vacuum Cleaner/ Dust Extractor. …
• DJM Workshop 1100 watt Dust and Chip Collector Extractor 50L. …
• Festool CTL MINI GB Cleantec Mobile Dust Extractor. …
• Scheppach HD2P 240v Extractor/Dust Collector.

Is 80 cfm good for a shop vac?

A strong water lift rating begins at least 80″. This is the point where the suction will be strong enough to produce desirable results. When you go to the store, be sure to look at those two metrics: CFM and Water Lift (Static Pressure). They should be close to 125 CFM and 80″, respectively, or higher.

How many CFM is a 6.5 HP shop vac?

Peak HP6.5Air Volume (CFM)172Amps12.0Voltage120

What is the highest CFM vacuum?

One of the highest measured suction powers in a commercial vacuum cleaner is 200 CFM.

Can I use PVC pipe for dust collection?

PVC is commonly used in dust collection systems. Typically for longer runs you should use 6″ or larger pipe, regardless of the material. If you’re using PVC, the larger, less expensive pipe is commonly available as sewer drain pipe.

How do you get more suction from a dust collector?

Clean your filters often! When the lower bags in a two- or four-bag chip collector fill up, the unit’s filter area is effectively cut in half. This not only reduces suction significantly, but the higher air pressure inside the bag also forces fine dust particles through the fabric and into the shop air.

How many CFM do I need for woodworking?

Most woodworking equipment requires about 250-1000 CFM. The amount of airflow or CFM needed will vary depending on the size and number of woodworking tools running simultaneously. Most average size table saws, planers, and jointers with 2-5 inch diameter ports need approximately 300-600 CFM to clean well.

Which has dust collection efficiency greater than 99%?

Commonly known as baghouses, fabric collectors use filtration to separate dust particulates from dusty gases. They are one of the most efficient and cost-effective types of dust collectors available, and can achieve a collection efficiency of more than 99% for very fine particulates.

Which is dry type dust collector?

The NFPA defines dry dust collectors suitable for controlling combustible dusts as cyclone and media collectors. These include baghouses, cartridge collectors, and similar. … Dust is then dislodged from the filters into a hopper or bag, where it is moved into storage and must be periodically emptied.

How many CFM is a 5 ton unit?

A 5-ton system should have have 2,000 cfm, a 6-ton system should have 2,400 cfm, and so on and son. Measuring how much airflow measurements deviate from that math is a quick way to diagnose airflow issues in a residential duct system.

What is a good CFM Leafblower?

Here’s What You Need To Know. A good electric leaf blower usually has a CFM between 200 and 400. However, if you have a large property, (one acre or more), a leaf blower with a CFM between 400 and 700 is best.

How many CFM do I need for 1000 square feet?

Total area of home (square feet)Continuous ventilation rate1,000 square feet50 CFM2,000 square feet100 CFM3,000 square feet150 CFM

How many CFM are in a BTU?

The BTU’s per hour unit number 163.17 Btu/h converts to 1 atm cfm, one atmosphere cubic foot per minute. It is the EQUAL power value of 1 atmosphere cubic foot per minute but in the BTU’s per hour power unit alternative.

How many CFM is a 3 ton AC?

A 3-ton heat pump has approximately 1200 CFM of air flow.

What is CFM AC?

This is a measurement of how cold the air conditioner can make a room. The second is CFM, or Cubic Feet per Minute. This is a measurement of how much air an air conditioner can produce per minute. To obtain the CFM requirements per room, first determine the BTU requirements for the room.
