Assume Average Pressure (20-100PSI). About 12 f/s flow velocityPipe Size (Sch. 40)I.D. (range)GPM (w/ min. PSI loss & noise)1/2″0.5 – 0.6″143/4″0.75 – 0.85″231″1 – 1.03″37

How many GPM can flow through a 3/4 pipe?

Assume Average Pressure. (20-100PSI) About 12f/s flow velocitySch 40 Pipe SizeID (range)GPM (with minimal pressure loss & noise)1/2″.50-.60″14 gpm3/4″.75-.85″23 gpm1″1.00-1.03″37 gpm

How do you calculate gpm of a pipe?

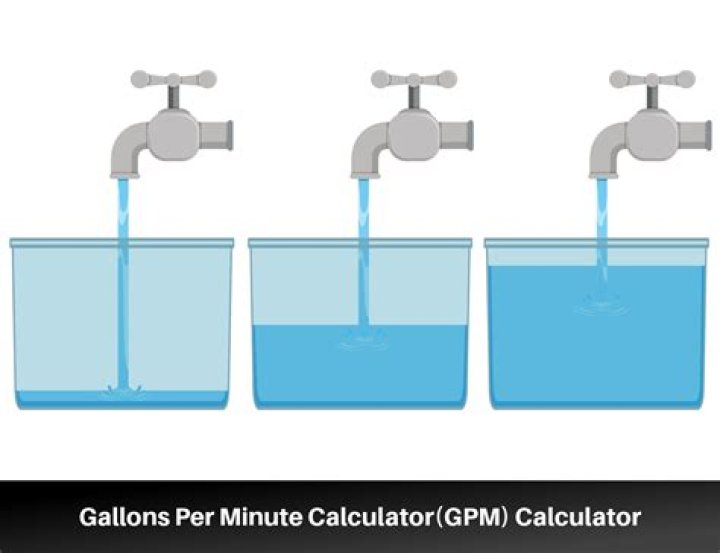

For the best accuracy measure the flow 3 or 4 times and average the times together. The formula to find GPM is 60 divided by the seconds it takes to fill a one-gallon container (60 / seconds = GPM). Example: The one-gallon container fills in 5 seconds, breakdown: 60 divided by 5 equals 12 gallons per minute.

How much gas can a 3/4 pipe hold?

Section 2, supplying outlets A, B, and C, or 94 cubic feet per hour requires 3/4 inch pipe.

Does pipe size affect GPM?

The larger amount of water in the bigger pipe has no impact on the water pressure. A smaller pipe may create more friction loss however, so it can be worse than a larger pipe. … Neither because 5 GPM is still 5 GPM regardless of the pipe size!

How do you calculate gpm from PSI and pipe size?

1. Step 1: Multiply the constant 29.84 times the coefficient of discharge (cd). …
2. Step 2: Square the measured diameter. …
3. Step 3: Multiply those two numbers: 26.856 x 6.5025 = 174.6.
4. Step 4: Find the square root of 62 psi, which is 7.8740.
5. Step 5: Multiply the final two numbers to solve for Q, the discharge in GPM.

How many GPM is a shower?

The average American shower uses 17.2 gallons (65.1 liters) and lasts for 8.2 minutes at average flow rate of 2.1 gallons per minute (gpm) (7.9 lpm). 1. Pay attention to the length of time spent in the shower. Try taking a shorter shower of around 5 minutes.

How many GPM is 4 pipe?

Assume Average Pressure. (20-100PSI) About 12f/s flow velocity2″1.95-2.05″127 gpm2.5″2.35-2.45″190 gpm3″2.90-3.05″273 gpm4″3.85-3.95″480 gpm

How many BTU will 3/4 pipe carry?

Total piping length = 84 feet (use Table 3 @90 feet) From a to b, demand = 38,000 + 35,000 + 30,000 = 103,000 BTU/hr; use 3/4″ pipe From b to c, demand = 38,000 + 35,000 = 73,000 BTU/hr; use 1/2″ pipe or 3/4″ tubing From c to d, demand = 35,000 BTU/hr; use 1/2″ pipe or 5/8″ tubing From c to e, demand = 38,000 BTU/hr; …

How many GPM is 3/4 PEX?

Flow rate, GPMPEX tubing size1/2″3/4″4.018.43.535.027.45.266.038.17.30

Article first time published on

What is a good gpm flow rate?

According to federal regulations, all kitchen and bathroom faucets should have a maximum flow rate of 2.2 gallons per minute (gpm) at 60 psi (pounds per square inch) of pressure; in California and Georgia, maximum flow rates are further restricted to 2.0 gpm (California will eventually be restricted to 1.8 gpm).

How do you calculate GPH water flow rate?

Divide the timed rate by 60 to find the gallon per minute rate: 60 divided by 15 equals 4. Multiply the gallon per minute rate by 60 to find the gph rate: 4 times 60 equals 240 gph.

How many gpm does a garden hose flow?

The flow rate for a garden hose is between 9 and 17 gallons per minute. Depending on the type of hose, the average garden hose can be anywhere from 12 to 13 gallons.

Does reducing pipe size reduce flow rate?

In a fluid passing through a pipe, a reduction in the diameter of the pipe can compress the flowing fluid. It flows faster, which increases the flow rate. And if the diameter increases, then the flow rate reduces.

Does larger pipe increase water flow?

Generally, the larger a pipe is, the higher the water flow. The water pressure level always has to be taken into consideration, however. Even the biggest, smoothest pipes will not have effective water flow if the water pressure is low, because there is not enough strength to defeat the force of friction.

How much do PEX B fittings reduce flow?

At a rate of 8 feet per second, the CPVC fitting will cause less than 1% restriction in flow while PEX fittings create a 23% to 54% reduction in flow, depending on the fitting used.

Is 1.5 gpm shower head enough?

This means no more than 2.5 gallons of water should flow out each minute. The GPM flow rate for shower heads has decreased over time. If your current shower head was made in the 1980’s or 1990’s, its flow rate could be 3.5 GPM or more!

Is 1.5 gpm enough for a shower?

When it comes to Shower Heads, you’ll typically find 2.5 GPM, 2.0 GPM, 1.8 GPM and 1.5 GPM. If you’re looking for the most pressure, go for the 2.5 GPM Flow Rate, unless you are restricted because you reside in California, Colorado or New York. … That’s 40% less water output than the 2.5 GPM Flow Rate.

Is higher GPM better for shower head?

While a higher-pressure shower head may provide a better showering experience, a 2.0 GPM model still has some advantages. … Shower heads with even lower flow rates are also available under the titles of “Eco Performance” or “EP” shower heads.

How do you convert pressure to GPM?

1. Measure the pressure inside the tank using a pressure gauge.
2. Subtract the atmospheric pressure from the tank pressure.
3. Multiply the result from step 2 by 2 and divide by the density of water.

How do you convert pressure drop to GPM?

Calculate actual GPM flow in your case by dividing 8.67-psi by the 8.5-psi listed and extracting the square root of the quotient, since the D’Arcy-Weisbach equation on which the tabular data is based shows that pressure varies as the square of flow velocity (and thus GPM). 8.67/8.5 = 1.02.

What is the difference between GPM and PSI?

The PSI refers to the amount of pressure produced and GPM refers to the amount of water flow. … PSI (Pounds per Square Inch) refers to the amount of cleaning pressure the machine can produce. GPM (Gallons per Minute) is the amount of water that is coming from the machine.

How far can you run 1 2 gas pipe?

This chart allows a 200,000 BTU gas appliance to be installed on a ½-inch gas line up to 40 ft. in length. However, the following conditions must be met: The minimum static gas pressure must be 8 in.

How many BTU's can a 1/2 pipe deliver?

Capacity of Pipe (MBH ≈ CFH)Pipe Size (in)Pipe Length (ft)1/20.622313/40.8247011.049141

What size gas line is needed for a whole house generator?

A 3/4” line will feed alot of appliances. The secondary regulator at generator drops the pressure for appliance. It has a regulator at the tank and then goes to this 3/4″ black hose which then goes down to a yellow 3/4″ plastic pipe.

What is the flow rate of a 3 inch pipe?

Pipe Size (inch)Maximum Flow (gal/min)Velocity (ft/s)2 1/2755.031305.642606.668008.9

How much water will a 4 inch pipe drain?

PIPE SIZE (inches)CAPACITY (gpm)38779418016353112346538487

How do I calculate flow rate?

Q=Vt Q = V t , where V is the volume and t is the elapsed time. The SI unit for flow rate is m3/s, but a number of other units for Q are in common use. For example, the heart of a resting adult pumps blood at a rate of 5.00 liters per minute (L/min).

Why is PEX plumbing bad?

Potential chemical leaching is another downside of PEX piping. Due to its chemical composition, the PEX pipe material may leach toxic chemicals including bisphenol (BPA), MTBE, tertiary butyl alcohol (TBA), and others.

What is the difference between PEX A and PEX B?

Again, the main distinction lies in the manufacturing method, which is what assigns an A, B or C to PEX. PEX A is made using the Peroxide, or Engel, method. PEX B is formed using Silane, or Moisture Cure, method. This is the most common PEX pipe type out there.

Is PEX A or PEX b better?

PEX-A is the most flexible of all PEX tubing types, has little or no coil memory and gives installer an ability to repair kinks with a heat gun. … PEX-B is a clear winner in terms of price vs. both other types.
