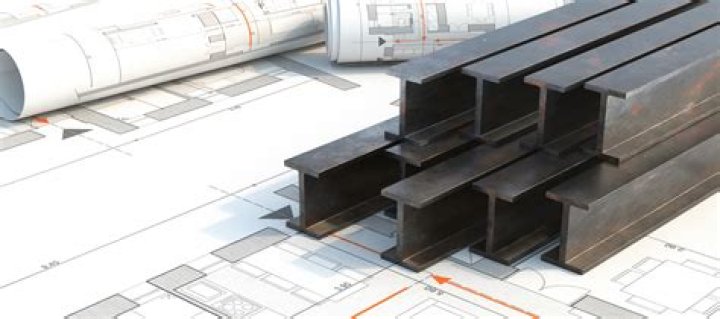

TypePer Foot InstalledTotal Cost InstalledLVL Beam$50 – $200$800 – $2,500Steel I-Beam$100 – $400$1,200 – $4,200

What size beam do I need for a 20 foot span?

Wood beam size for a 20 foot span:- as per general thumb rule, for a 20 foot span, size of wood beam or lumber joist should be 2×14 which placed at 16″ apart from centre used for residential building or projects or construction in which depth of section of beam is 350mm (14″) and width of beam is 50 mm or 2″.

Which is stronger H beam or I beam?

An H beam has a thicker central web, which means that it is generally stronger. An I beam generally has a thinner central web, which means that it is often not able to receive as much force as an H beam.

Are steel beams cheaper than wood beams?

BUDGET. Wood, whether it’s dimensional lumber (whole wood) or engineered, usually costs less in terms of both the material and labor to install. … Laminated veneer lumber (LVL), composed of several layers of glued plywood comes pre-made from a factory but still costs less than structural steel I-beams.

How much does it cost to remove a wall and install a beam?

ItemAverage CostRemove Drywall$200 – $500Install Temporary Supports$600 – $1,000Remove Bearing Wall$400 – $600Cut Framing & Install New Beam$1,000 – $2,000

What size lumber can span 24 feet?

Maximum Span (ft – in)Nominal Size (inches)Joist Spacing Center to Center (inches)Lumber Grade2 x 61212′ – 0″1610′ – 11″249′ – 7″

How much does a 10 inch I beam weight per foot?

Designation Depth in inches x weight Per Ft. LbsWeight Per Ft. (Lbs.)Flange Thickness (average, inches)S10 x (10×4-5/8)25.41/235.01/2S12 x (12×5)31.89/1635.09/16

What size beam do I need for a 24 foot span?

For 24 foot span, size of simply supported beam for 2-3 storey residential building, using thumb rule, is about 15″×18″ in which beam width is 12″ and beam depth is 15″, if width will be kept 12″, depth should increased, then beam size 12″×24″ can be used, providing with 4nos of 16mm bar at top, 4nos of 20mm bar at …

What size beam do I need for a 15 foot span?

Wood beam size for a 15 foot span:- as per general thumb rule, for a 15 foot span, size of wood beam or lumber joist should be 2×10 which placed at 16″ apart from centre used for residential building or projects or construction in which depth of section of beam is 250mm (10″) and width of beam is 50 mm or 2″.

Can you build a house with steel beams?

There are a few companies on the market now that offer designs and materials to build homes that are completely made of steel from the roof to the siding. These homes look very much like any other house, both inside and out. An all-steel home design can be altered to have whatever floor plan you like.

Article first time published on

What type of beam is the strongest?

I-Beam. . . . is the quintessential beam profile. The design is super strong in the vertical direction, yet has a uniform and equal response to other forces. It has the best strength to weight ratio (vertical) making it a great DIY beam profile — for Cranes, and for the main beams of big and/or long trailers.

What is the best material for beams?

Concrete Beam Concrete is one of the best types of beam materials. A concrete beam can handle strong forces and excessive loads.

What is junior beam construction?

Steel junior beams are a standard structural material which its primary function is to carry loads transverse to its longitudinal axis (web). Steel junior beams are lighter in weight than standard I beams. Common applications within the construction industry.

What is an M beam?

Miscellaneous (M) Beams provide an exceptional low weight-per-foot hot rolled solution. Primarily used in the frames of manufactured homes and recreational vehicles (RVs), this product is also utilized in purling applications and for steel dunnage.

How much load can a beam support?

For a beam spanning a 12-foot room and supporting a weight of 600 lbs., the maximum bending moment would be 12 x 600/8 = 900 foot-pounds.

Do you need planning permission to remove a load-bearing wall?

Do I have to get planning permission for removing a load-bearing wall? As a general rule, you don’t need planning permission for removing internal walls. But, if you are renovating a listed building, then you need consent for any external or internal work.

What happens if you knock out a load-bearing wall?

Removing a load bearing wall may create structural problems in a home, including sagging ceilings, unleveled floors, drywall cracks, and sticking doors. … Removal of load bearing walls without properly supporting the load they’re carrying may occasionally result in a structural collapse and even injury.

Do you need a structural engineer to remove a wall?

It is always best to check with a builder or structural engineer before removing any wall. They will be able to tell you whether or not the wall is load bearing, supporting the weight of any of the following: The roof: In older houses the roof structure often relies on support from an internal wall.

How much does a 20 foot steel I beam weigh?

The first number is the size of the depth and the second number is the weight per lineal foot. For instance a W10x31 would be a steel beam that’s approximately 10” deep by 31 pounds per lineal feet. If this beam was 20 feet long it would weigh 620 pounds.

How much does a 14 inch I beam weight per foot?

Wide Flange BeamsSection Size in InchesWeight Per FootThickness of Web* 12 x 12120.00.71014 x 522.00.23014 x 526.00.255

How far can a 6 I beam span?

A #2 S-P 6×6 will span between 7′-0” and 8′-6” for joist spans of 6-feet, and 4′-2” to 4′-11” with joist spans of 18-feet depending on loads. Dead loads of 10 psf commonly reflect the weight of the structure and fixed materials, while the live or ground snow load can fluctuate from 40 psf to 70 psf.

What is the maximum span for a 4X12 beam?

Joist SpansDouglas Fir-Larch, Hem-Fir, Spruce-Pine-Fir, Redwood, Cedars, Ponderosa Pine, Red Pine4X108′-4″4X129′-8″3-2X66′-5″3-2X88′-3″

What size lumber can span 13 feet?

A 2×6 spaced 16 inches apart can span a maximum distance of 13 feet 5 inches when used as a rafter, 10 feet 9 inches when used as a joist, and 6 feet 11 inches when used as a deck beam to support joists with a 6-foot span. What is this?

What size beam can span 16 feet?

In general terms, joist or beam which spaced 16 inches apart on Centre can span 1.5 times in feet their depth in inches. A 2×10 can span upto 16 feet.

Can you span 16 feet with a 2x8?

Depending on various factors, the maximum span for a 2×8 floor joist is 16′ 6”. The maximum span for roof rafters is 23′ 9”.

What size lumber can span 15?

As the table shows, no 2×8’s meet the span and spacing requirements, but a 2×10 with an E of 1,300,000 psi and Fb of 1093 psi can span 15 feet 3 inches – more than enough. A 2×12 with an E of 800,000 psi and Fb of 790 psi also works, since it can span 15 feet and 10 inches.

How far can you span a triple 2x10 beam?

For a more normal-sized deck, the same beam can span 8′, supporting a deck that is 8′ wide. You can also triple a 2×10 beam. In that case, you could span up to 15′ for decks that are 4′ wide and up to 10′ for decks that are 8′ wide.

Can a 2x8 span 20 feet?

The distance a 2×8 can span depends on species, grade, purpose, location, loads, and several other factors. Joist spans range from 7′-1” to 16′-6 when all factors are considered. Most select structural (SS) and #1 grade lumber will span 12-feet or more, with SPF falling shy of that span.

How do I know what size beam to get?

Design a beam depth based on the rule of thumb for estimating the depth of manufactured beams which is to divide the span by 20. Beam depths are typically 5 1/2 inches, 7 1/4 inches, 9 1/4 inches, 11 1/4 inches, 11 7/8 inches, 14 inches, 16 inches, 18 inches, and 20 inches.

What is the problem with steel framed homes?

Steel Framed Construction is Not Energy Efficient. When compared to most other framing products, steel framing is not energy efficient. In fact, wood has nearly four times the thermal resistance of steel. The reason steel frame buildings are not energy efficient is due to thermal bridging.

What are the problems with steel framed houses?

Steel houses suffer from relatively poor insulation and energy efficiency: steel conducts heat 300 to 400 times faster than wood and reduces the insulating properties of wall insulation by 60% because of thermal bridging (heat taking the most conductive path to dissipate: steel is an excellent conductor of heat.
