Determine the amount of rebar needed for the footings. Generally, one stick of rebar per 8 inches of footing width will suffice. If your footings are 16 inches wide, you will need to add two sticks of rebar along the width of the footing; however, if your footings are 24 inches wide, you will need three sticks.

Is there rebar in a house foundation?

Do house foundations have rebar? Yes, rebar is used in house foundations and on all load-bearing elements of a structure. Since the strength of the foundation is of utmost importance, every method of additional support is highly recommended to ensure the house can handle more load.

How much rebar is in a concrete beam?

Concrete building elementWeight of reinforcement in kg/m3Weight of reinforcement in lb/ft3Columns200-45012.4-28Ground beams230-33014.3-20.6Footings70-1004.3-6.2Pile Caps110-1506.8–9.3

How far apart is rebar in concrete foundation?

Rebar Spacing For footings that are poured before the slab, two #4 horizontal pieces of rebar are required – one 3” from the top and the other 3” from the bottom. You’ll also need vertical rebar hooks protruding at least 6” into the footing and out at least 18” every 48”, or less.

How do you calculate how much rebar is in a slab?

1. find out the total length of rebar.
2. multiply that length of rebar by the weight per length associated with the size of rebar that is used.

What is a foundation rebar?

Rebar is an abbreviation for the main ingredient in reinforced concrete: steel bars that are embedded in poured concrete footings, walls, slabs and other structures to make them stronger. … As a result, the finished footing, wall or slab gains considerable strength, especially in tension.

Do I need rebar in foundations?

Rebar for your footings is essential. Your concrete needs to be supported by steel rods (reinforcing bars) so it will not disintegrate. … Rebar pins are used to lift the rebar off the floor so it is set inside the concrete and does not rest at the bottom of the foundations.

Do concrete footings need rebar?

Footings, that sit on undisturbed soil or sand or multiple combination of this and that natural material, don’t require rebar. Vertical walls and posts that do require rebar, the steel rods provide both remarkable lateral ductile strength while over many decades become the weakest link.

Do foundation walls need rebar?

Rebar is placed horizontally and vertically in the wall, in a grid pattern. … The cover required is 2 inches for foundation walls, or walls exposed to weather, and 1 1/2 inches for walls that aren’t exposed. Horizontal spacing for #4 rebar is a minimum 2 feet, within 12 inches of the top and bottom of the wall.

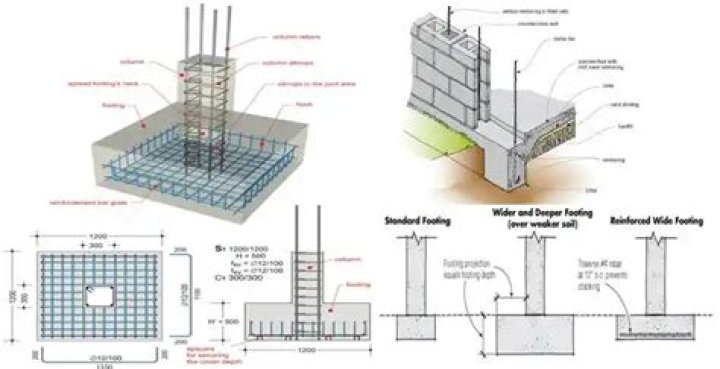

Where do you put rebar in footings?

Footers must be twice as wide as wall minimum with 1/2 inch or 5/8 inch rebar in footing with 2 runs, placed in the bottom half of the footing, at least 6 inches apart and not less than 3 inches from the bottom and the sides of the footing supported on chairs.

Article first time published on

How far should rebar be from concrete?

For welded wire reinforcement, the Wire Reinforcement Institute recommends steel placement 2 inches below the surface or within the upper third of the slab thickness, whichever is closer to the surface.

How do you calculate reinforcement in concrete?

1. Calculation:
2. Bar 1:
3. Cutting Length = 4380 mm.
4. Bar 2:
5. Cutting Length = (2×200) + (4380) – (2 x 20 x 2) = 4700 mm.
6. Bar 3:
7. Cutting Length:
8. No. of Stirrups: (4000/180) + 1 = 23.22 = 24.

How do you calculate reinforcement in footing?

1. Length of Footing = X = 2m.
2. Breadth of Footing = Y = 1.6m.
3. Height of the footing (Thickness) = h =0.3m.
4. Diameter of the Main reinforcement bars = dm= 12mm.
5. Diameter of Distribution Reinforcement Bars = dd =12mm.
6. Spacing of Main reinforcement bars = sm = 150mm c/c.

How do you calculate steel footings?

1. A = 1200 mm length in X-direction.
2. B = 1200 mm length in Y-direction.
3. C = 50 mm cover of footing.
4. a = 150 mm spacing in X-direction bar.
5. b = 200 mm spacing in Y-direction bar.
6. d = 450 mm depth of footing.
7. D = Length of 90′ bend.

Do strip foundations need rebar?

Wide strip foundations may be required where the soil is soft or of a low bearing capacity, so as to spread the load over a larger area. Wide strip foundations will typically require reinforcement. Where there are higher localised loads, such as columns, pad foundations may be used.

Does rebar sink in concrete?

And when steel corrodes, it creates iron oxide that expands inside the concrete. … Neglecting these steps can cause rebar to sink to the bottom of a slab or come too close to an outside surface before the concrete cures, eventually leading to premature corrosion of the reinforcement due to lack of cover.

How deep is a foundation footing?

Depth of Footings Footings should extend to a minimum depth of 12 inches below previously undisturbed soil. Footings also must extend at least 12 inches below the frost line (the depth to which the ground freezes in winter) or must be frost-protected.

What are footings in a foundation?

Footings are an important part of foundation construction. They are typically made of concrete with rebar reinforcement that has been poured into an excavated trench. The purpose of footings is to support the foundation and prevent settling.

How much is rebar by the foot?

Rebar Cost Per Foot. Rebar costs $0.18 to $6.80 per linear foot, not including installation. Residential customers typically won’t exceed $2.55 per foot. With labor, you’ll spend about $1.20 to $4.55 per linear foot for most home building projects.

How much strength does rebar add to concrete?

Rebar that’s off by just an inch can reduce the overall strength of the concrete by 20 percent. That’s why rebar has it’s own inspection. Because it’s very important to the strength of the structure. The ridges you see in rebar help it make a tight bond with the concrete.

What is rebar installation?

The inclusion of reinforcement bars (‘rebar’) in concrete construction is a method that adds long-term strength to the concrete used to build foundations, walls, pools, pads and other structures. … Rebar works well with concrete because these materials expand and contract at the same rate when temperatures change.

Do I need rebar for small concrete slab?

Rebar is not necessary for every concrete project. The general rule of thumb is that if you are pouring concrete that is more than 5 inches in depth, you are probably going to want to add in some rebar to help reinforce the entire structure. … Wire mesh use is becoming much more common for projects like a home driveway.

How much rebar is in a wall?

For spacing of rebar in the house wall, one bar is placed at every corner, one bar is placed on each side of door or window and bars are kept 4 feet apart between those bars. A 20-foot-long wall having one door may probably require eight sections of rebar and it depends upon placement of the door.

How much rebar do I need for a wall?

That installed in house walls is usually 10 to 12 feet long, depending on the depth of footings. Most house walls use 1/2- or 5/8-inch rebar, but shorter walls and those that are not load-bearing sometimes are built with 3/8-inch; the smaller size is most often used in horizontal applications to match mortar joints.

How deep should footings be?

All footings should be a minimum of 150mm (6″) in depth, with the bottom 350 – 400mm (14-16″) below ground level on most soils. For clay soil however, thicker and deeper footings should be used.

How thick should a concrete footing be?

For masonry or concrete construction, the minimum foundation wall will be 6 inches. The minimum reinforced concrete footing thickness will be 6 inches or 1-1/2 times the length of the footing projection from the foundation wall, whichever is greater.

Where do you put rebar in concrete?

Therefore, for a typical 100 mm residential concrete slab, the rebar should be placed at a depth of approximately two thirds the slab thickness from its surface. Placing the rebar at the bottom of the slab will provide no benefit to the concrete.

What is top and bottom reinforcement?

TOP Bar : Top bar acts as reinforcement which provides strength against flexular moment. It also act reinforcement for compression load which is induced on the top side of beam. Bottom bar : Bottom bar provide strength for tensile load that is induced in lower portion of beam.

Can you use rusted rebar in concrete?

Having rust on the surface of the rebar could cause further corrosion of the reinforcements. Further, placing concrete with the rust in the reinforcement, lose the bond between the concrete and reinforcement bar. … Therefore, no concrete shall be placed without cleaning the rebar.

How do you estimate Foundation?

Take the entire perimeter length of the footer and multiply it by the width. For example, if you have 100 feet of footers that are two feet wide, multiply the two to come up with 200 feet.

How do I calculate how much rebar I need?

To determine the total linear rebar footage required, multiply the number of rebar you calculated for each side by the length measurement. Add those numbers together for the total number of linear feet of rebar you’ll need.
