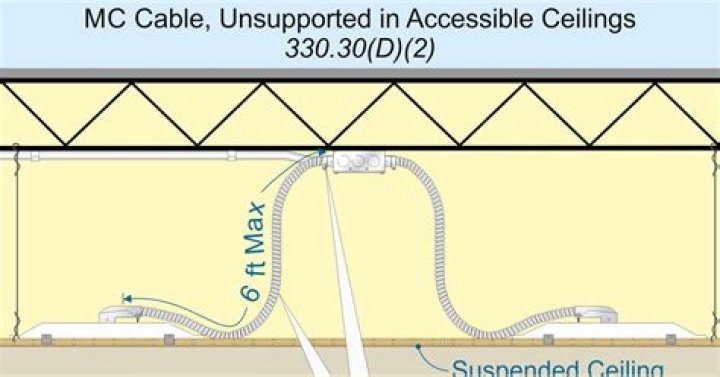

According to NEC Article 330.30, MC cable must be supported and secured at intervals of 6 feet or less (unless routed through a framing member) and cables containing four or fewer conductors sized no larger than 10 AWG must be secured within 12 inches of every termination.

How long can you run MC cable?

MC Cable Benefits The cable can be used quickly from small 250′ rolls or even much larger 1000′ spools of cable. Supporting the cable, as described in Article 330.30, is basically every 6′ and 12” before each box. A run of conduit is limited to 360 degrees whereas MC cable has an unlimited number of bends.

When Should MC cable be used?

Type MC cables are widely used in 600 volt and MV power, lighting and fixture whip control applications. They are permitted for use on services, feeders and branch circuits for power, lighting, control and signaling circuits in accordance with Article 330 and 725 of the NEC.

How do you support MC cable?

Type MC cable must be supported and secured by staples, cable ties, straps, hangers, or similar fittings, designed and installed so as not to damage the cable. Type MC cable, with four or less conductors sized no larger than 10 AWG, must be secured within 12 in.

Can you leave MC cable exposed?

The interlocking metal tape armor Type MC cable is required to have a bare or insulated equipment grounding conductor in addition to any other conductors within the cable. … These cables can be installed either indoors or outdoors and in exposed and concealed locations.

How often does EMT need to be strapped?

EMT must be secured at least every 10 ft. and within 3 ft. of every outlet box, junction box, device box, cabinet, conduit body, or other termination. An exception allows EMT to be fastened up to 5 ft.

How often do you strap Romex?

General Cable Support Runs of NM cable must be supported at least every 54 inches. 1 They also must be secured within 12 inches of an electrical box that includes a cable clamp or within eight inches of a box or enclosure without a cable clamp.

Where is MC cable required?

Type MC cable installed on the bottom of floor or ceiling joists must be secured at every joist and not be subject to physical damage [Sec.

Is MC cable better than Romex?

Electric shielding: Both MC cable and Romex are effective at protecting against magnetic fields, but MC cable can provide additional protection against electric fields due to its metallic casing. Non-metallic Romex cables cannot provide the same protection.

Can you use zip ties to support MC?

Yes, cable ties are permitted. … It is also important to note that, where cable ties are used in other spaces used for environmental air (for example, the space above a hung ceiling used for return air), they must be also listed as having low smoke and heat-release properties as required in Section 300.22(C).

Article first time published on

Can you run MC in concrete?

Can I install Type MC in concrete or against concrete or mortar? A. Yes, if the cable is listed for the application. Type MC cable is available with an outer PVC jacket and is permitted to be installed in parking decks, concrete pours and for direct earth burial if it is identified for such use.

Is MC cable and armored cable?

MC cable is easier to remember because it’s an abbreviation for “metal clad” or “metallic-sheathed cable.” … Both are essentially just names for armored cable. When fiber is armored, it has a conductive jacket because the material is made from metal, usually aluminum or steel.

Is MC cable conduit?

Type MC armored cable can be installed in cable tray, racks, hangers, or as a cost-effective replacement for conduit and wire where specified per the National Electrical Code (NEC). … We’ve updated our labor and material cost-savings chart.

Can MC cable be surface mounted?

New for the 2017 NEC Code-cycle is section 330.15, entitled “Metal-Clad Cable: Type MC Exposed Work.” This new Code section requires an exposed run of MC Cable to closely follow the surface to which it is mounted while enjoying a new permission that allows the MC cable to be installed on the underside of floor joists.

Can MC cable get wet?

PVC coated, sunlight resistant, direct burial rated MC cable can be used in a wet location. … General use MC cables cannot be used in wet locations but there are some types of specialty MC cables that can. The most common is the PVC coated, sunlight resistant, direct burial listed MC cable in the image.

Does MC cable need to be protected?

According to NEC Article 330.30, MC cable must be supported and secured at intervals of 6 feet or less (unless routed through a framing member) and cables containing four or fewer conductors sized no larger than 10 AWG must be secured within 12 inches of every termination.

How often should wiring be stapled?

Article 336-18 stated that cable must be secured in place at intervals not exceeding 4.5 feet (1.37 m) and within 12 inches (305 mm) from every cabinet, box, or fitting.

How far apart does Romex have to be stapled?

If stacking Romex cables is important, it must be done with stack fasteners and not under staples to make sure that there is no risk of your house failing inspection, and therefore, you get fined. The clamps, staples, or braces holding a Romex cable shouldn’t be any further than 4.5 feet.

Can you put EMT in concrete?

Electrical metallic tubing (EMT), elbows, couplings, and fittings can be installed in concrete, in direct contact with the earth, or in areas subject to severe corrosive influences where protected by corrosion protection and judged suitable for the condition [358.10(B)].

What is the largest trade size RMC?

(B) Maximum RMC larger than metric designator 155 (trade size 6) shall not be used. Informational Note: See 300.1(C) for the metric designators and trade sizes. These are for identification purposes only and do not relate to actual dimensions.

How often should an electrician secure conduit between enclosures?

The general rule for straight runs of RMC, IMC, and EMT is that they are required to be securely fastened at intervals of no more than 10 feet (3 m).

Can you pull Romex through PVC conduit?

7 Answers. Yes, NM cable can be in conduit. In fact. NEC calls for it to be in conduit, when protection from physical damage is required.

Why is Romex so expensive 2021?

After a 22% price increase in 2020, Goldman Sachs analysts say that 2021 could soon see a record high for copper prices. These price increases are due to factors such as China’s economic recovery from the pandemic, sustainable green energy stimuluses, and supply disruptions.

What is the difference between MC cable and AC cable?

The biggest difference between the two cable systems is that MC has full size ground wire while AC uses a combination of the jacket and a thin bonding strip or wire to function as the equipment ground. … This type of MC Cable will have a continuous PVC outer jacket.

Can MC cable be bundled?

There are roughly ten 12-2 MC cables installed in bundled configuration using nylon tie wraps. These cables are the homeruns for 20-ampere branch circuits. Appreciate your insight.

Can I run MC cable through drywall?

Armored cable is fine in drywall – indeed, it’s superior to NM cable, and required in many/most commercial occupancies if not using conduit.

Are anti shorts required for MC cable?

Anti-short bushings are not required for Type MC cable in accordance with the listing for the product. … NEMA supports the uniform adoption and enforcement of the NEC and recommends that local Authorities Having Jurisdiction follow the requirements of NEC Section 330.40, Boxes and Fittings for MC Cable.

Is tie wire UL listed?

Not all cable ties are created equal. Some have only been evaluated to secure or position a cable. UL considers a cable tie a “cable positioning device” and certifies them to UL 62275.

Can type NM B Romex be exposed to corrosive vapors?

Section 334.12(B) does not allow type NM cable to be installed in wet locations or where exposed to corrosives such as chlorine but without the revised code language, sections 334.10 and 334.12(B) were in conflict with one another.

Where is MC cable not allowed?

330 of the NEC mentions that MC cable can be used indoor and outdoor but does not make mention of it being allowed or disallowed for use in damp environments. It does state that when used in wet locations there must be a corrosion-resistant jacket to protect the conductors.

Can you run MC through EMT?

Type MC is permitted for services, feeders and branch circuits, indoors or outdoors, exposed or concealed. It may be used in some, but not all classified locations. It is permitted in wet locations and underground where identified for such use. A conduit bender is the only specialized tool needed for working with EMT.
