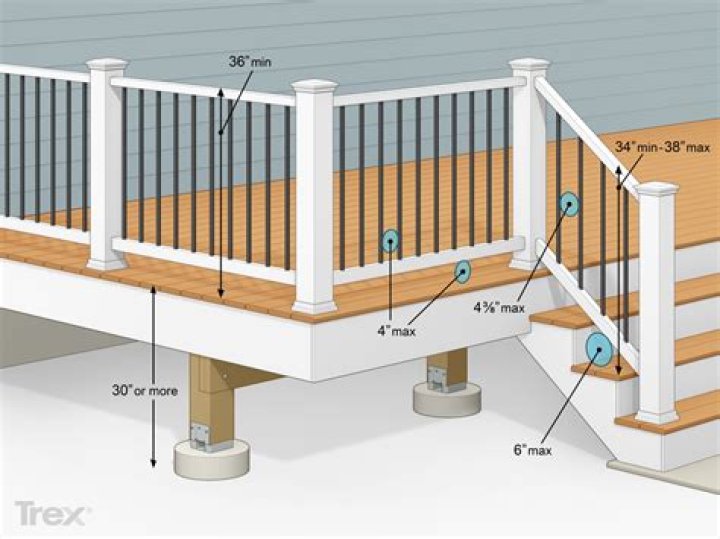

Requirements for Deck Stairs Stair rails on decks should be between 34 inches and 38 inches high, measured vertically from the nose of the tread to the top of the rail. Treads must be at least 10 inches deep, measuring from front to back.

What is code for step height?

(1) The rise of every step in a stairway shall be not less than 4 inches nor greater than 7 1/2 inches. (2) The run shall not be less than 10 inches as measured horizontally between the vertical planes of the furthermost projection of adjacent treads.

What is the code for outdoor steps?

Exterior stair riser code Exterior stair risers must comply with IBC section 1011.5 stair treads and risers. Stair risers height shall be 7 inches maximum and 4 inches minimum.

What is the standard rise and run for deck stairs?

The stair treads should be at least 36 inches wide. Despite these minimum requirements, we recommend that stairs should be at least 48 inches wide so they don’t feel cramped. The maximum allowable stair rise is 7 3/4 inches, and the minimum stair rise is 4 inches.

How many steps is a 5 foot high deck?

Using these measurements as a starting point to calculate actual step dimensions and how many stairs you’ll need using the height of your deck. For example, if your deck is 5 feet (60 inches) from the yard, and you want steps at 7 inches maximum, divide 60 by 7 to get 8.57 stairs.

What is the maximum rise of a step?

On a main stair, the maximum rise should be no more than 8 1/4 inches and the minimum run should be no less than 9 inches. To determine how many steps, or treads, you need, measure from the top of the finished floor on the lower level to the top of the finished floor on the upper level.

What is a normal step height and depth?

The average step height in America is 7.5 inches. The depth is generally around 9 inches. As far as width goes, or the long part of the stairs, it’s primarily up to the homeowner.

Is an 8 inch step too high?

Building codes in many areas define maximum step height and minimum tread width, but in areas where it is not defined, Council of American Building Officials and International Code Council both recommend the rise to be no more than 7.75 inches and runs to be no less than 10 inches.

Does the landing count as a step?

Does the landing count as a step? Yes it does. … If you have to lift your foot to get onto the landing, then it counts as a step.

How high should stair risers be?

Stair riser heights shall be 7 inches (178 mm) maximum and 4 inches (102 mm) minimum. The riser height shall be measured vertically between the leading edges of adjacent treads.

Article first time published on

Are risers required on deck stairs?

Most high-end deck projects use closed risers to finish the stairs. … They also are often in violation of IRC code for decks over 30″, which maintains that they meet the same requirements as guardrail infill. Stair risers may not have openings present that would allow a 4” diameter sphere to pass through.

How high can stairs go without a landing?

A flight of stairs shall not have a vertical rise greater than 12 feet (3658 mm) between floor levels or landings, except that the vertical rise shall not be greater than 8 feet (2438 mm) in Group A and I occupancies.

What are the OSHA requirements for stairs?

Riser height shall be from 6 to 7.5 inches (15.24 to 19.05 cm), stair width a minimum of 22 inches (55.88 cm) between vertical barriers, tread depth a minimum of 12±2 inches (30.48±5.08 cm), and tread nosing shall be straight leading edges. Stair landings shall be at least 20 inches (50.8 cm) in depth.

How many steps do I need for a 4 ft high deck?

A four-foot high deck can have a range between 6 and 8 steps. Twelve-foot wide stairs using Deckorators composite. $482 more decking material.

What size wood should I use for deck stairs?

Deck stairs are typically made from 2 x 12 stringers spaced about 12 to 16 inches apart. They rest on a solid foundation and are attached to the deck with hangers. They have risers (also called toe kicks), treads and railings. The stairs should be at least 36 inches wide.

How tall is the average step?

What is the average step length and stride length? According to the University of Iowa, the average person’s walking step length is 2.5 feet (30 inches), so the average stride length would be approximately 5 feet (60 inches). There are a number of factors that can impact stride length including: height.

What is normal step length?

An average person has a stride length of approximately 2.1 to 2.5 feet. That means that it takes over 2,000 steps to walk one mile and 10,000 steps would be almost 5 miles. A sedentary person may only average 1,000 to 3,000 steps a day. For these people adding steps has many health benefits.

What's the average size of a step?

The standard stair height for American architects is 7.5 inches. Outside steps have an average length of 11 inches tall, while inside steps have an average length of 9 inches tall.

How much should deck steps overhang?

Stairs must have an overhang between 3/4″ to 1-1/4” to increase the depth of the step, making it better for descent while maintaining a clear 10-inch going for the ascent. Treads that are 11-inches deep or greater do not require an overhang.

Can a stair riser be 8 inches?

In Group I-3 facilities, stairways providing access to guard towers, observation stations and control rooms, not more than 250 square feet (23 m2) in area, shall be permitted to have a maximum riser height of 8 inches (203 mm) and a minimum tread depth of 9 inches (229 mm).

What is code for stair tread depth?

International Residential Code (IRC) There are also section codes in place for standard stair tread dimensions. The tread depth code for residential stairs should be no less than 10 inches with nosing, no less than 11 inches without nosing, and maximum tread depth variation should also be less than 3/8 of an inch.

Should deck stairs have a Lip?

This is a measurement from the nose of the tread to nose of the tread. You are not required to have a nosing/overhang on your stair treads. But if your stairs don’t have a nosing you are required to have a tread that is at least 11 inches long.

What accounts for roughly 90% of all deck collapses?

About 90% of deck collapses occurred as a result of the separation of the deck ledger board from the house, allowing the deck to swing away from the house. It is very rare for deck floor joists to break mid-span. Many more injuries are the result of rail failure, rather than complete deck collapse.

Do deck stairs need railings on both sides?

Do I Need Handrails On Both Sides of Deck Stairs? Nope. You don’t need a handrail on both sides, but you may need a railing if your deck is higher than 30″. Many contractors construct a combo handrail and stair rail system, installed on both sides, to cover all safety requirements.

What are the rules for stairs?

• Minimum 36 inch clear width for stairway.
• Maximum 4-1/2 inch handrail projection into stairway width, on either side.
• Minimum 6′-8″ headroom height clearance for stairway.
• Maximum 12′-7″ vertical height (rise) for a flight of stairs.

How steep can stairs be OSHA?

Osha ships ladder standards 1910.25(e)(1) Are installed at a slope of 50 to 70 degrees from the horizontal; 1910.25(e)(2) Have open risers with a vertical rise between tread surfaces of 6.5 to 12 inches (17 to 30 cm); 1910.25(e)(3) Have minimum tread depth of 4 inches (10 cm); and.
