Bathroom stall walls vary in thickness from 1/2 to 1 inch, depending on what material they’re made of. The density of the restroom wall matters to your customers, as a solid and sturdy partition will make them feel safe and help form a quality impression of your business.

How thick are bathroom stall doors?

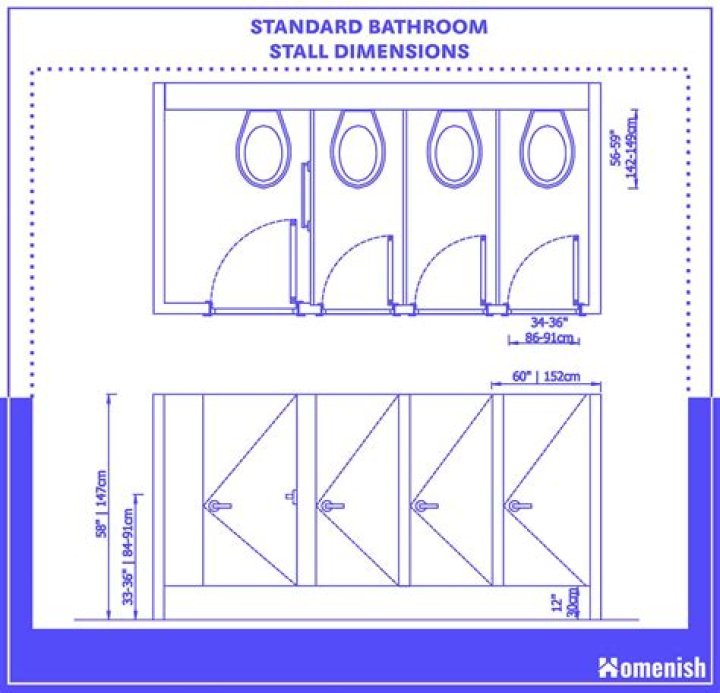

A bathroom stall door is usually 24 inches wide and 58 inches high, and the stall size is typically 36 inches wide and 60 inches deep. That said, depth can vary from 48 to 78 inches.

What are bathroom stall walls made of?

The most commonly used toilet partition material is powder coated steel. The majority of the United States uses this material. Powder coated steel toilet partitions have become the standard for durable quality at an affordable price.

What size is a standard bathroom stall?

A standard toilet stall will be 36” wide by 60” deep with a 24” wide door. In compliance with the Americans with Disabilities Act (ADA), bathrooms usually require one larger stall designed to accommodate wheelchairs. These ADA stalls are 60” wide by 60” deep with a 36” wide door and found at the end of the row.

How tall is a bathroom stall wall?

A standard stall panel can be 55-inches tall and placed so that the bottom of the panel is 14-inches above the floor. Since panels can be of varying heights, including custom heights, it’s good to become familiar with the types of partitions you are considering.

How much room do you need around a toilet?

The size for a separate toilet compartment should be at least 36×66 inches with a swing-out or pocket door. Code Requirement: The minimum size for a separate toilet compartment is 30×60 inches.

How tall are bathroom stalls in feet?

For instance, with any type of partition, all have a standard door and panel height of 58″ (4.8 feet) and sit 12″ off the floor. However, with new preferences for more privacy, we now have 64″ (5.3 feet) high doors and panels or 72″ (6 feet) doors with 76″ (6.3 feet) panels now available.

How narrow can a toilet stall be?

Figure 30(a) Standard Stall. The minimum width of the stall is 60 inches (1525 mm). The centerline of the water closet is 18 inches (455 mm) from the side wall. The location of the door is in front of the clear space and diagonal to the water closet, with a maximum stile width of 4 inches (100 mm).

How deep does a toilet stall need to be?

While restroom stall dimensions vary in accordance with the unique characteristics of your bathroom space, standard toilet stall dimensions are 36 inches wide and 60 inches deep. Minimum bathroom stall dimensions include a depth of 48 inches, but the depth can be as much as 78 inches, if necessary.

How wide is a urinal stall?

For starters, urinal partitions are usually 24 inches wide and between 42 and 48 inches tall. This standard size provides privacy and a nice, clean look for any restroom, but we also customize urinal partitions to fit any restroom design.

Article first time published on

What is toilet stall?

A bathroom stall is an enclosed private space with a toilet or urinal available for use by the general public. Stalls vary in additional accommodations beyond toilet paper that range from a coat hook, trash bin, and toilet seat covers dispensers.

How thick is a toilet partition?

Bathroom stall walls vary in thickness from 1/2 to 1 inch, depending on what material they’re made of. The density of the restroom wall matters to your customers, as a solid and sturdy partition will make them feel safe and help form a quality impression of your business.

What do you use to partition a bathroom?

1. Powder Coated Steel. Powder coated steel is one of the most commonly used partition materials. …
2. Plastic Laminate. The core of this material is particle board, which is then covered in a layer of laminate and a thin sheet of steel. …
3. Solid Plastic. …
4. Phenolic Core. …
5. Stainless Steel.

What are dimensions of a toilet?

Overall, a standard toilet will be between 27 and 30 inches deep, with a back height of 21 to 31 inches and a width of about 20 inches. An ADA-compliant version needs to have a seat height of 17 to 19 inches. This is one reason why partitions around ADA-compliant bathrooms are different.

Why is the toilet always next to the shower?

Toilets tend to be next to bathtubs because both of them tend to be in a small room that is kept rather private from the rest of the house and because both of them need to have fairly substantial plumbing in order to operate correctly.

Can you replace a 10 inch rough in toilet with a 12 inch rough in toilet?

The rough-in for your bathroom plumbing should match the rough-in for the toilet. Even if a toilet is designed for a 10-inch rough-in, you can still install it in a space with a 12-inch rough-in.

How much space should be between toilet and vanity?

A toilet should have some elbow room between it and another fixture or vanity. The NKBA’s recommendation is at least 18″. Codes allow a minimum distance of 15″. If you’re placing your toilet in a compartment, it should be 36″ x 66″, although codes will allow 30″ x 60″.

How wide is a commercial toilet stall?

The layout should include where your tiled walls are, as well as, how wide and deep the compartments you want them to be. Standard toilet stalls are 36” wide by 60” depth. Partition stalls can have a minimum depth of 48” in most cases or up to 78” depth if needed.

What is the minimum clearance WXD for a toilet compartment bathroom stall with an out swinging door?

604.8. Toilet compartment doors, including door hardware, shall comply with 404, except that if the approach is to the latch side of the compartment door, clearance between the door side of the compartment and any obstruction shall be 42 inches (1065 mm) minimum.

Can toilet stall doors swing out?

These stalls, as you may have noticed, will always open outward. This is no accident. Given the lack of space in a typical bathroom stall, you can imagine that it would be quite impossible for a wheelchair to fit into the stall as the door was opening or closing.

Which bathroom stall used least?

Why? Because the first stall is the least often occupied by public bathroom users—meaning it’s also the cleanest. “Experts theorize that people tend to skip the first stall in favor of stalls farther back to have a little more privacy,” writes Dr. Mehmet Oz on Sharecare.

Why are bathroom stalls not fully enclosed?

Better Air Circulation: Better air circulation is one of the top reasons why there are gaps under toilet stalls. While restrooms with this kind of partition may still get a bit stinky from time to time, things would be even more overwhelming in a fully enclosed stall.

What is the cleanest bathroom stall?

According to studies, the middle stalls are to be avoided if possible. Apparently, people tend to choose the middle one because of the “centrality preference.” On the other hand, the first stall, which is the least used, is likely to be the cleanest.

How big are public restrooms?

Standard bathroom stalls generally measure between 36″ wide and 60″ long. To be ADA-compliant, a bathroom should have at least one accessible stall, which is large enough to comfortably allow a person in a wheelchair to use — a minimum of 60″ wide.

What are HDPE toilet partitions?

HDPE (high-density polyethylene) is a solid plastic material that can be used for a variety of uses. Due to its solid construction, it proves to be highly durable and even resistant to scratches, dents, and impacts. Its homogenous color makes it resistant to graffiti, which is a common scourge with bathroom stalls.

What are toilet partitions?

A toilet partition is the enclosure that surrounds most toilets in public bathrooms. It’s function is to provide privacy for the person using the bathroom stall. They can come in many different types and configurations, not to mention materials.

What are toilet partitions made from?

It’s made of steel panels with a core of honeycomb cardboard. These panels are sprayed with a powder coating that provides an easy-to-clean layer that’s resistant to corrosion and abrasion. The main benefit of powder-coated steel is that it’s the most cost-effective partition option.

How much width do you need for a toilet?

Toilets and Bidets (The NKBA actually recommends 32 inches.) There should be at least 24 inches of clear space in front of a toilet or bidet.
