What Is Considered a Standard Sliding Glass Door Size? A standard sliding glass door is 80-inches tall with a width varying from 60 inches to 72 inches depending on the space. In most homes, doorframes are measured to a standard size to make door replacements easy.

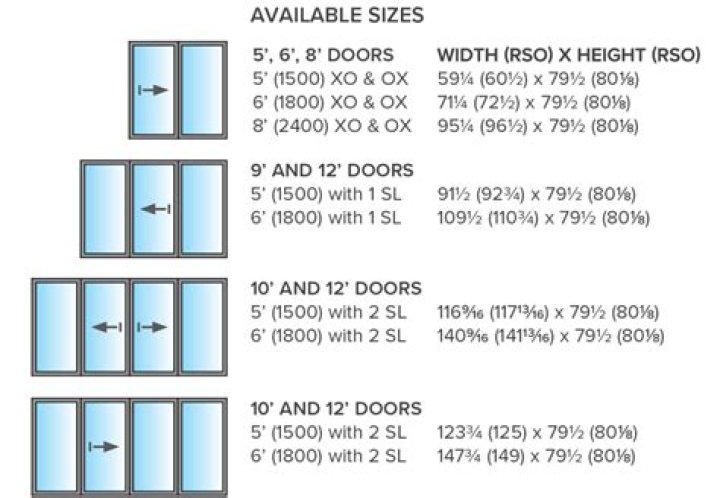

What sizes do patio doors come in?

• 8 feet (96 inches)
• 6 feet (72 inches)
• 5 feet (60 inches)

What is the standard size of French patio doors?

The size of standard french doors is customarily 80 inches in height and 72 inches in width. French doors, however, can also be available with a measurement of around 5 and 8 feet in width. French doors can be used for room entryways of different sizes.

How much space do you need for sliding glass door?

Standard Sliding Glass Door Size, Dimensions, and Measurements | Rest of the Options. So far, we have seen that the standard dimensions for the glass sliding door are taken as 80 inches as for the length and 60 – 72 inches for the width.

How wide are standard sliding closet doors?

You can adapt standard interior doors to use as sliding closet doors. These doors come in 24-, 28-, 30-, 32- and 36-inch widths. The standard height is 80 inches, which you can trim to fit your closet’s opening.

How wide is a 4 panel sliding glass door?

Standard four-panel sliding glass doors are 36 inches per panel, for a total width of 144 inches. They can vary in width, especially in older homes. For doors that are not standard sized, you may need to have the doors custom made.

What size sliding door do I need?

To determine the proper door width, add about 4 to 6 inches to your measurement. Ideally, the door will cover 2 to 3 inches beyond the opening on each side. To figure out what size track you need, double your final width measurement. Measure from the header to the floor to determine the door length you need.

How wide should closet doors be?

Typical widths can range from 24” to 72”. For spans up to 36”, your closet doors will have two panels or one door opening from the right or left. For widths between 36” and 72”, four panels will be needed for your bifold door, or two doors – one on each side.

What are typical door sizes?

The height for all passage doors must be a minimum of 80 inches and the standard width sizes for interior doors are 24”, 28”, 30”, 32” and 36”. The minimum recommended door width to allow persons with disabilities’ to pass through is 36 inches.

How much should sliding closet doors overlap?

Sliding doors need to overlap in the center by 2 to 3 inches, so keep that in mind as you figure your door measurements. Because not all doorways are plumb, measure the width of the doorway at both the top and bottom of the closet doorjambs.

Article first time published on

What is the rough opening for a 72 inch door?

Framing rough opening sizes are really quite simple. Just add 2″ to the width of the actual door size. You should add 2-1/2″ to the height of the actual door. This will give you room to space the door frame off of the sub-floor.

How is a sliding glass door measured?

Measure the door starting at the inside of the side jamb and extend the tape measure to the center stile at the opposite end. This measurement is the width. The height is determined by measuring at the top of the bottom track, the center, and the bottom. The smallest of the three measurements is the correct height.

Are French doors a standard size?

Standard French Door Sizes The standard height of a French door is 79.5 inches, and such doors are usually 6 feet wide, with the option to expand the width with sidelites.

Do sliding doors need a frame?

There are a number of ways to create a frame around your sliding wardrobe doors. Note: A frame is required if the aperture housing your sliding wardrobe is not true and square.

How much does it cost to install a patio door?

Installing a patio door costs between $1,200 and $10,000, with most homeowners paying an average of $2,500. That price includes professional installation, which costs between $70 and $120 per hour. A typical job takes between three and five hours to complete.

How much does it cost to put in a sliding glass door?

How Much Does It Cost to Install a Sliding Glass Door? Based on data from Fixr, the national average cost to install a sliding door is $2,760.

What size door do I need for a 31 inch opening?

Rough Opening WidthRough Opening HeightDoor Size to Order29.75″ – 31″81.5″ – 83″28″31.75″ – 33″81.5″ – 83″30″33.75″ – 35″81.5″ – 83″32″35.75″ – 37″ 37.75″-39″81.5″ – 83″34″ 36″

How do you tell a right or left hand sliding patio door?

Terminology. “Handedness” of a sliding door is expressed as seen by an observer outside the building. A left-handed door opens on the left side, and a right-handed door opens on the right. These relationships are sometimes described with the letters O and X, where O is the fixed panel and X is the sliding panel.

How can I tell what brand my sliding glass door is?

How do I find the manufacturer of my sliding glass door? Your best source of replacement parts will be the retailers that sell new doors of the same make as yours. The manufacturer’s name is usually stamped on the hardware or etched in a corner of the glass.

How wide is a 4 panel patio door?

Four panel door standard width: 12 inches (2,975 mm) 12 inches (3,585 mm)

How wide is a large door?

While a door width of 36 inches is oversized for an interior door, it’s the standard size for front doors. The standard height remains the same, however, at 80 inches. Most entry doors are slightly thicker than interior doors as well, with a standard thickness is 1¾ inches.

How wide is a standard door CM?

HEIGHT & WIDTHMetric (mm)Imperial (inches)Imperial (feet & inches)1981 x 76278″ x 30″6′6″ x 2′6″1981 x 83878″ x 33″6′6″ x 2′9″1981 x 91578″ x 36″6′6″ x 3′0″

How wide is an exterior double door?

If you have a double door entryway, the standard size will be 72” x 80”, or double the width of a single front door with the same height.

Are closet doors standard size?

Still, it can be incredibly helpful to know what the general or standard size of a closet door should be. The average measurement is at 30 inches wide and 80 inches tall. The size of your closet door can vary depending on the architecture of the room and the type of closet door you have.

What is the minimum width of a door?

The standard interior door width is 32 inches. This is the minimum width required for a passage door. You may also find a few narrower doors in stock, including 30 inches, 28 inches, and 24 inches.

What is the standard closet depth?

A clothes closet should have a minimum depth of at least 24 inches deep, so the clothes can clear the back wall. Shelves for women’s shoes should be spaced about 6 to 7 inches apart. Shelves for folded clothes should be placed around 12 inches apart.

Do sliding closet doors need bottom track?

With or without bottom track? Sliding door hardware with a bottom track is preferred for sliding closet doors because the track is visible. It can create a barrier between separate rooms. A ceiling or wall-mounting is ideal for interior sliding doors or room dividers.

What is the rough opening for sliding closet doors?

A 6-foot-wide closet opening is most common, but you can install closet doors in an opening of just about any width. Sets of bifolds are available in a variety of widths (in multiples of 2 inches) and bypass doors can be cut to any width desired. The standard height is 80 inches (the same as for an entry door).

What is bypass doors?

Bypass door hardware allows for one door to slide in front of the other rather than swing open into a room or closet. This can be done with two doors to make a double door bypass, or three doors to make a triple door bypass. … Reeb orders all Bypass Door Hardware from LE Johnson.
