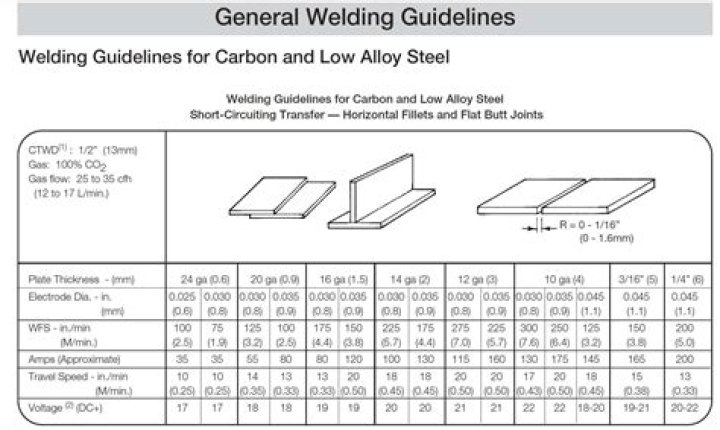

030-inch diameter makes a good all-around choice for welding a wide range of metal thicknesses in home and motorsports applications. For welding thinner material, use a . 023-inch wire to reduce heat input.

How wide should a MIG weld bead be?

for general fab work, you will be guided by the metal thickness again. for example if you are welding a lap joint in 3/16 thick angle iron, your leg size is going to be 3/16 because thats as far as you can go, for really thick stuff that requires multipass beads, about 1/2″ max is as good a guideline as any.

How much space do I need to weld?

For this purpose, R. Shaw, in his 1996 seminar “Structural Welding: Design and Specification,” recommended “at least 18 in. of clear space around the joint.” This clearance should be maintained until the inspection has been completed.

How wide should the weld be?

Genral rule of thumb on filet welds is your finished product should be as wide as the thickness of the thinner material. This means 1/2” thick, your finish welds should be 1/2” rather it be a weave or two or more beads.

How is weld width calculated?

The width of the weld cap, w, is given by W = 2(tan b x t) + g. The area of the excess weld metal is approximated by the formula (W x h)/2. The area provided by the root gap by g x t.

How thick should a weld be?

Welds ideally should be 1.5 times the thickness of the material being welded. So if you are welding two pieces of 1/4″ steel together then the weld would be . 25 x 1.5 = . 375 or 3/8″ of an inch.

Do overlaps and undercuts strengthen a weld?

Undercutting is the result of welding with excessive current, traveling too fast, or using an improper work angle. … Overlap occurs when the weld pool runs down to the lower side of the bead and solidifies on the surface without actually penetrating the base metal. True. Overlaps and undercuts strengthen a weld.

Can you stick weld indoors?

It is a bad idea to weld inside your home because there are so many risks of fire or reactions between gases. But you can set up a nice area to weld safely in a garage or similar structure with proper ventilation.

Why are my MIG welds so high?

Several issues in the MIG welding process can contribute to excessive spatter, including: Insufficient shielding gas. Dirty base materials, contaminated or rusty weld wire. Voltage or travel speeds that are too high.

What is the ideal arc length?

As a good starting point, arc length should not exceed the diameter of the metal portion (core) of the electrode. For example, an 1/8-inch 6010 electrode is held about 1/8 inch off the base material. … Too long of an arc length will create excess spatter in the weld joint. There is also a high potential for undercut.

Article first time published on

What is throat thickness of weld?

The throat of the weld is the distance from the center of the face to the root of the weld. Typically the depth of the throat should be at least as thick as the thickness of metal you are welding.

How is Dia inch welding calculated?

Welding inchdia in it is: Total joints of 4″ in it = 1(pipe with flange) + 1(pipe with elbow) + 1 (it is optional – if a pipe purchased is of 6m length then you need to weld pipe to pipe to gain 12m length spool, but if pipe purchased is of 12m length then it is not required). so inch dia = 4*3 = 12.

What defects should not be in good welding?

Gas cavities remaining inside the bead are an internal defect known as blow holes. The causes of these defects include the use of improper shielding gas; insufficient deoxidizer; oil, rust, plating or other matter adhering to the surface of the groove in the base material; and moisture contained in the material.

Why are arc strikes bad?

Arc Strikes result in localized base metal heating and very rapid cooling. When located outside the intended weld area, they may result on hardening or localized cracking, and may serve as potential sites for initiating fracture.

Why do I have holes in my MIG weld?

Porosity is usually caused by the contamination of gases trapped inside the meld. These gases are released during the welding process by the welding gun and absorbed by the molten metal. … This causes an uneven gas flow to the arc and creates pinholes.

What is the strength of weld per mm?

What is the strength of weld per mm length used to connect two plates of 10mm thickness using a lap joint? Strength of weld = te [fu/(√3 x 1.25)] = 410 x 4.2 /(√3 x 1.25) = 795.36 N/mm.

How do you measure throat for welding?

To calculate the throat size from a given leg size: Throat = Leg / √2. For approximate size use 1.41 for √2 .

Can you weld over a bad weld?

yes you can weld over an existing weld… but lots of factors come in play if you want it to be successful.

Do you push or drag MIG weld?

Push or pull: Here the rule is simple. “If it produces slag, you drag,” says Leisner. In other words, you drag the rod or wire when welding with a stick or flux-core wire welder. Otherwise, you push the wire with metal inert gas (MIG) welding.

Is MIG welding easy?

MIG welding is clean and easy and can be used on thin or thick metals. … MIG and flux-cored welding are easy to learn and can create extremely clean welds on steel, aluminum and stainless. Both processes have the capability to weld materials as thin as 26 gauge.

Should you weave when MIG welding?

When you weld each pass, treat it like a horizontal weld by weaving or swirling circles through the joint. If you’re running two passes, keep the bead narrower for the first pass.

What angle should a MIG gun be at?

Flat position When welding a butt joint (a 180-degree joint), the welding operator should hold the MIG welding gun at a 90-degree work angle (in relation to the work piece). Depending on the thickness of the base material, push the gun at a torch angle between 5 and 15 degrees.

What makes a bad weld?

Signs of a bad weld include: Burnout, no filler metal used, wide flat bead without distinct bead pattern, erratic beads, tungsten inclusion, porosity and/or undercutting.

How can I make my Weld stronger?

1. Clean Your Metal. Millscale on steel will be the enemy of a strong weld, adding impurities that weaken welds. …
2. Test Welding Settings. …
3. Vertical Uphill MIG Welding. …
4. Take an Extra Pass for Stronger MIG Welds. …
5. Blast Your Tacks Into Place. …
6. Optimize Your Welder Settings. …
7. Keep Your MIG Wire Short.

Is MIG stronger than stick?

Some argue that stick welding is stronger than MIG welding, since it offers better penetration for thicker materials. However, MIG welding can provide good welds despite not being as effective on thicker metals, and is better for joining thinner metals with a good finish and less risk of burn-through.

Is it safe to weld in a garage?

Safety for Garage Welding Projects Safety is the most important aspect of welding at home since a tiny spark can lead to a lot of damage, especially if the garage is connected to the house. Remove flammable materials such as rugs out of the vicinity of the welder as well as any other fuels or gases that aren’t in use.

What is the strongest type of weld?

TIG – Gas Tungsten Arc Welding (GTAW) TIG welding produces the strongest type of weld.

How do I know if my weld is strong?

A good weld is easy to distinguish. It will be straight and uniform with no slag, cracking, or holes. There will be no breaks in the weld. It shouldn’t be too thin and there should be no dips or craters in the bead.

Can you hold metal while welding?

Additionally, to avoid electrical shock never touch the electrode, metal parts of the electrode holder or any exposed wire connecting the electrode holder to the machine. Also, avoid welding while standing on metal floors such as grating or scaffolding.

What are the five essential of welding?

Travel speed is influenced by the type of welding current (DCEN, DCEP or AC), amperage, welding position, electrode melt rate, material thickness, surface condition of the base metal, type of joint, joint fit up and electrode manipulation.

What is a 6mm fillet weld?

Fillet welds are defined by the size of the leg length e.g. a 6 mm CFW is a continuous fillet weld having a leg length of 6 mm.
