Overcurrent protective devices, such as fused disconnect switches or circuit breakers, are designed to open or disconnect the circuit when an overload or short-circuit occurs, limiting damage to connected equipment and preventing fires.

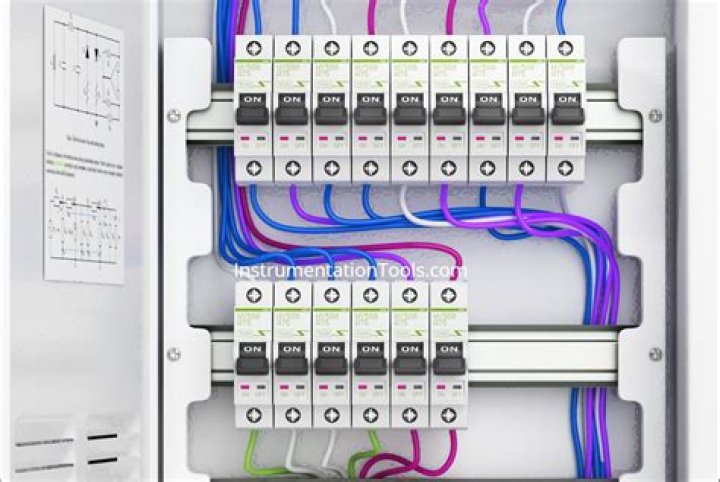

Is a circuit breaker considered a disconnect?

Disconnecting Means. A device, or group of devices, or other means by which the conductors of a circuit can be disconnected from their source of supply. This can include a switch, a circuit breaker, a cord and plug connection (sometimes), or a group of the aforementioned devices.

What do electricians call a disconnect?

In electrical engineering, a disconnector, disconnect switch or isolator switch is used to ensure that an electrical circuit is completely de-energized for service or maintenance.

Is a breaker a disconnect switch?

Unlike a switch, a circuit breaker automatically does this and shuts off the power immediately, or darn close to immediately. In this way it works as an automatic service protection device. … An exception to this is a disconnect switch, which is used to connect or disconnect power to an entire control panel, or machine.

Is a disconnect considered an outlet?

A: The disconnect switches are not considered “outlets”.

What is a main disconnect circuit breaker?

This large circuit breaker is known as the main breaker, and it plays a crucial role in the electrical system by offering the means of disconnecting power to the entire circuit breaker panel and hence shutting off power to the entire house.

Can a breaker be used as a disconnect for a motor?

RE: A Circuit Breaker in panel as a disconnecting means? And I’ll reiterate: A molded-case circuit breaker can be found in a panelboard. It’s allowed to feed a motor of any size, within practical or economic limits, as the disconnecting means if the in-sight condition is satisfied.

What is difference between switchgear and circuit breaker?

Switchgear contains fuses, switches, and other power conductors. However, circuit breakers are the most common component found in switchgear. During an electrical fault, a circuit breaker will sense the anomaly and interrupt the power flow, effectively limiting damage to the system.

Is a main switch a circuit breaker?

This is your main circuit breaker which controls the flow of power to your branch breaker. The main circuit breaker switch usually faces perpendicular to your branch circuit breaker switches. It sometimes looks like three or four breakers, together, with a single on/off breaker switch.

What are the three types of disconnects?

Disconnect switches can be divided into categories which include fusible, non-fusible, enclosed fusible and enclosed non-fusible.

Article first time published on

What is the difference between isolator and circuit breaker?

The major difference between the isolator and the circuit breaker is that the isolator disconnects the circuit at offload condition whereas the circuit breaker disconnects the circuit at on load condition.

Is a GFCI a disconnect?

A GFCI that has buttons marked off and on is permitted to be used as a motor controller and as a disconnect, but if you need lockable disconnect, it is not suitable.

What is not considered an outlet?

Where there is no receptacle, there is no outlet. See 210.8, which states upfront that it applies to receptacles. When we hard-wire a dishwasher, the terminations are in the utilization equipment, and there is no outlet.

Do Heatpumps need GFCI?

Heat pumps do not require a GFCI. Heat pumps fall under NEC 680.45 as a “circulation heater” which requires a GFCI when supplied by a brach circuit of 150 volts or less.

Do all motors need a disconnect?

A. Each motor must be provided with a separate disconnecting means unless the controller disconnecting means meets the necessary requirements to serve the disconnect for both.

Does a disconnect have to be lockable?

There are sections throughout the Code that state the disconnecting means is required to be lockable in the open position. This simply means when the disconnecting means is in the open (or off) position, a lock can be installed to keep the disconnecting means from being closed (or energized).

What size motor needs a disconnect?

Let’s take a high-level look. When you install a disconnect switch for a single-motor application, it must meet the following two criteria: Have an ampere rating at least 115% of the rated motor full load current. Have a horsepower rating the same or greater as the rated motor horsepower (at applied voltage)

What type of circuit breaker is used in houses?

Single-pole circuit breakers are the type most often found in homes today. They’re named single-pole because they’re designed to monitor the current of a single wire and trip in the event of a short or electrical overload.

How do you tell which breaker is which?

Solution: Head out to the main electrical panel, open the outside cover and there you see 20 – 30 or more circuit breakers. Don’t panic, on the backside of the panel cover there is a list by number of the breakers. Next to each breaker number is a description of each circuit and what it controls.

Do all houses have a main breaker?

1) A main breaker is only required at the service panel, which is the first electrical panel after the meter. … Some houses have a service panel, which may sometimes contain only the single disconnect breaker, on the exterior wall next to the meter and a distribution subpanel inside the home.

Is a circuit breaker the same as a safety switch?

A safety disconnect, or safety switch, is a device that monitors electric current in various applications. … A circuit breaker, on the other hand, specifically monitors for overloading a circuit. If too much power is being drawn by any particular circuit, the breaker will simply trip, cutting off power.

Where is the main circuit breaker?

The main circuit breaker is a large breaker usually located at the top of the panel but sometimes near the bottom or along one side. It controls all the power of the branch circuit breakers (the breakers controlling individual circuits) in the panel.

What is the difference between fuse and circuit breaker?

Fuses and circuit breakers are both designed to interrupt the flow of electricity. … The fuse works as a piece of metal that melts down when overheated. While a circuit breaker works by operating a switching mechanism when an overflow of electricity is detected.

What is a circuit breaker used for?

A circuit breaker is an electrical switch designed to protect an electrical circuit from damage caused by overcurrent/overload or short circuit. Its basic function is to interrupt current flow after protective relays detect a fault.

Is a switchgear and switchboard the same?

Switchgears and switchboards: the differences The main difference between switchgear and a switchboard lies with the voltage each is designed to handle. Switchgears are designed for high voltages (up to 350 kV) whereas switchboards are designed for voltages below 600V.

What are the different types of circuit breakers?

The three main types of circuit breakers are standard, GFCI and AFCI. Some models have dual functionality. Each handles different amp capacities and operates in different locations in the home.

What is service disconnect?

This implies that a service disconnect is a means to shut the power off between the facilities of the service utility (your power company) and the premise wiring (your property’s electrical system).

How do I choose a disconnect switch?

1. Examine the appliance manufacturer nameplate on the appliance. Determine the horsepower rating of the appliance. …
2. Convert from volt-amps, watts or kilowatts to horsepower. …
3. Select a disconnect switch with the same or greater horsepower rating as the appliance.

What is a non fusible disconnect switch?

Fusible switches have a fuse provision in the switch and enclosure assembly, enabling you to open and close the circuit while providing overcurrent protection. Non-fusible switches do not have an integral fuse option and provide no circuit protection.

How do you isolate a circuit breaker?

Isolate electricity to a particular electrical appliance by turning the switch on the wall socket to the “Off” position. By doing so you won’t need to trip the switch or remove the fuse that connects the circuit to all the wall sockets.

What is the difference between relay and circuit breaker?

Relays are controlling devices whereas Circuit Breakers are switching devices. A Relay can divert signals between two different electric circuits, whereas circuit breaker can only stop or flow the current in the circuit. A Relay won’t be able to prevent the arc.
