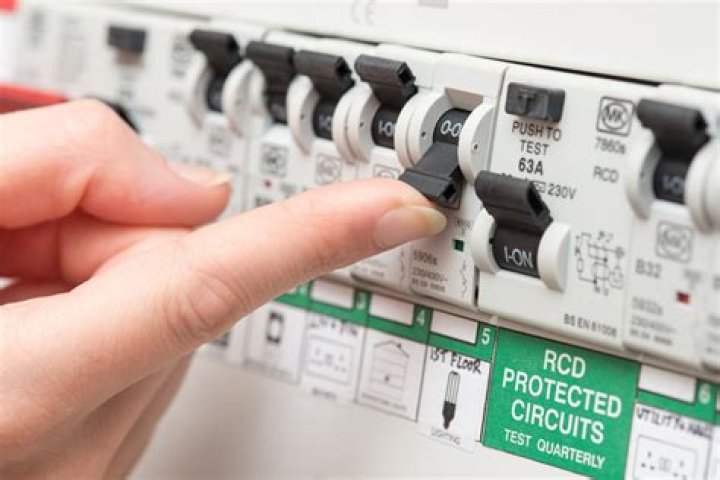

RCDs protect humans against electrocution in a way that fuses and circuit breakers do not. … If you have a new circuit installed, or a circuit is substantially modified, you may be required to have an RCD fitted under the Building Regulations (Part P) or BS7671 wiring regulations. This is a legal requirement.

Do you need RCD protection on an existing installation?

Previously, installation of an RCD could be avoided by labelling a socket to be used only for certain items. In the 18th Edition, this option has been removed, so RCD protection should be installed unless you have a documented risk-assessment demonstrating that it is not appropriate.

Do I need RCD in shed?

Basically, there will be no difference between having an RCD in the shed, or the house. The main point of having one in the shed is to stop the one in the house tripping. But to achieve that, you must run the cable to the shed from a non-rcd protected outlet in the CU.

Does Armoured cable need RCD protection?

swa’s steel armour is NOT accepted as sufficient protection for the cable when buried. there is no requirement to afford rcd protection to cables buried outside. socket circuits that COULD be used outdoors MUST have RCD protection, when this is a domestic installation.

Is having no RCD protection a C2?

The socket-outlet circuit appears to have no RCD protection; if the sockets are supplying equipment outside, this would be a C2, otherwise a C3.

Do all sockets need RCD protection?

For new installations and rewires, all socket-outlets with a rated current not exceeding 32A need to have additional protection by RCD, except where other than for an installation in a dwelling, a documented risk assessment determines that the RCD protection is not necessary.

Do rental properties need an RCD?

In short No. Although its strongly advisable to have RCD protection fitted in a rental property as it could save the tenant from a fatal electric shock as well as prevent a fire. Your legal duty of care is to provide a safe and habitable property.

Why do I need RCD protection?

An RCD is designed to protect against the risks of electrocution and fire caused by earth faults. For example, if you cut through the cable when mowing the lawn and accidentally touched the exposed live wires or a faulty appliance overheats causing electric current to flow to earth.

What does an RCD not protect against?

A pure RCD will detect imbalance in the currents of the supply and return conductors of a circuit. But it cannot protect against overload or short circuit like a fuse or a miniature circuit breaker (MCB) does (except for the special case of a short circuit from live to ground, not live to neutral).

Do cables need mechanical protection?

Electrical cables are installed in a wide variety of environments and it is often necessary to provide protection for these cables to prevent mechanical and environmental damage. Some of the methods for protection include: Reinforced Plastic Spiral Binding: used to group cables together so they don’t snag.

Article first time published on

What size SWA do I need for a shed?

Unless using an inverter freezer the volt drop is rather important, so if coming from the consumer unit about 42 meters is the limit with 2.5 mm SWA cable with a 16A supply. With 1.5 mm SWA same current then drops to around 24 meters.

Does SWA need to be buried?

SWA is direct burial and doesn’t need any additional mechanical protection. Depth is as deep as it needs to be.

What size wire do I need to run from house to garage?

As a general guideline, use 12 AWG copper conductors and 20 amp breakers and 14 AWG copper conductors, and 15 amp breakers. Since the outlets are located in the garage, they should have GFCI protection. You can get this protection with GFCI receptacles or a GFCI circuit breaker.

What do I need to put electric in my garage?

Build Your Garage Sub Panel Dig an 18-inch deep trench for the outdoor electrical wire, which you will run from the main panel box to the garage sub panel. Use 1 1/4-inch PVC conduit for a 100-amp sub panel or 1-inch PVC conduit if the sub panel is 50 amps or less. Run the conduit from the garage to the main panel box.

How can I run electricity from my house to my shed UK?

1. Find an electrician. …
2. Think about WHY you need to power your shed. …
3. Work out where the cable will run. …
4. Prepare the cable trench. …
5. Check you’re happy with the plan. …
6. Let the electrician do their work.

What is the code for no RCD?

If any circuit does not have an RCD then this must be recorded as a C2 – POTENTIALLY DANGEROUS as an MCB or fuse will not trip in the required time leaving items potentially dangerously live.

Is no RCD a fail on EICR?

If the Electrical Installation Condition Report (EICR) is Satisfactory then you do not need to replace the consumer unit, even if it does not have RCD protection. RCDs are only required by law in new builds, additions/alterations or rewires.

Is no RCD a C1?

C1 – there is a risk of injury, danger present, and instant remedial action needed. C2 – there is a potential hazard present, and immediate remedial work is needed. C3 – improvement is advised. within the inspection schedule.

Is no RCD protection a fail?

Without RCDs, larger earth faults could cause large amounts of current to flow without tripping. … Having RCD protection on your circuits means that you can complete further electrical installation works at your property in the future without having to worry about upgrading the fuse board at this time.

Do landlords need metal consumer unit?

Metal Consumer units have been a requirement in ‘NEW INSTALLATIONS‘ since Amendment 3 to the 17th edition of the wiring regulations. This is not that new, it actually became a requirement for new consumer unit installations as of 1st Jan 2016.

Do I need an RCD fuse box?

Many electricians will tell you that having a RCD is essential and is not usually present in older fuse boxes. It is a potential life saver as it can detect small leakage currents in the range 5–30 mA and can disconnect in less than 300ms which may prevent electrocution and injury.

Do outdoor sockets need RCD?

If you use any portable electrical appliances outdoors, they must be protected by a 30mA RCD. … And if you use an existing indoor socket to power appliances outdoors and it doesn’t have RCD protection, you’ll have to use a plug-in RCD.

Do surface mounted cables need RCD protection?

If cable will be surface run, no rcd required but don’t put a socket on for the boiler, use a fcu. If you use a socket,it will need rcd protection.

Is it illegal to have a plug socket under the sink?

Take it you mean fit a socket in the cupboard below the sink? – yes this is permissible but the socket should be accessible and mounted so its unlikely to get water drips on it should the waste or other pipe below the sink leak.

What is the difference between an RCD and a circuit breaker?

The difference between a circuit breaker (MCB) and a RCD Its basic function is to interrupt current flow (break the circuit) after a fault is detected. An RCD, which stands for Residual Current Device, is designed for human safety, and can often be life-saving.

Do hand dryers need RCD protection?

In view of IEE wiring regulation, hand dryers connected to FSU do not need RCD protection. Personnally, the hand dryer already fixed at 2m from basins. RCD will cause nuisance.

Will an RCD trip with no earth?

Without the ground wire there is only one level of safety. Testing the RCD not only proves that the RCD works but it proves that there is a ground connection. This is because the test function connects a resistor between line a ground. If ground is open circuit no current will flow and the RCD will not trip.

What was the purpose of RCD?

RCDs are electrical safety devices designed to immediately switch off the supply of electricity when electricity leaking to earth is detected at harmful levels. They offer high levels of personal protection from electric shock.

Is an RCD the same as a GFCI?

Plug the RCD into your electricity outlet, plug your appliance into the RCD, and you’re all ready to go. … In the United States, a device like this is more often referred to as a Ground Fault (Circuit) Interrupter (GFI/GFCI), though RCDs and GFIs/GFCIs are not completely equivalent.

Does a cooker circuit need RCD protection?

Only need to RCD-protect the cooker circuit if the cooker unit is a cooker switch of the type which incorporates a 13A socket. Otherwise there’s no need.

Can I run electric cable outside?

You can run electrical wire outside to nearly any location. Although some types of electrical cable do not have to be enclosed in conduit for outside installation, enclosing any exposed cable is a good idea. Schedule 40 polyvinyl chloride (PVC) conduit for electricity is gray and is rated for sunlight resistance.
