The metal, copper, has a face centered cubic crystal structure. To generate this crystal, a basis of one copper atom is placed on the lattice points of the face centered cubic Bravais lattice.

Is copper fcc or BCC?

AluminumFCCFCCCadmiumHCPBCCCopperFCCHCPGoldFCCBCCIronBCCHCP

Is copper a cubic crystal?

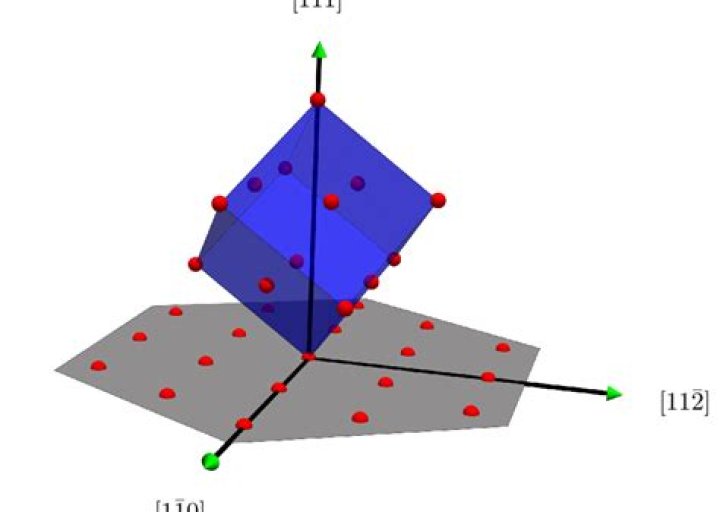

Solid copper can be described as the arrangement of copper atoms in a face-centered-cubic (fcc) configuration. A copper atom is found at each corner and in the center of each face of a cube as depicted in Figure 1.

Is copper Face centered?

Copper has the face – centered cubic structure.

Is copper fcc lattice?

Copper has face – centered cubic (fcc) lattice with interatomic spacing equal to 2.54.

What is a face-centered cubic unit cell?

Face-centered cubic (FCC or cF) is the name given to a type of atom arrangement found in nature. A face-centered cubic unit cell structure consists of atoms arranged in a cube where each corner of the cube has a fraction of an atom with six additional full atoms positioned at the center of each cube face.

Is an example of face Centred cubic cell?

physical metallurgy. …of each face (known as face-centred cubic, or fcc). Examples of metals with the hcp type of structure are magnesium, cadmium, zinc, and alpha titanium. Metals with the fcc structure include aluminum, copper, nickel, gamma iron, gold, and silver.

What is the difference between body-centered cubic and face-centered cubic?

The most direct difference between FCC and BCC crystals is in the atomic arrangements. The face-centered cubic structure has an atom at all 8 corner positions, and at the center of all 6 faces. The body-centered cubic structure has an atom at all 8 corner positions, and another one at the center of the cube.

How many atoms face-centered cubic?

Face Centered Cubic This unit cell uses 14 atoms, eight of which are corner atoms (forming the cube) with the other six in the center of each of the faces.

Is FCC stronger than BCC?

Thus FCC metals deform easier than BCC metals and thus they are more ductile. BCC metals are infact stronger than FCC metals.

Article first time published on

Is Diamond a face centered cubic?

The insulator, diamond, also has a face centered cubic crystal structure. To generate this crystal, a basis of two carbon atoms is placed on each lattice point of the face centered cubic bravais lattice.

Which of the following metal has face Centred cubic structure?

Metals that possess face-centered cubic structure include copper, aluminum, silver, and gold.

Is CCP and FCC same?

Face Centered Cubic (fcc) or Cubic Close Packed (ccp) These are two different names for the same lattice. We can think of this cell as being made by inserting another atom into each face of the simple cubic lattice – hence the “face centered cubic” name.

What is the radius of FCC?

The relation between edge length (a) and radius of atom (r) for FCC lattice is √(2a) = 4r .

How do you find the lattice constant of copper?

The atomic radius of copper is 0.128 nm, while that of iron is 0.124 nm. Calculate the lattice constant, a, of the cubic unit cell. If the space lattice is SC, the lattice constant is given by the formula a = [2 x r].

Is gamma iron a body-centered cubic space lattice?

The alpha iron (α-Fe) is a body-centered cubic (BCC) and the gamma iron (γ-Fe) is a face-centered cubic (FCC).

Which is the example of simple cubic structure?

This unit cell only contains one atom. Its packing efficiency is about 52%. To packing efficiency, we multiply eight corners by one-eighth (for only one-eighth of the atom is part of each unit cell), giving us one atom. An example of a Simple Cubic unit cell is Polonium.

Is gold metal a simple cubic unit cell?

For all unit cells except hexagonal, atoms on the faces contribute 12 atom to each unit cell, atoms on the edges contribute 14 atom to each unit cell, and atoms on the corners contribute 18 atom to each unit cell. Metallic gold has a face-centered cubic unit cell (part (c) in Figure 12.5).

What is face-centered?

Definition of face-centered : relating to or being a crystal space lattice in which each cubic unit cell has an atom at the center and at the corners of each face — compare body-centered.

How many face-centered cubic unit cell?

Crystal StructureFace-centered Cubic (FCC)Coordination Number12Number of Atoms per Unit Cell4Number of Octahedral Interstitial Sites4Number of Tetrahedral Interstitial Sites8

Is aluminum face-centered cubic?

Aluminum, Al At room temperature Aluminum has the face-centered-cubic crystal structure with a basis of one Ni atom. The fcc unit cell is illustrated. E = 69 GPa, sy = 40 MPa, UTS = 200 MPa, and a fracture strain of 0.5.

How do you find the density of a face-centered cubic cell?

Face-Centered Cubic Unit Cell: The total number of atoms present in a face-centered cubic unit cell are four. Hence, the density of a face-centered cubic unit cell is 4 x M / A3 x Na.

What is the coordination number of face-centered cubic?

The face-centered cubic (fcc) has a coordination number of 12 and contains 4 atoms per unit cell.

What is the most efficient space lattice?

Solution: The packing efficiency of both types of close packed structure is 74%, i.e. 74% of the space in hcp and ccp is filled. The hcp and ccp structure are equally efficient; in terms of packing. The packing efficiency of simple cubic lattice is 52.4%.

Is graphite FCC or BCC?

MaterialLattice constant (Å)Crystal structureC (graphite)a = 2.461 c = 6.708HexagonalSi5.431020511Diamond (FCC)Ge5.658Diamond (FCC)AlAs5.6605Zinc blende (FCC)

Why does FCC have high ductility?

This is because their symmetry provides closely packed planes in several directions. A face-centered cubic crystal structure will exhibit more ductility (deform more readily under load before breaking) than a body-centered cubic structure.

What are the 12 slip systems in BCC?

Thus, a slip system in bcc requires heat to activate. Some bcc materials (e.g. α-Fe) can contain up to 48 slip systems. There are six slip planes of type {110}, each with two <111> directions (12 systems). There are 24 {123} and 12 {112} planes each with one <111> direction (36 systems, for a total of 48).

Is steel a FCC or BCC?

The gamma phase is called austenite. Austenite is a high temperature phase and has a Face Centred Cubic (FCC) structure [which is a close packed structure]. The alpha phase is called ferrite. Ferrite is a common constituent in steels and has a Body Centred Cubic (BCC) structure [which is less densely packed than FCC].

Why is diamond APF so low?

atomic packing factor (or) packing density is 0.34. It is the lowest packing density material because in diamond, carbon atoms have low mass number, and hence a smaller radius. small atoms cannot be packed closely.

Is graphite a lattice?

Here, the principal structural unit is represented by a layer of carbon atoms consisting of hexagonal rings. If such layers are regularly oriented relative to one another, there will arise a graphite lattice, whose type depends on the order of alternation of the layers.

What is the APF for diamond?

Diamond has eight atoms per unit cell, so the diamond packing fraction equation now becomes: Packing fraction = 8 x (V atom) / V unit cell. Substitute the volume of the atom into the equation. Assuming atoms are spherical, the volume is: V = 4/3 × π × r3.
