Neutral is a circuit conductor that normally completes the circuit back to the source. Neutral is usually connected to ground (earth

What happens if you connect earth to neutral?

The neutral is always referenced to ground at one, and ONLY one, point. If you touch the neutral to ground anywhere else, you will create the aforementioned ground loop because the grounding system and the nuetral conductor are now wired in parallel, so they now carry equal magnitudes of current.

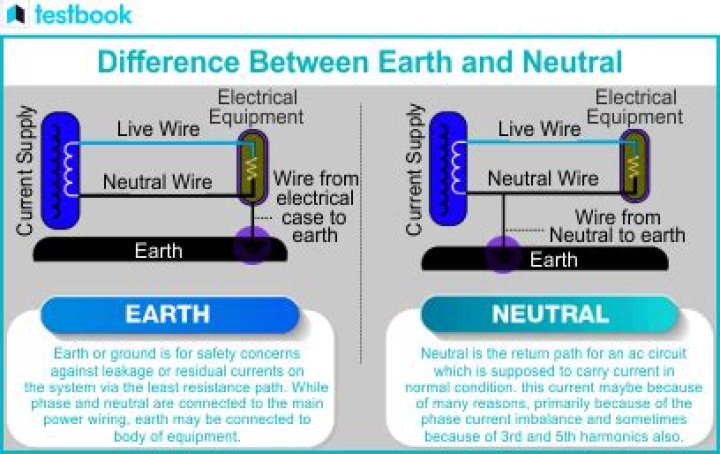

Is earth the same as neutral?

EarthNeutralThe earthing connection can be executed independently or it may be connected through a neutral line.It has to be connected through a neutral line.

Should ground be connected to neutral?

No, the neutral and ground should never be wired together. This is wrong, and potentially dangerous. When you plug in something in the outlet, the neutral will be live, as it closes the circuit. If the ground is wired to the neutral, the ground of the applicance will also be live.

Can we touch earth wire?

When you touch a ground wire which is effectively earthed while you are standing on ground, there is no potential difference between the ground wire and you. No current would flow in the absence of a potential difference.

What happens if neutral is not grounded?

Hazard of Open Service Neutral If the grounded (neutral) service conductor is opened or not provided at all, objectionable neutral current will flow on metal parts of the electrical system and dangerous voltage will be present on the metal parts providing the potential for electric shock.

How can you tell if the earth is neutral?

Take a light bulb holder, connected with two wires i.e., for positive and negative terminals of the bulb. Now insert one of the wires in phase and the other in neutral. The bulb glows indicating the power supply. Take out the wire from neutral and insert it into the Earth’s hole.

Is earth neutral or negatively charged?

The Earth surface is negatively charged. According to the charge-neutrality principle, the electric charge of the whole Earth is ZERO.

Can neutral and ground be connected together in main panel?

When Should Grounds & Neutrals Be Connected in a SubPanel? The answer is never. Grounds and neutrals should only be connected at the last point of disconnect. This would be at main panels only.

Can live and earth be connected together?

If earth and live are connected together in a three pin plug and when you insert the plug in a socket, you are shorting live and earth wires together which results in blowing the circuit fuse or tripping the circuit breaker.

Article first time published on

What is the resistance between earth and neutral?

Earth pit, resistance must be less than 5 ohms and neutral wire to be connected to the earth pit, to make it zero potential.

Can you get a shock off an earth wire?

You will not get a shock from any point of mains power unless touching something else. Not necessarily, if you receive a shock from simply touching a ground conductor that happens to be (incorrectly) live, it can go to earth through the body.

Is the earth wire live?

The plug contains three wires – the live, neutral and earth wires. In a plug, the live wire (brown) and the neutral wire (blue) are the two wires that form the complete circuit with a household appliance. The earth wire (green and yellow) does not normally form part of the circuit and is included as a safety wire.

How do you know if your house is earthed?

Take one of the wires and place it in the earthing port, which is the third hole at the top or bottom of your outlet. Place the second wire in the live port again to see if the lightbulb illuminates. If the lightbulb has the same intensity as your first test, then the outlet is properly earthed.

How do we know that the earth is connected?

Earthing check by using a multimeter So it means that the earth’s resistance is proper. Then connect the multimeter across the earth and neutral and if the voltage is below 2 volts then the earthing is proper.

Is neutral connected to earth UK?

The neutral is still earthed at the substation but it is also earthed at several other places including at the end of the circuit. There is no separate earth wire in the distribution cable. Each house takes its earth connection from this combined neutral and earth conductor.

Why is neutral earthing needed?

Neutral earthing resistors are used to limit the fault current in transformers When a phase to earth occurs, the fault current is limited only by the soil resistance. This current, which can be very high, can damage the windings.

What is advantage of neutral earthing?

Voltages of the healthy phases do not exceed line to ground voltages i.e. they remain nearly constant. The high voltages due to arcing grounds are eliminated. The protective relays can be used to provide protection against earth faults.

Does 240V need a ground?

All 120 volt and 240 volt AC electrical circuits require a separate ground wire which also connects to the ground system of the panel where the circuit originates. If a device is rated for only 240V, only two un-grounded (hot) conductors are required for supply to device.

Does neutral wire carry current?

A neutral wire is used to complete the flow of electricity, it acts as a return path for the hot wire current. … During normal operations, the neutral wire will carry current. We can see neutral in most of the electrical equipment, mostly in non-linear loads.

Is earth wire positive or negative?

The purpose of a ground wire is to give excess electrical charges a safe place to go. The solid mass of earth below our feet has a negative electrical charge, which means positive electrical charges are naturally attracted to it.

How is the earth positively charged?

When lightning from a cloud strikes the earth, the earth has a positive charge with respect to the cloud. The cloud discharges its electrons into the earth. During the discharge, the air is super heated and attains a plasma state that is highly conductive.

What is earth potential?

We take potential at the surface of earth as reference and is defined as zero. By convection, electrostatic potential of earth is taken to be zero. It is considered that earth is a storehouse of infinite negative charges.

Can the neutral wire shock you?

So even the current returns through neutral (only from a connected load that completes the current flow circuit) you touching the neutral with a 0V cant get you a shock. But its not safe to touch neutral wire! It is possible that the path to ground on neutral is not very good.

What happens if live touches earth?

If a live wire touches the earth wire, you get a spark and the circuit breakers blow.

What is difference between earthing and grounding?

Earthing and grounding are similar terms. … The main difference between earthing and grounding is that the earthing refers that the circuit is physically connected to the ground with Zero Volt Potential. But, grounding refers that the circuit is not physically connected to ground, but still has zero potential.

Why is voltage neutral and earth?

Neutral-to-earth voltage (N-E), sometimes called “stray voltage,” is a condition that results when an electrical current flows through a neutral conductor. … Leaks and non-connected ground systems create electric charges in the earth that aren’t normal when an electric system is operating properly.

Why neutral-to-earth voltage is high?

Even when wiring is up to code, neutral-to-earth voltages may be sufficiently high to cause stray voltages. Many times, elevated neutral-to-earth voltages are caused by such things as: Faulty electrical equipment, Improper or faulty wiring, and.

What is the resistance between live and earth?

Thus, the resistance between poles or to earth must never be less than half of one meg ohm (0.5 M Ohms) for the usual supply voltages.

Why did I get shocked on the ground wire?

This could be because it is broken or improper grounding. Since the ground wire is connected to equipment cases it is crucial that there is no voltage on it. Sure sure can be if someone wires the socket incorrectly. For any wire to shock you, there must be a potential difference between you and the circuit concerned.

Is it safe to touch a ground rod?

The grounding wire takes the electricity to the ground through a grounding rod or pipe where it can safely be neutralized. … The grounding wires are safe to touch unless there is an electrical surge that causes electricity to flow through the grounding wire.
