Pound for pound, glulam is stronger than steel and has greater strength and stiffness than comparably sized dimensional lumber. … Glulam is a stress-rated engineered wood beam composed of wood laminations, or “lams”, that are bonded together with durable, moisture-resistant adhesives.

Is glulam as strong as steel?

When looking at strength to weight ratio, glulam is actually around 3 times stronger than steel! Steel does have a much higher allowable stress, so steel members tend to be smaller than the equivalent glulam member, but the glulam is usually lighter.

How strong is a glulam beam?

The beams withstood a range of loads between 69,000 and 95,800 pounds. Thanks to the new Centennial Research Facility, FPL is one of the few locations worldwide that has the capacity to test such large wood specimens. As FPL engineer Doug Rammer explains, that capability is key to determining their strength.

What are the disadvantages of glulam?

Quality. The second disadvantage of glulam timber is its quality. Glulam Timber is made by joining several timber pieces. If defective timber is used in the middle of the timber block during production, this malfunctioning timber can cause the entire timber block to deteriorate.

Can glulam beams be used instead of steel?

Versatile – Glulam can be used for almost any type of structure. Light – Glulam is one-sixth the weight of a reinforced concrete beam (two-thirds the weight of steel). Economical – Our competitive pricing aside, Glulam’s lower weight leads to savings in transport, foundations and building.

Can glulam get wet?

Guard against direct exposure of glulam members to severe conditions like high temperatures, rain, and other damaging weather conditions. Hot/dry and wet/winter climates can create high-risk environments, depending on how quickly the moisture content changes.

Is glulam a timber?

Glued laminated timber or glulam as it is more commonly known, is an engineered wood product, manufactured from layers of parallel timber laminations – normally Spruce or Pine but occasionally more durable timber species such as Larch, Douglas Fir or even hardwoods such as Oak or Sweet Chestnut are used.

What are glulam advantages?

Glulam beams are very efficient to produce. The energy required to produce a glue-laminated beam from the log is only a fraction of the energy required to produce steel or concrete. Glulam has superior earthquake resilience and greater resistance to fire than any other structural construction material.

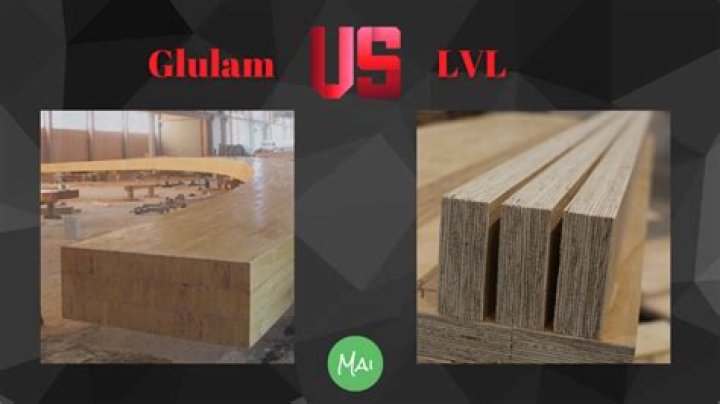

Is glulam the same as LVL?

A glulam beam looks like a stack of 2 x 4s (or larger lumber) glued together on their broadsides. This is in contrast to other engineered members, such as LVL (laminated veneer lumber) and Microlam beams, which look like very thick plywood, with very thin layers of wood glued together to form a thicker mass.

Are glulam beams sustainable?

Glulam is usually known as the new steel, mostly because of its moldability and high strength properties. Aside from the fact that glulam creates opportunities for architects, contractors and hobby carpenters to create small and large constructions, it is also a sustainable choice for the future.

Article first time published on

Is glulam stronger than plain timber?

Glulam has been shown to be as strong as steel, with greater strength and stability than similarly sized standard dimensional lumber. … As compared to solid sawn lumber posts, Glulam is a stress-rated engineered wood product composed of layers of bonded wood laminations running the length of the post.

Is glulam considered heavy timber?

However, in consideration of engineered wood products, IBC Table 2304.11 (IBC 2015 Table 602.4) provides equivalent glulam and SCL sizes that qualify as heavy timber. For most building elements other than heavy timber, passive fire-resistive requirements are in the form of a required fire- resistance rating (FRR).

Is a glulam stronger than a solid beam?

The strength of Glulam can also be considered more reliable than solid beams because while the individual lams might have a knot or imperfection, the effect of those imperfections will be lessened by the lams nearby that don’t have imperfections and act as stabilizers for one another.

Are glulam beams more expensive than steel?

Plank for plank, it’s stronger than steel and dimensional lumber. It’s cost effective. While glulam is more expensive than regular timber, it’s similar in price to other types of engineered wood.

How far can you span with glulam?

In large open spaces, glulam beams can span more than 100 feet. One of the greatest advantages of glulam is that it can be manufactured in a wide range of shapes, sizes and configu- rations.

How much does glulam cost?

Glulam beams cost $6 to $34 per linear foot on average. Glulam means “glued laminated timber,” and contains multiple thin layers of wood bonded together with strong glues. This type of engineered beam is very strong and highly customizable. It’s even available in curved shapes for vaulted ceilings.

Is glulam a hardwood or softwood?

Glulam is an engineered wood product, manufactured from layers of parallel timber laminations (normally spruce or pine but occasionally more durable timber species such as larch, Douglas fir or even hardwoods such as oak or sweet chestnut).

Is glulam fire resistant?

Glulam beams and columns are designed to withstand fire class R60 or R30, which means that they retain their stability during a fire in 60 and 30 minutes respectively.

How strong is laminated wood?

LVL has a “maximum allowable bending stress” of 2,800 or 3,000 psi . And according to this source , most wood has a maximum bending stress of about half that. So, yes. LVL beams will bear more weight than the same size wood beam.

Can you paint glulam beams?

Can you stain or paint Glulam beams? Yes, absolutely. We recommend using oil based paints and stains. Water based paints and stains can cause the glulam to swell and promotes checking.

Is LVL waterproof?

LVL is made from rotary-peeled veneers that are bonded together under heat and pressure into large panels that are cut into range of widths. Phenol-formaldehyde resins provide waterproof bonds.

Can glulam be exposed?

Yes. Treatment to hazard class 3 (H3. 2) is recommended for all Glulam beams exposed to the weather. … Because TimberLab Glulam is chemically inert, it is ideally suited to corrosive atmospheres such as marine structures, fertilisers and scouring plants; where steel is subject to rust and corrosion.

Who invented glulam?

Otto Karl Freidrich Hetzer, a German carpenter and inventor, obtained a patent in 1901 for a straight beam composed of several laminations bounded with adhesive. Hetzer further refined his work, and five years later was given a patent for curved glued laminated timber construction.

What is the strongest engineered wood beam?

Power Beam® – 3000Fb – 2.1E – 300F Power Beam® is the strongest engineered wood product (EWP) on the market with design values of 3000Fb – 2.1E – 300Fv.

What does glulam stand for?

Glued Laminated Wood (Glulam) is a structural material manufactured through the union of individual wood segments. When glued with industrial adhesives (usually Melamine or Polyurethane resin adhesives), this type of wood is highly durable and moisture resistant, capable of generating large pieces and unique shapes.

What are the disadvantages of LVL?

Although its dimensional stability is better than solid wood, the product may result in some defect, such as warping, if it is not properly stored in the warehouse. Also, LVL requires high capital investment to have relatively low production cost.

What are the disadvantages of laminated timber?

• Cannot be refinished. One popular function of natural timber flooring is that it can be sanded back and refinished to renew its appearance over the years. …
• Not moisture-proof. Being made of wood, laminate flooring is not impervious to the effects of moisture.

How is glulam manufactured?

The glulam manufacturing process consists of four phases: (1) drying and grading the lumber; (2) end-jointing the lumber into longer laminations; (3) face gluing the laminations; and (4) finishing and fabrication. Figure 10.9-5 shows the glulam process.

How much does a glulam beam weigh?

Weight of Glulam (Glued Laminated Timber)5-1/2″0.17 lbs27.56-3/4″0.21 lbs33.758-3/4″0.27 lbs43.7510-3/4″0.34 lbs53.75

Can glulam be used externally?

Yes, as long as your load and span requirements are in line, treated Glulams can be used for most exterior applications. The most common applications are going to be for decks, large pergolas, awnings, and covered porches. The only real project where these can’t be used is for marine applications, such as a dock.

What is the difference between glulam and CLT?

CLT and glulam differ in the ways that they are used in a building. CLT is used for surfaces such as walls, floors, and floor separation. Glulam is primarily used for the loadbearing frame in a building such as rafters, beams, or columns. CLT is made by cross laminating several layers perpendicular to each other.
