Higher STC ratings generally are better. … This means that extremely low frequencies don’t register on the STC rating scale, thus when a sound on one side of a wall is below 125Hz, the ability of the wall to block sound cannot be calculated. STC is not a direct measure of how many decibels of sound a wall can stop.

What is considered a good STC rating?

STC rating of 38-42 is considered good soundproofing for residential. STC rating of 50-65 is professional, commercial soundproofing for recording studios, etc. These terms and definitions are related to Sound Transmission Class and will help provide the full picture of how sound is measured. dBa – A-weighted decibels.

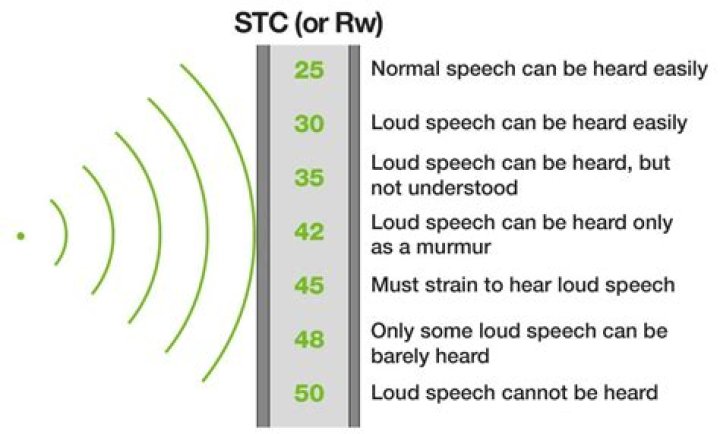

Is STC 40 good?

STCWhat can be heard at this level40Loud speech can be heard, but not understood45The threshold at which privacy begins50Loud sounds can be heard, but are very faint60+At this level, good soundproofing begins. Neighbors generally are not disturbed by very loud speech from inside.

What does a high and low STC rating mean?

The STC or sound transmission class is a single number method of rating how well wall partitions reduce sound transmission. The STC provides a standardized way to compare products such as doors and windows made by competing manufacturers. A higher number indicates more effective sound insulation than a lower number.

What is the STC rating of 2 layers of 5/8 drywall?

With two sheets total, of 5/8” drywall utilizing standard insulation we often see STC ratings ranging between 30-34. With two total sheets of ½” drywall (common for residential interior walls) we usually see an STC rating of around 33.

What does an STC rating of 50 mean?

A sound blocking level of STC 50 means that a listener in a quiet room would need to exert effort to hear raised speech levels in adjacent rooms, and the speech would not be understandable or disruptive.

What is a good STC rating for floors?

The higher the number, the higher the resistance – the better. To meet International Building Code – both IIC and STC need to meet the minimum of 50 to pass. Many larger luxury condo associations and municipalities are now looking at the higher 50’s and lower 60’s range.

What is a good STC rating for walls?

For multi-family construction, the minimum IBC code is STC=50. However STC=60+ is recommended for party walls in higher quality construction such as hotels, townhomes, condos, and certainly quality home theaters. The FHA recommendations for Luxury Grade 1 dwellings are also 55 to 60.

How do I get a 50 STC rating?

Add Soundproofing Membranes: If you need to achieve an STC of 50 or higher, consider using a soundproofing membrane. These products offer decoupling by separating the drywall from studs, and also significant mass increases.

What STC rating is soundproof?

In many cases less noise will be coming through the Soundproof Windows than the walls. Most walls have an STC of 43-48: Soundproof Windows usually have an STC rating of 48-54.

Article first time published on

What STC is soundproof?

An effective soundproofing system will perform below the 125Hz STC frequency cutoff.

Are STC ratings additive?

STC is a rating number derived mathematically via a laboratory or field acoustic test which describes how well a construction assembly (wall, floor/ceiling assembly etc.) … Unfortunately, STC is not an additive process.

What does STC 60 mean?

Loud speech audible, music easily heard. STC 52-55. Loud speech audible if straining to listen, music can be heard and may still be disturbing. STC 57-60. Loud speech essentially inaudible, music can be heard faintly but bass may still be disturbing.

What does STC 45 mean?

A sound blocking level of STC 45 means that a listener in a quiet room would hear raised speech in adjacent rooms, but would not be able to understand the conversation. The transmitted noise would not typically be disruptive. … Examples include patient rooms1, enclosed offices2, and classrooms along corridors3.

What is STC rating for doors?

Sound Transmission Class Rating for Doors determines how successful it will be at blocking sound transfer. The STC rates the ability of different door materials, construction, and assemblies at preventing sound movement over a range of 16 standard frequencies.

What is the STC rating of QuietRock?

QuietRock 545 on a single stud wall has an STC rating of 56.

Is STC 60 good?

An STC rating of 20 is considered very poor while a rating of 60 is considered excellent . For example, if you were in a room where a wall joining an adjacent room had an STC rating of 20 you would be able to hear someone speaking at a low volume through that wall.

How do I make my walls quieter?

1. Choose a Noise Reducing Drywall. Traditionally to reduce noise transfer between rooms you’d use a resilient channel. …
2. Insulate Interior Walls. …
3. Float the Floors. …
4. Soften the Surfaces. …
5. Seal it Up. …
6. White Noise.

What is the quietest flooring?

1. Carpet Flooring Reduces Impacts. One of the quietest flooring options available is carpet flooring. …
2. Cork Flooring Is a Sustainable Option. Another great option for muffling noise is cork flooring. …
3. Vinyl Flooring Mitigates Sound Well.

What is the STC rating of carpet with pad?

The best pad or underlayment for noise reduction is one that has an IIC/STC rating of at least 50, which is the minimum required by the International Building Code for sound reduction. The higher the number, the better the underlayment is at reducing noise.

What is STC rating for underlayment?

STC is a sound rating that attempts to measure the effectiveness of an assembly in addressing ambient or airborne sound. The test measures airborne sound transmission loss between 125 and 4000 Hz IIC. Sounds defined in this range include voices, music, televisions, pet noises, and others common to habitation.

Which insulation is best for soundproofing?

When soundproofing is your goal, your best options out there are fiberglass insulation and blown-in cellulose insulation. Both materials are incredibly good at their jobs; they insulate incredibly well but also have the coveted noise-reducing properties that many homeowners are seeking.

How do you calculate STC for walls?

Find the average transmission loss: Add up all the total frequencies you recorded, then divide that number by the total number of frequencies you tested. For example, if you recorded all 16 frequencies, divide your total by 16. The number you calculate is your STC rating.

What does STC 35 mean?

When we say STC-35, it means the enclosure, wall partition or door reduce noise by 35 decibels. … A sound reduction of 35 decibels is very high. Most similar soundproof enclosures on the market reduce noise by only 15 to 25 decibels.

Is QuietRock fire rated?

QuietRock® 530 is a fire rated, 5/8” impact resistant sound damping gypsum panel equipped with a thin layer of steel in the center.

How many decibels can be heard through a wall?

35 dB allows normal conversation to be heard through the wall. 40 dB allows loud conversation to be heard through the wall. 50 dB will prevent loud conversation from being heard through the wall.

How do you sound proof a room?

Cover walls with thick blankets, moving pads, tapestries, or quilts. Virtually any soft material will work, though thicker ones absorb more sound than thinner materials. If you don’t mind adding an industrial look to the room, fasten sound-absorbing panels to the walls and, if necessary, the ceiling.

Is drywall a good sound barrier?

There are many reasons why you might want to create a sound barrier in your home. … While conventional drywall will help muffle sound, it won’t completely block out noise. Most drywall has a solid core made of gypsum, a mineral made of calcium sulfate that is commonly used in building projects.

Can you install resilient channel over drywall?

Hanging RC Over Existing Drywall: When adding a 2nd layer of drywall, this should be done on the other side of the wall. If the resilient channel is installed directly over drywall (rather than studs), it creates a mass-air-mass condition that greatly reduces its effectiveness.

What kind of drywall do you use for soundproofing?

There are various drywall types, but the Type X drywall is the most commonly used for soundproofing. It is a fire-resistant board, and a board of 5/8″ thickness can resist fire for an hour, which concurrently makes it the best drywall to reduce noise.

What is a good STC rating for a window?

Sound Transmission Class (STC) STC is used to measure a window’s ability to reduce sound. The higher the rating, the better the sound control. The typical rating for single pane windows is 18-20 while a double glazed window is 28-32.
