Ground-Fault Circuit Interrupters (GFCIs) are designed for your safety. Circuit interrupters, or “trips” as they are commonly referred to, are intended to reduce the risk of fire or electrocution. If they trip, it’s an indication there is a problem, and you’ll need an electrician you can trust.

Can a GFCI trip with nothing plugged in?

It is dangerous. Your GFCI keeps tripping because it wants to protect you. … Even though the outlet with the GFCI doesn’t have anything plugged into it, if an outlet downstream is connected to an appliance, a defect in that appliance could cause the GFCI to trip, depriving all the outlets in the chain of power.

Does GFCI trip before breaker?

They’ll both trip When you go to reset the receptacle, it will be dead. You will need to go down to the basement to reset the GFCI breaker, and then, the GFCI outlet will have a chance of being reset.

What will make a GFCI trip?

If the GFCI detects a ground fault leakage of 5mA it will trip. This leakage is caused by a hot wire touching the ground somewhere on the electrical line such as an appliance or even the outlet itself. This can be caused by water, wires touching, dust or debris, etc.

Will water cause GFCI to trip?

If the problem GFCI is an outdoor receptacle or an indoor outlet that was exposed to water in some way, moisture inside the receptacle box could be causing the GFCI to trip. A wet GFCI will trip regardless of what is plugged into it and may continue to trip even if there is no visible moisture inside the box.

Why does my trip switch keep tripping?

Old, damaged, or faulty electrical appliances can leak extra current, and safety switches will trip when they detect the excess flow. With heavily used appliances, wear and tear is the main reason for performance issues, so you need to maintain them properly. If a switch goes off, first try resetting it.

Can an overload trip a GFCI?

A GFCI (Ground Fault Circuit Interrupter) device only trips when there is a difference between the amount of current leaving it and the amount returning to it. … So a GFCI receptacle outlet does not trip due to an overloaded circuit.

Is there a difference between GFI and GFCI?

GFCI vs GFI. Ground fault circuit interrupters (GFCI) and ground fault interrupters (GFI) are the exact same device under slightly different names. Though GFCI is more commonly used than GFI, the terms are interchangeable.

How do you know if a GFCI outlet is bad?

1. Look for GFCIs in bathrooms, kitchens, basements, garages and on the home’s exterior. …
2. If the GFCI won’t reset or the button doesn’t pop out when you press the “test” button, there may be no power to the GFCI or you may have a bad GFCI.

Will a microwave trip a GFCI?

If your microwave is plugged into a GFCI breaker outlet and it keeps tripping, the outlet itself may be at fault. Try resetting the GFCI outlet. If the GFCI keeps tripping, there could be something else on the circuit causing the problem or you may have a faulty GFCI.

Article first time published on

How long does a GFCI outlet last?

Electrical safety check All GFCI outlets have one little-known flaw: their circuitry eventually wears out, usually after about 10 years, at which point they no longer function properly.

Can a extension cord cause GFCI to trip?

Excessive lengths of temporary wiring or long extension cords can cause ground fault leakage current to flow by captive and inductive coupling. The combined leakage current can exceed 5 ma, causing the GFCI to trip.

Why does GFCI trip during rain?

When it rains, water can make its way into the cord, cause a short and trip the breaker. Interior extension cord-Indoor extension cords ends aren’t made to be water-tight. So after a good rain, water can get in the cord and cause the tripping breaker.

How do I stop a GFCI tripping?

1. Unplug all appliances on that outlet’s circuit.
2. Push the reset button.
3. Plug in one appliance at a time until the GFCI trips. …
4. Unplug appliances that were on before the GFCI tripped and see if the last appliance that you plugged in still trips the GFCI. …
5. Replace or repair the appliance that tripped the outlet.

What happens when GFCI gets wet?

GFCI Outlet Shutoff To turn off a wet GFCI outlet manually, all you have to do is press the reset and the test button at the same time. … Water can result in an interruption that will make the outlet stop working; however, the wires that are connected to the outlet may carry a live electrical current.

How much current is needed to trip a GFCI?

It takes only 5 mA (0.005 A) of current leakage from the hot wire to the ground to cause a GFCI to trip. A small amount of leakage current may be difficult to avoid in some normal circuits.

Why would a breaker trip with no load?

The Reason Your Circuit Breaker Keeps Tripping “Without Load” … That’s because there actually is some amount of load. Unless electricity has been completely cut off from your home or building, the breaker is always working with some amount of it. For example, your television is full of capacitors.

Why does my hot water switch keep tripping?

It could be a bad thermostat, a burnt heating element, an issue with the breaker or water from a leak is touching the electrical lines. Whichever is the cause, you should contact a licensed electrician because any electrical problem with the hot water is dangerous.

Can you replace a GFCI outlet yourself?

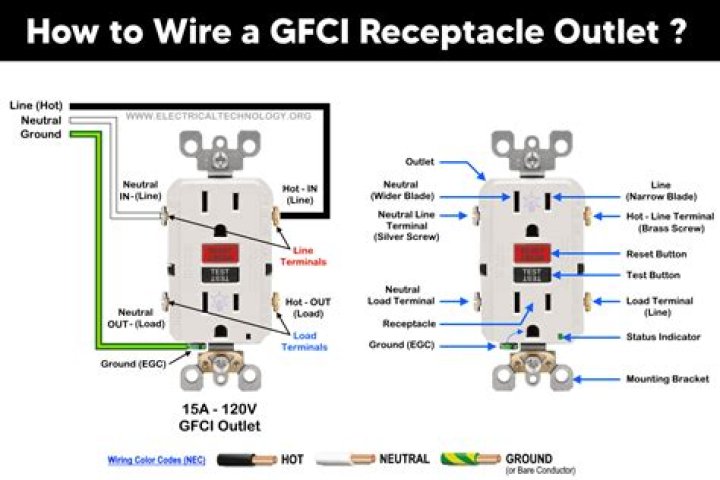

After you have removed the old outlet, you can begin replacing it with the new GFCI outlet. Using your needle nosed pliers or wire cutter, make sure the wires are straight and able to be put into the new GFCI outlet. … You only want to be rewiring your GFCI outlet into the line screws.

Should a refrigerator be on a GFCI circuit?

Residential Kitchen In a dwelling unit (residential), GFCI protection is only required for kitchen receptacles that serve the countertop surfaces. There’s no requirement to GFCI protect receptacles that serve a refrigerator. Unless the fridge is plugged into a countertop receptacle.

Can you install a GFCI without a ground?

A GFCI without ground wire isn’t ideal, but it’s better than a 2-prong outlet. A GFCI outlet will work without a ground wire and it’s legal. If the outlet shorts out for any reason, it will still trip for safety, even without ground. …

Can I plug a fridge and microwave into the same outlet?

You can’t power a refrigerator and microwave on the same circuit. … According to the 2020 version of the NEC, you can’t power a microwave and refrigerator on the same circuit because each of these appliances requires a dedicated circuit, which is one shared by no other appliances or lights.

How much current does microwave draw?

Domestic Portable ApplianceAmps UsedWatts UsedDishwasher10.02200Iron133000Microwave6.51500Vacuum cleaner9.02000

Do GFCI breakers get weak?

In fact, although they can have a lifespan of about 15 to 25 years, some GFCI’s can fail as early as 5 years. Electrical trips, also known as ground faults, can occur for the following reasons: Worn out insulation. Conductive dust or debris.

Why does a VFD trip a GFCI?

The reason the AC Drive will cause this tripping of the GFCI is the Common Mode Current or Common Mode Noise (CM Noise) that the VFD is producing. The high rate that the IGBT is switched on and off is around (1 – 16 kHz). This switching creates Common Mode Electrical Noise.

Can lightning trip a GFCI?

The intense RF energy from a nearby lightning strike can induce enough charge on the GFCI electronics to cause a nuisance trip. No, they are not intended to do this; their primary purpose is to protect human life, unlike circuit breakers or fuses, which are intended to protect equipment and far less quick or sensitive.
