Schedule 40 PVC pipe is the standard strength/thickness pipe used in most household sewer lines. … All these types of PVC pipe sections are converted into sewer lines with primer, cement and PVC couplings and generally come in 8-foot lengths.

Is DWV a Schedule 40?

DWV parts look very similar to standard white schedule 40 PVC pipe and fittings. The only real difference is that DWV PVC is not made to handle pressurized uses like schedule 40 parts are. Instead, DWV pipe and fittings are made to handle a different class of uses – Drain, Waste, and Vent (hence the name DWV).

What is the difference between schedule 40 and sewer pipe?

What is the difference between Schedule 40 PVC and Drain and Sewer PVC pipe? Drain and Sewer pipe is sized differently then the SCH40 PVC pipe. It is also lighter weight. Drain and Sewer pipe is not designed to be used for pressure applications.

What is the difference between Schedule 40 and SDR 35?

SDR will bend with the shifting and settling. Having a higher flex tolerance means less breaks from the soil conditions. Schedule 40 is so rigid that in the event the ground shifts or settles this pipe has no give. It will simply snap or break from the pressure.

Can you use Schedule 40 PVC underground?

Schedule 40 PVC Conduit is used in walls, floors and ceilings in accordance with NEC 352. According to NEC 352 it can also be buried directly into the earth, encased in concrete, and used in areas exposed to direct sunlight. … It is not designed for use above ground or in walls, floors or ceilings.

Is DWV a sewer pipe?

DWV systems remove wastewater and prevent the flow of sewer gases into homes. The most common types of pipe used in homes today are copper and polyvinyl chloride (PVC), which are strong, long lasting and easy to install. Other choices include chlorinated polyvinyl chloride (CPVC) and PEX pipe.

What does Schedule 40 pipe mean?

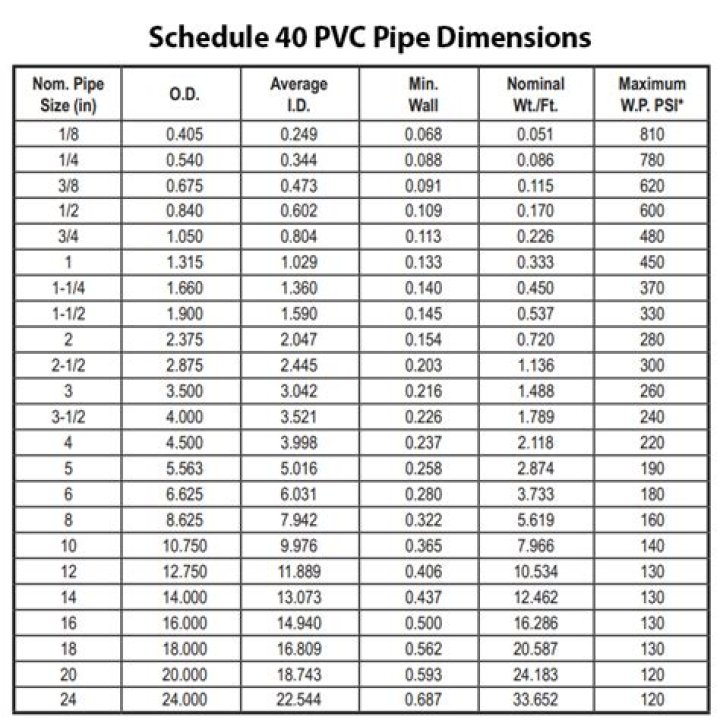

Here are a few examples of this: Pipe size 1.000” Schedule 40 – The actual wall thickness is 0.133” or 3.378 mm. Pipe size 1.000” Schedule 80 – The actual wall thickness is 0.179” or 4.547 mm. Pipe size 2.000” Schedule 40 – The actual wall thickness is 0.154” or 3.912 mm.

What schedule PVC for sink drain?

He uses thick “schedule 40” plastic (PVC or ABS) parts that are “welded” together with solvent cement for sink drain plumbing. An assembly like this will last forever, no matter how times you bash it with the wastebasket. Be sure to install a union trap and a rubber coupler so you can open the trap to clear clogs.

What schedule is PVC DWV pipe?

PVC Schedule 40 DWV Pipe & Fittings.

What does SDR 35 stand for?

Standard dimension ratio (SDR) is a method of rating a pipe’s durability against pressure. The standard dimension ratio describes the correlation between the pipe dimension and the thickness of the pipe wall. Common nominations are SDR11, SDR17 and SDR35. Pipes with a lower SDR can withstand higher pressures.

Article first time published on

What is SDR 35 sewer pipe?

PVC D 3034 sewer main pipe is for sewer and storm drainage purposes only. Used in gravity fed waste elimination systems, it is highly resistant to chemicals commonly found in sewage and industrial waste. Also known as SDR 35, PVC D 3034 sewer main pipe is available in two joining methods: casketed or solvent weld.

What is the difference between Schedule 40 and SDR 21?

As a result, the schedule 40 pipe has a thicker wall thickness than the SDR21 pipe. For pipes 2-1/2″ and smaller, it is over 150% thicker. Usually, SDR has a 4″ interior diameter, the same as schedule 40, but since the wall is thinner, the outer diameter is not the same.

Which is better schedule 40 or 80?

Schedule 80 pipe is designed with a thicker wall. This means the pipe is thicker and stronger, and as a result it can handle higher pressures. … Schedule 40 PVC pipe is strong, rigid, and can handle pressure applications. For jobs that require a higher pressurization though, schedule 80 pipe is better suited.

Is Schedule 40 or Schedule 80 stronger?

Schedule 40 pipe has thinner walls, so it is best for applications involving relatively low water pressure. Schedule 80 pipe has thicker walls and is able to withstand higher PSI (pounds per square inch). This makes it ideal for industrial and chemical applications.

How long will schedule 40 PVC pipe last underground?

Barring any crushing or displacement from external forces, and assuming the temperature being discharged down it is below 120 degrees, schedule 40 PVC should give good service for many years like 3o or more, schedule 30/34 is nearly as good but a bit more fragile. I have seen both types last in excess of 20 years.

What is Schedule 40 PVC pipe used for?

PVC Schedule 40 pipe is used for drainage and lower pressure water flow applications. Schedule 40 PVC pipe can handle up to 140 degrees F in temperature. Pipe lengths come in standard 10′ or 20′ sections.

Can you use Schedule 40 for sewer pipe?

Schedule 40 is ideal for above-ground vent lines and sewer lines in homes and has a thinner wall thickness than schedules 120 and 80.

Which PVC pipe is best for underground drainage?

SDR 35 thick-wall PVC piping is the best material for drainage system piping. Compared to the black, corrugated drain lines you’re probably used to, our thick-wall PVC doesn’t bend, sag, leak water, or get crushed.

What is the standard pipe schedule?

The two most common schedule sizes seen in buildings are Schedule 40 and Schedule 80. However, some process piping, utility facilities, and civil piping may require higher schedule numbers depending on the pressures used.

What is Schedule 10 pipe used for?

The stainless sch 10 pipe is used in water lines, commercial, domestic and industrial applications such as pulp and paper, sea water desalination, oil and gas, petroleum and heat exchanger applications.

Can you glue PVC to DWV?

Medium Clear PVC Cement: Fast drying and suitable for potable water, pressure pipe, conduit and DWV applications. It’s approved for use up to 6” in all schedules and classes of PVC pipe and fittings. … It is also formulated to hold PVC joints beneath water.

Will schedule 40 fittings fit SDR 35 pipe?

SDR 35 PIPE Used mainly in stormwater and drainage applications, SDR 35 is a medium-strength pipe that falls between Schedule 20 and Schedule 40 PVC pipe. It comes in 14′ lengths, and is compatible with the standard SDR 35 gasketed fittings, as well as Schedule 20 glue fittings.

Can you use DWV for pressure?

NOT for compressed air or gasses. 0 (zero) PSI • PVC DWV is NOT a pressure-rated piping system. Recommended test is 10 feet of hydrostatic pressure, which equals 4.3 PSI.

What is DWV fitting?

DWV Fittings are used for drain, waste and vent applications only. These fittings are not designed or tested to handle pressure. DWV fittings are used most commonly in plumbing applications where a continuous smooth media flow is very important. DWV fittings come as a glue or gasketed system.

What is DWV copper pipe?

DWV Copper Tubing Straight Lengths are designed for use in drain, waste, and vent (DWV) systems.

What does DWV stand for?

DWV stands for Drain-Waste-Vent. Your home’s Drain-Waste-Vent plumbing system is the collection of pipes that rid your home of sewage and water waste from toilets, bathtubs/showers, sinks and appliances like dishwashers and washing machines.

What is the difference between Schedule 30 and Schedule 40 PVC?

Schedule 30 is NOT to be used for pressurized systems, whereas Schedule 40 may be safe to about 150 PSI at 6 inches in diameter, up to about 300 PSI at 2 1/2 inches or less in diameter.

What is the difference between Schedule 40 PVC and regular PVC?

Schedule 40 PVC is usually white in color and has thinner walls, thus can handle less pressure than it’s counterpart. Schedule 40 PVC pipe works best for low water pressure applications. By contrast, Schedule 80 PVC is usually gray in color and has thicker walls; therefore, it can handle higher water pressures.

What is pipe dr?

The terms “standard dimension ratio” (SDR) and “dimension ratio” (DR) refer to the same ratio—i.e., the ratio of a pipe’s average outside diameter to its minimum wall thickness.

What is green sewer pipe called?

The green sewer drain pipe is used for the final underground run from a house to the municipal sewer or septic tank. It is manufactured to be compliant with “ASTM D 3034” standard and is often referred to as “3034” pipe. It is PVC, but a lighter weight than white Schedule 40 DWV (Drain-Waste-Vent) pipe.

What is stronger SDR 35 or SDR 26?

SDR 35, from a strength classification requirement for PVC pipe, requires a minimum pipe stiffness of 46 psi at 5% deflection, for SDR 26 – 115 psi, and for SDR 23.5 – 153 psi. The key to requiring a particular SDR for plastic pipe is no different than for other pipe products such as (rigid) concrete pipe.
