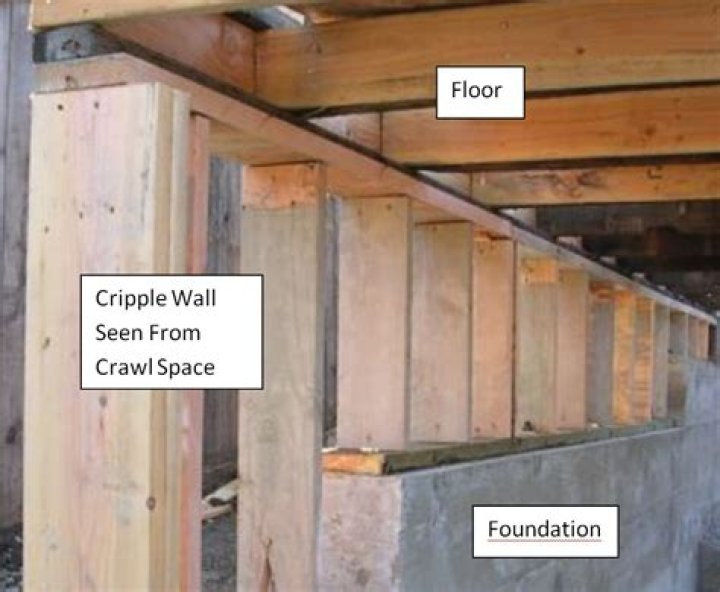

Cripple-wall houses have short (less than full-story height) wood-framed walls between the foundation and the wood-framed first floor, and a crawl space under the house. … Cripple walls are braced by nailing plywood sheathing to the inside of the walls that surround the crawlspace.

Why do they call it a cripple wall?

Cripple walls are commonly utilized in homes built on sloped hillsides. … It’s called a cripple wall because that section of the home is considered a “cripple zone” – in seismic events it was thought that homes should have an area that cripples/gives out so that the rest of the home would go undamaged.

How does a cripple wall work?

Wooden floors and stud walls are sometimes built on top of an exterior foundation to support a house and create a crawl space. These are called cripple walls and they carry the weight of the house. During an earthquake, these walls can collapse if they are not braced to resist horizontal movement.

Do all houses have cripple walls?

Almost all Bay Area houses built before 1940 (and many built more recently) have cripple walls. Cripple walls are the short wood stud walls that enclose a crawl space under the first floor. Non-retrofitted or “unbraced” cripple walls are known to be vulnerable to damage and even collapse in earthquakes.

What is cripple wall framing?

A cripple wall is typically a short wall framing positioned in a crawl space or basement that supports its structure. It usually sits on footings or a slab concrete foundation. You can bolt it to the foundation and each floor joist above. A structural engineer might refer to these wood-framed elements as shear walls.

Are cripple studs load bearing?

Cripple Studs – short studs installed above a header or below a window sill or saddle. … In addition to their load bearing function, cripple studs maintain the uniform spacing of the wall studs upon which the interior and exterior wall coverings are attached.

What is cripple in construction?

In carpentry, the term “cripple” refers to a special-purpose wall stud or roof rafter. … Cripple studs are non-structural but provide a nailing base for siding or interior wall coverings. Spaced 16 or 24 inches on center, they carry the regular wall stud layout across the framed opening.

Where do you put cripple studs?

Install a cripple stud between the header and the top plate, halfway between the king studs. Toenail the cripple stud to the top plate and the side of the header.

How do you reinforce cripple walls?

To brace a cripple wall, add horizontal or diagonal blocking between the vertical studs at the top and bottom of the cripple wall. Plywood can also be anchored to the interior face of the cripple wall, as well as to the sill plate below the foundation to increase its strength. Effectiveness: Somewhat effective.

What is let-in bracing?

Let-in braces are old-school, to say the least. Modern design uses plywood or OSB solid panels to provide lateral bracing of stick framed walls. Simpson makes a metal strap with a short right angle leg designed to be “let-in” to a saw kerf that mimics the function of a 1×4 brace.

Article first time published on

Does earthquake retrofitting work?

Properly retrofitted houses are made stronger against earthquake shaking and damage. This means your house is safer, and you’ve reduced the chance of injury or even death in a devastating earthquake. You have invested a lot of time and money into your older house.

How do earthquake spells work?

Earthquake Spells damage structures based on their maximum hitpoints. Repeated Earthquakes deal decreasing damage to the same buildings, but increasing damage to the same Walls. No wall can withstand the might of four Earthquake Spells!” This gives you an excellent idea of how the spell works.

How do you tell if your house is bolted to the foundation?

1. Go down into the crawl space – the area between the first floor and the foundation – to find out if your house is bolted to its foundation.
2. Look for the heads of anchor bolts that fasten the sill plate – the wooden board that sits directly on top of the foundation – securely to the foundation. (

What is a cripple post?

cripple stud – a stud located either above or below a framed opening, that does not run the full height of the wall. post or column − a doubled or other integral multiple of a group of studs nailed side by side. Posts in walls are used at point loads such as long spans near a wide window or sliding door, etc.

How much does it cost to bolt a foundation?

Foundation typeAverage CostBrick$2,000 – $10,000+Footing and stem wall$3,000 – $7,000Basement$3,000 – $5,000Post and Pier$3,000 – $10,000

How big is a crawl space?

A crawlspace is the narrow area between the ground and the first floor of a home. It is typically unfinished, with a dirt floor. In some cases it can be as narrow as 2-ft. x 2-ft., just enough room to crawl around inside — hence the name.

What is a rake wall?

A wall that extends to a sloped roof or ceiling is called. a rake wall and may be built one of two ways: Platform framing-Platform framing is commonly. the method of choice when a horizontal structural. element such as a floor or ceiling ties the structure.

What is the maximum spacing for 2x4 studs?

The 1995 International Code Council’s One- and Two-Family Dwell- ing Code allows studs up to 10 feet long to be spaced up to 24 inches on-center. In walls supporting only a roof and ceiling, 2×4 studs can be spaced up to 24 inches on-center, except for Utility grade (No. 3) studs.

What is a cripple in wood framing?

Cripples are vertical framing members that support a sill or saddle. They are installed at points where a common stud would have stood if not for the window opening. Cripples provide support for the window and the sill it rests on.

What is a cripple Jack Rafter?

Cripple Jack Rafter: A rafter that runs from the hip to the. valley perpendicular to the ridge. (See figures 1 and 14) Dormer Rafter: A rafter that sets on top of the main roof without cutting into the main roof.

How many jack studs are required?

SIZE OF OPENING (feet-inches)24-INCH O.C. STUD SPACING16-INCH O.C. STUD SPACINGNo. of jack studsNo. of king studsUp to 3′-6″11> 3′-6″ to 5′-0″12> 5′-0″ to 5′-6″12

What foundation is best for earthquakes?

Brick and concrete buildings have low ductility and therefore absorb very little energy. This makes them especially vulnerable in even minor earthquakes. Buildings constructed of steel-reinforced concrete, on the other hand, perform much better because the embedded steel increases the ductility of the material.

Is slab or raised foundation better?

If the building site has problematic soil, such as expansive clays, a raised floor foundation would perform much better than slab, as slab would most likely crack on this type of soil. … A slab foundation is easier to construct when the grade of the build site is very low, meaning that there is little to no slope.

How are homes attached to foundation?

The sill plate is the first portion of framing that sits right on top of the concrete, which is the part that needs to be drilled for anchor bolts that attach the house to the concrete foundation. The studs are attached to the sill plate. … Studs are the vertical walls — the “normal” walls of the house.

What is cripple header?

Cripples are short pieces of 2x stock that run underneath the saddle. And, depending on a header’s height, cripples can run from the header to the plate. Cripples are located at the points where a common stud would have been located had it not been interrupted by the opening.

What is the bottom plate?

A Bottom Plate is the piece of timber which sits on the floor and forms the bottom of the wall, carrying the stud loads to the floor joists.

What is diagonal bracing?

Definition of diagonal bracing : a member of a wooden case or crate placed at an angle to adjacent members to add strength.

How do I know if my home is retrofitted?

Using the Department of Building and Safety website, you can easily check to see if your building is on that list. Just enter your address into the search tool and click on the “Soft-story Retrofit Program Information” button once your building’s information appears.

How long does a retrofit last?

You can learn more about retrofitting and soft – story retrofit in our previous article. However, on average a project can last from 4 to 12 weeks, after receiving a client’s permits and plans, depending on the scope of work.

How can you tell if a house is earthquake resistant?

Needless to mention that old and taller structures are at a higher risk. An easy way to know if your house is earthquake resistant is to call an engineer and get checked if the foundations of your home are weak (unbraced) and if the walls are crippled.
