What are flange pipe fittings? Used for connecting pipes, pumps, valves and other piping system equipment, flange pipe fittings are usually screwed together, and a flanged joint is created when one flange is bolted to another with the gasket between them creating a seal.

What is a galvanized floor flange used for?

Product Description Their purpose is to help secure pipes onto your floor or wall. The female thread found on them creates a secure support for any male threaded pipe that is to be screwed into it. Floor flanges have four bolt holes so that one can securely fasten and screw onto any solid surface.

What are the types of flange?

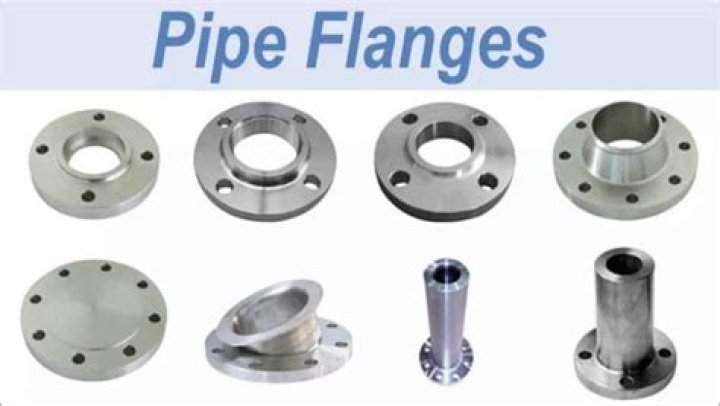

Most commonly used flanges are weld neck flange, slip on flange, blind flange, socket weld flange, threaded flange and lap joint flange (RTJ Flange). This type of connection in a pipe flange allows for ease of disassembly and separation for repair and regular maintenance.

Can flexible gas line go through floor?

Three- or six-foot long and accessible: The flexible connectors can’t go through walls, floors or ceilings, nor can they be concealed. The flexible connector length usually is limited to 3 feet except for gas ranges and clothes dryers.

What is the purpose of a flange?

Flanges are used to connect pipes with each other, to valves, to fittings, and to specialty items such as strainers and pressure vessels. A cover plate can be connected to create a “blind flange”. Flanges are joined by bolting, and sealing is often completed with the use of gaskets or other methods.

What is a black iron floor flange used for?

Flanges allow for a secure piping connection to either the floor or wall. General uses for this product are for transporting lubricant, oil, grease, LP gases and fuel or to create your own DIY projects.

How many types of flanges are there?

The key types of flanges are the welding neck, long welding neck, slip-on, socket weld, lap joint, threaded and blind flanges. In addition to these standard flanges, some special ones exist, called Weldoflange/Nipoflange and Elboflange, swivel flange, expander/reducer flange, and orifice flanges.

How much length does a pipe flange add?

The distance between the fittings and the extra reach must be included in the length. If you are using 1/2 inch pipe, add 7/16 inch per end and 1/2 inch per end.

What are galvanized pipes?

Galvanized pipes are steel pipes that have been dipped in a protective zinc coating to prevent corrosion and rust. Galvanized piping was commonly installed in homes built before 1960. When it was invented, galvanized pipe was an alternative to lead pipe for water supply lines.

Is it better to put wax ring on toilet or flange?

Installing a flange extender or using an extra-thick wax ring will work much better in the long run. Place the wax ring on the closet flange, not on the toilet.

Article first time published on

Are toilet flanges glued?

In addition to being glued to the waste pipe, toilet flanges are typically attached to the bathroom subfloor with screws. Often, there are four screws that attach the flange to the subfloor.

Does toilet flange go inside or outside pipe?

Install a toilet flange on the outside. This can be done with a hammer and chisel. If the flange is cast iron with a rubber gasket, you should be able to remove the cast iron with a hammer and chisel, remove the rubber gasket with a sharp knife, then replace the gasket and the flange.

Can I use PEX for gas line?

Yes you can, but because the terms PE and PEX have so often been used interchangeably it’s important to specify your intended use before purchasing polyethylene pipe for your project.

Can you run gas line through floor joists?

1 Answer. Piping run concealed in finished spaces has to be installed through the joists and protected from physical damage. Or be run in black or galvanized steel. Or you could box the pipe run and shield it.

Which pipe is best for gas lines?

CSST tubing, or corrugated stainless steel tubing, is good for installing gas appliances. These corrugated pipes can bend around corners reducing the number of joints and fittings. Easier to work with than steel pipe and weighs a lot less.

What are the two main types of flanges?

We usually consider two main families of flanges, the standard flanges and the special ones.

How do you identify a flange?

You need to find the outer diameter, the inner diameter, the number of bolt holes, bolt hole diameter, and the bolt circle diameter. Bolt circle diameter (B.C.) is one of the most important measurements to make when identifying a flange.

What is flange material?

The most common materials for pipe flanges (forged grades) are: ASTM A105 (carbon steel high temperature to match A53/A106/API 5L pipes), A350 Grades LF1/2/3 (carbon steel low temperature to match A333 pipes), A694 Grades F42 to F80 (high yield carbon steel to match API 5L pipe grades), ASTM A182 Grades F5 to F91 ( …

What is a flange on a tub?

The flange is meant to collect moisture, which gravity draws down the wall, and prevent it from ending up in the wall cavity. A properly built enclosure will have a moisture barrier or roofing felt or plastic sheeting drape over this flange before the wall material is installed.

What is threaded flange?

Threaded flanges, also sometimes referred to as companion flanges / screw flanges / NPT flanges, contain a female NPT thread in the center for connection to male NPT threaded piping. … The male pipe end is joined to the flange without a weld connection required but can be sealed with a weld if necessary.

What is flange and web?

The upright portion carrying the tension of the beam is termed a web or stem, and the horizontal part that carries the compression is termed a flange.

Which type of flange is used in high pressure services?

Ring Joint Face (RTJ): Used in high-pressure and high-temperature processes, this face type features a groove in which a metal gasket sits to maintain the seal. Tongue and Groove (T&G): These flanges feature matching grooves and raised sections.

What is RF in flange?

Raised Face Flanges (RF) The Raised Face Flange is the most common type used in process plant applications, and can be easily identified. It is referred to as a face raised because the surfaces of the gasket are positioned above the face of the bolting circle.

What is pad type flange?

Studding Outlet Flanges are usually designed to be installed in the inside or outside of vessels and tanks. … A common alternative name for studding outlets is “pad flange.” To clarify, the pad flange and the studding outlet are the same part and pad flanges are not a variation of studding outlet.

How can you tell if a pipe is galvanized?

Just find an area of exposed pipe and scratch it with a nickel or screwdriver to reveal its true color. If looks like a penny, you have copper piping. If it looks metallic gray, you probably have galvanized steel or iron pipes.

What is PEX plumbing?

PEX plumbing is a type of plastic tubing made from high-density polyethylene. Apart from being the newest player in the water supply line game, PEX is also used for radiant floor heating tubing. PEX plumbing has many advantages, including: … Acid-resistant – Unlike copper, PEX can withstand acidic water.

What year did they stop using galvanized plumbing?

While lead was no longer used in the service lines as of the 1960’s, galvanized pipes were still used as late as 1990. Even without the lead hazard, the corrosion caused by these pipes could build up in your water supply.

Should toilet flange be even with finished floor?

When you install your toilet flange, it should be installed on top of the finished floor, and it should also be installed perfectly level. If your flange sits even or below the floor, then it’s wrong. It has to sit evenly on top of the finished floor. … As a result, the toilet may wobble or leak at the base.

Should toilet flange be on top of tile?

The toilet flange needs to be on top of the finished floor. Meaning the bottom edge of the flange needs to be on the same plane as the toilet. So if your toilet sits on the tile, the flange needs to be on top of the tile too. The spacing of the toilet exit “horn” and sealing surface is designed for this height.

Should you tile under toilet?

The bathroom fitters are unanimous—if you’re looking for a high quality finish, with a better seal against water damage, then always tile the floor first. … The floor will be sealed a lot better with the tiles being laid under the toilet. 2. It is also easier to do this rather than trying to cut tiles around the toilet.

How do you tighten a flange on a pipe?

Start the tightening procedure by lubricating the nuts and bolts. Then hand tighten till they are snug against the flanges. If an air wrench is used make sure the pressure is set to the minimum. When tightening, always use the correct sequential bolt order for the flange.
