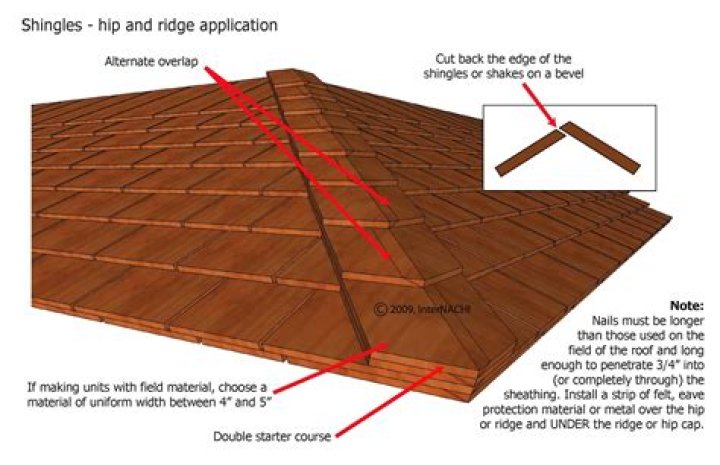

Ridges: the horizontal lines at the top edge of two sloping roof planes. Hips: the verticle lines from two adjoined sloping roof planes. What these two have in common is that the shingle does not lay flat.

What is the top ridge of a roof called?

• Ridge: The peak of your roof is the ridge. …
• Eaves: The eaves are the lower edges of the roof that overhang the home’s exterior walls. …
• Gable: The A-shaped side wall of the home that forms the peak of the roof is called the Gable. …
• Rake: The rake of the roof is the part that ends over a gable end.

What is the purpose of ridge caps on a roof?

What Is a Ridge Cap? Ridge cap is a special shingle that was designed for the harsh wind that hits the ridge of a roof. A ridge cap will not only be thicker than a regular shingle, they are also pre-bent. A cheap roofer will try and use 3-tab shingles which will crack over time due to the bend.

What is the purpose of a ridge?

Ridge BeamRidge BoardStructural supports the ridge or peak of the roof and holds up the raftersAn aid for placing and connecting opposing rafters and framing the roofMore stable and much stronger roof support, allowing for longer rafter spansQuicker and easier to install

Are ridge shingles different?

Ridge cap shingles are like regular shingles in that they use the same material and offer the same look in terms of color; but they are different in that they are specially designed to cover the ridges of the roof, which are high-stress areas that need more protection, unlike with metal roofing.

What are those things on top of roofs?

Snow guards or snow brackets are roof-mounted metal “spikes” installed by your roofing contractor and designed to hold large amounts of snow in place and prevent them from falling in one big chunk. For areas prone to heavy snowfall, snow brackets can be an extremely useful addition.

What type of roof has no exposed ends?

What is a Hip Roof? A hip roof has no vertical ends. It is sloped on all sides, with the slopes meeting in a peak (if the structure is square). Or with the ends sloped inward toward a ridge formed by the adjacent sides (if the structure is rectangular).

What is the ridge of a house?

Getting a little more technical, the National Roofing Contractors Association defines the ridge as the “highest point on a roof, represented by a horizontal line where two roof areas intersect, running the length of the area.” So the ridge is basically the peak of a roof, but ridge also refers to the board or beam that …

What is a roof valley?

A roof valley is formed where two roof slopes meet. Water collects in a valley to flow off the roof. Your choice of valley installation method is critical because, when improperly installed, valleys are risks for serious leaks. Essentially, there are three main ways to shingle a roof valley: woven, closed-cut and open.

Is a ridge board structural?

A ridge board is a non-structural member that serves as a prop for opposing rafters to rest against and connect to. Ridge boards can only be used in roofs with slopes from 3 in 12 up to 12 in 12.

Article first time published on

What is the strongest part of a roof?

Homeowners should step on the strongest part of the roof, which is the crown, or the highest point, of rounded tiles. Flat tiles are strongest at the point of the overlap.

Are trusses better than rafters?

Once in place, rafters use up more wood, so they weigh more, but trusses are stronger because they are more efficient and have the capacity to produce maximum strength using fewer materials in the end.

Are ridge shingles necessary?

Good Roofing Ridge Caps Are Critical Since so much water flows through the roof valleys, they must be protected by extensive roof flashing networks to keep your roof dry and leak-free. With the peaks, a special covering called a ridge cap must be used.

Are ridge vents important?

Ridge vents run the length of your roof at its peak. These vents allow air to circulate under the roof to prevent the buildup of moisture. A ridge vent can blend in with your shingle or metal roofing so that it is not noticeable.

How long are ridge cap shingles?

Ridge cap – or roof peak – shingles for standard asphalt shingles, whether standard 3-tab or architectural, are usually around 12×12 inches in size. Often the top of the shingle, which is the part that is not visible, is tapered so that it is completely covered by the previous roof peak shingle.

What is ridge roll?

Definition of ridge roll : a metal, tile, or wood strip rounded at the top and used as finishing for the ridge of a roof.

What is the best roof for a house?

Asphalt Roofing Shingles Relatively lightweight, inexpensive, and easy to install, asphalt shingles are the best choice for most houses. They come in sheets that are layered on a roof to give the illusion of more expensive single shingles, such as cedar and slate, that are installed one shingle at a time.

What is the cheapest roof style?

Generally, a gable-style roof with asphalt roofing shingles is one of the most affordable roofs you can build on a residential home. Asphalt shingles typically cost $150-$400 per square foot, excluding installation costs. Simplifying your roof design and lowering its pitch can also help you save money.

What are the 4 types of roofs?

• Gable Roof. This roof type is known for its distinguishable triangular shape feature. …
• Mansard Roof. This roof type was adapted from the French and has a much steeper lower slope. …
• Flat Roof. This roof type may not be entirely flat but have a low-sloped pitch that makes them appear flat. …
• Hip Roof.

What are facets on a roof?

A facet is one section (plane or surface) of a multi-sectioned roof that is over 4 square feet.

What's the thing on the roof called?

The entire roof frame is covered in a thin piece of wood called decking or roof sheathing. Roof sheathing material is usually plywood or oriented strand board (OSB) that is just under half an inch.

What is rake on a roof?

Instead, the rake refers to the sloped sides of a gable style roof. This type of roof is one of the most common in colder or temperate climates, and consists of two roof sections sloping in opposite directions from the peak to allow for the best flow of precipitation off the roof.

What are the different types of roof valleys?

There are three main types of roof valleys — cut, weaved and exposed metal.

Are metal valleys better?

The valleys see the most water flow, as water from both surfaces gathers in the valley as it runs down. … Metal flashing, which is most often used, also helps the water move more quickly off the roof, and even the occasional snow. Of course, it’s also water impermeable, for superior performance.

Do ridge vents leak?

With proper installation and care, ridge vents should not leak. However, improper installation leads to leaky vents. … When a shoddy or inexperienced contractor fails to overlap the pieces or doesn’t extend the sections enough, the vents will eventually leak.

How does a ridge board work?

A ridge board connects the upper ends of the rafters forming the apex of the triangle. Typically, a ceiling joist spanning from opposite exterior walls connects the lower ends of the rafters together, forming the base and completing the triangle.

Can you join a ridge beam?

A ridge board or beam runs through the tops of rafters or trusses from end to end along a gable roof, tying those framing members together. The rafters bear most of the weight of the roof; the ridge board holds them in place. … But sometimes a roof is too long for a single ridge board; then a splice is in order.

Are gutters considered part of the roof?

Rain gutters and downspouts are vital parts of your roof system.

What is under shingles on a roof?

What Is Roofing Underlayment? Roofing underlayment is what lies between the shingles and the roof sheathing, or roof deck, which is typically either plywood or OSB. It’s installed directly on the roof deck and provides a secondary layer of protection from the elements, including rain, snow, and wind.

What do you call the ceiling outside the house?

An eave is the part of the roof that hangs over the side of the home. Otherwise known as an overhang, eaves are designed to push water clear of the siding.

Is it cheaper to use trusses or rafters?

Price: When the cost of a prefabricated truss package is compared to the material and labor costs to build rafters on site, the cost of trusses is 30% to 50% less.
