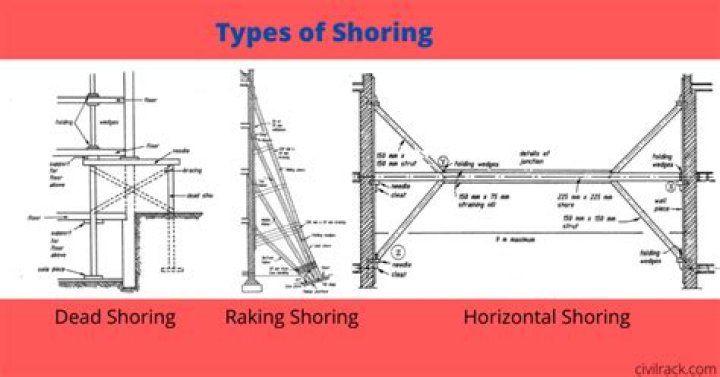

H and I-beam shoring. … Secant pile shoring. … Contiguous pile shoring. … Sheet piles. … Diaphragm walls. … Raking shoring. … Hydraulic shoring. … Soil nail shoring.

What is foundation shoring?

Shoring is lateral support for an unsafe structure that is constructed for temporary support. These support a wall laterally. Shoring are used under the following conditions: … When we have to repair a crack on the wall due to unequal settlement of foundation. When an adjacent structure is to be dismantled.

What is the purpose of diaphragm wall?

Diaphragm walls are underground structural elements commonly used as retention systems and permanent foundation walls. They can also be used as groundwater barriers.

How are soldier piles installed?

Soldier Piles are steel H piles that are vertically driven or drilled into the earth at regular intervals prior to excavation. As excavation progresses in stages, horizontal lagging in the form of timber or precast concrete is added behind the flanges to create the Soldier Pile and Lagging Wall.

What does shoring mean in construction?

Shoring is the process of temporarily supporting a building, vessel, structure, or trench with shores (props) when in danger of collapse or during repairs or alterations. Shoring comes from shore, a timber or metal prop.

How do you use a sheet pile?

1. Arrange the sheets in sections to check if the piles will interlock correctly or not.
2. Hammer the first sheet to the defined depth as per the design.
3. Use vibratory hammers for installation, but use impact hammers if the soil is hard or dense.

How is shoring done?

The process begins with digging into the earth, the depth depends on how many floors of underground parking is proposed for the building. Once the digging is complete, the shore is lowered into the ground. The shore, or prop, is made of concrete and is the first layer of building material.

What is lagging in shoring?

Lagging and Shoring Soldier piles are placed prior to excavation. … The wood Lagging is placed behind the front piles as the excavation continues. The lagging efficiently resists the load of the retained soil and transfers it to the piles. The walls can be designed as temporary walls or permanent walls.

Are soldier piles permanent?

Soldier pile walls provide a core system for earth retention in both temporary and permanent applications.

What are lagging walls?

Earth retention King post/soldier piles and lagging walls are a cost effective system of temporary or permanent retaining wall using beams and pre-cast concrete panels.

Article first time published on

Why bentonite is used in piling?

Bentonite slurries are known to perform the following pivotal functions: a) Support the excavation by exerting hydrostatic pressure on its walls i.e. to prevent the collapse or retain an area. b) Remain in the excavation, and not flow to any great extent into the soil thereby acting as a sealant.

What is the D wall?

A diaphragm wall (D-wall) is a reinforced concrete structure constructed in situ panel by panel. In the basement market D-walls are often used on congested sites, close to existing structures where the excavation depth and ground conditions would prove problematic for piled walls.

Why is bentonite used in diaphragm walls?

A diaphragm wall (slurry wall) is a reinforced cast-in-place continuous concrete wall. The construction includes the excavation of a trench under the protection of a support suspension (i.e. a thixotropic slurry such as bentonite mud for example) designed to temporarily stabilize the trench wall.

What is underpinning and shoring?

The arrangement employed to prevent a damaged structure, due to either foundation settlement or other reasons from collapse, is called shoring. Shoring and underpinning. The arrangement employed to prevent a damaged structure, due to either foundation settlement or other reasons from collapse, is called shoring.

What are trench boxes used for?

A trench box is also known as a trench shield, sewer box, manhole box, or a tap box. It is used in the construction work. It provides stability to a trench and keeps the utility workers safe while they carry out their duties. It is a two sided support system used in a mechanical excavation.

What does shoring mean in business?

Right-shoring is the placement of a business’s components and processes in localities and countries that provide the best combination of cost and efficiency. … When considering a right-shoring strategy, manufacturers need to determine how to adjust their supply chain operation and maintain or improve competitiveness.

What are the main objects for shoring?

• Rakers or inclined member.
• Wall plate.
• Needles.
• Cleats.
• Bracing.
• Sole plate.

What is shuttering in civil engineering?

Shuttering is known as a temporary mould into which concrete is poured to obtain the desired structural shape on the construction site. Shuttering is the most popular type of formwork used on construction sites.

How deep do sheet piles go?

Cantilevered sheet pile wall is one of the most famous flexible retaining structures that usually used secures deep excavation down to about 5.0m, it could be constructed using steel profiles or tangent piles (driven pre-cast or board piles).

What is a fender pile?

fender pile. noun. an upright, usually freestanding, pile driven into the sea bed or a riverbed beside a berth to protect the dock wall or wharf from the impact of vessels.

What is friction pile?

Friction piles are a type of underground piling system used to create a strong foundation for large, heavy structures such as stadiums, bridges and roads that could not otherwise be supported by the topsoil.

What is Soldier pile shoring?

A soldier pile wall is a a “top-down” retaining wall consisting of vertical steel piles, wood lagging, and anchors as required. … Soldier piles are the most common shoring system used for excavations in dense downtown areas. Soldier piles were the original excavation shoring system.

How many types of piles are there?

Piles are divided into two categories- internal piles and external piles. External piles, on the other hand, occur close to the anus below the anal canal. They too can be painful if blood clots inside the lumps.

How are Secant piles installed?

The secant piles are reinforced with either steel rebar or with steel beams and are constructed by augering. Primary piles are installed first with secondary piles constructed in between primary piles once the latter gain sufficient strength. Pile overlap is typically in the order of 8 cm.

What is shotcrete wall?

What is Shotcrete? Frequently used in underground applications, shotcrete is a wet- or dry-mix concrete that is pneumatically propelled at high velocity through a hose and nozzle. It does not require conventional forming and is an economical solution for the time and related costs it saves.

What is timber shoring?

Timber and aluminum shoring systems are designed to protect workers by pressing against the face of the trench and preventing the cavein from occurring in the first place. To do this, OSHA has devised tables that determine the most effective shoring configurations.

Can Plywood be used for shoring?

However, plywood can be used to contain raveled soil and to transfer the loads imposed by this soil to the load carrying members. … Regarding the general application of plywood as a sheeting member for shoring and support systems in trenches and excavations, please see paragraph 1926.652(c)(3) or (4), Option (3) or (4).

What is sheeting and shoring?

Sheeting and shoring are typically used at construction sites in order to provide temporary support of soil and existing structures. … Sheeting consists of complete systems of shoring driven or vibrated into the soil with no lagging required.

What is Secant piles?

Secant pile walls are created by drilling or augering a series of overlapping concrete piles reinforced with steel beams or rebar to form a wall. After the initial piles are installed and gain sufficient strength, the secondary piles are installed in between the initial piles to create a continuous and impervious wall.

What is sheet pile foundation?

Sheet pile walls are thin retaining walls constructed to retain earth, water, or any other fill material. They are typically thinner than masonry or reinforced concrete retaining walls such as cantilever retaining walls and can be constructed using materials such as steel, concrete, or timber.

What is the pH of bentonite?

The typical pH of Ca-bentonite suspensions ranges from 7 to 8 in contrast to Na-bentonites with pH values ranging from 9 to 10.
